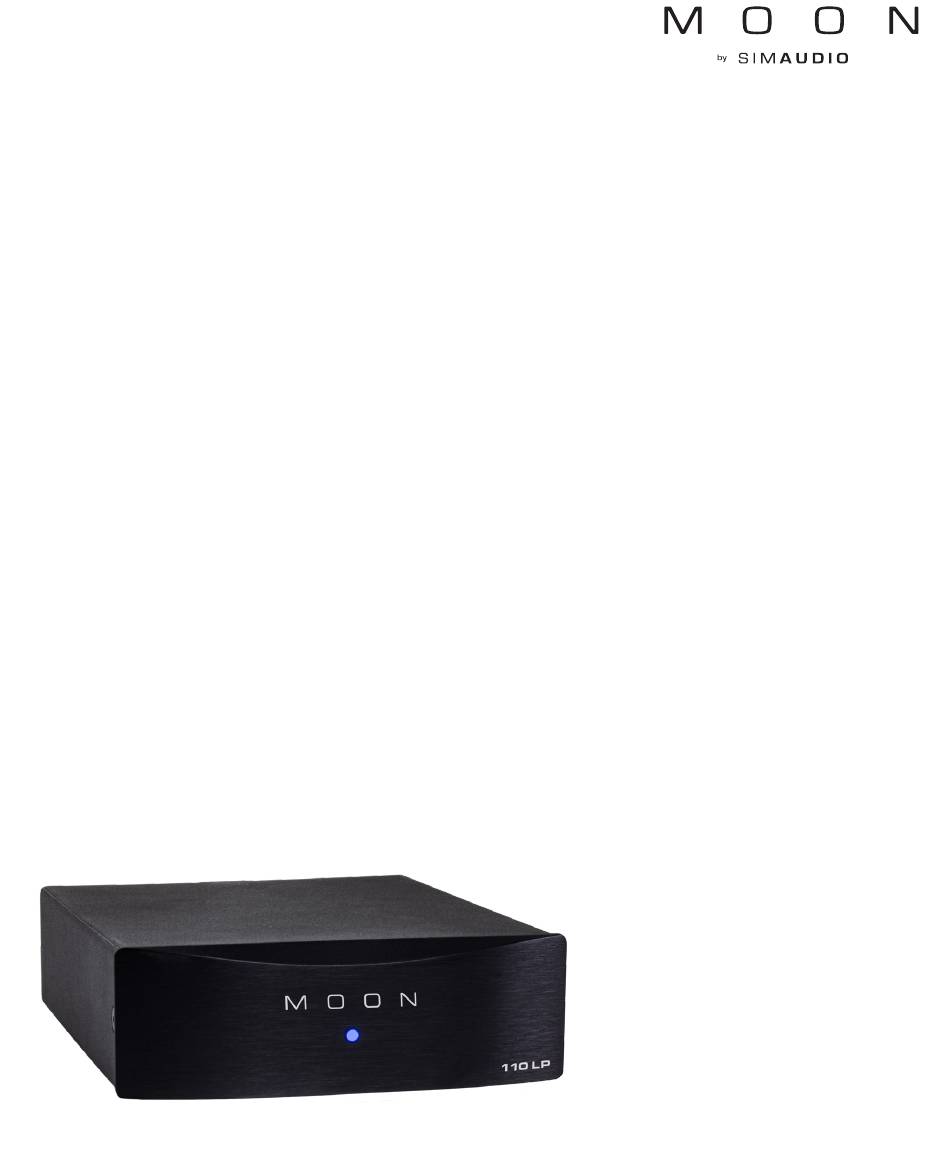

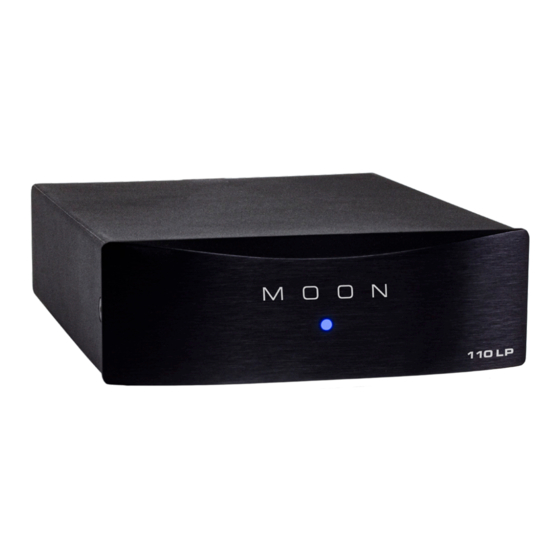

- Page 1 The performance of a lifetime Owner’s Manual MOON 110LP v2 Phono Preamplifier...
- Page 2 M O O N b y S i m a u d i o simaudio.com Simaudio Ltd 1345 Newton Road, Boucherville, Québec J4B 5H2 CANADA Date Code: 20180831...
-
Page 3: Table Of Contents
INTRODUCTION DESIGN FEATURES UNPACKING INSTALLATION & PLACEMENT REAR PANEL CONNECTIONS INPUT SETTINGS FOR CARTRIDGE ADJUSTMENTS SPECIFICATIONS... -
Page 4: Introduction
M O O N b y S i m a u d i o Introduction Thank you for selecting the MOON 110LP v2 Phono Preamplifier as a part of your music system. This component has been designed to offer state-of-the-art... -
Page 5: Design Features
Design Features Your MOON 110LP v2 Phono Preamplifier incorporates many significant design features to achieve its “world class” level of performance. This is an abbreviated list of the most important features: End-user adjustable impedance loading (47kΩ, 475Ω, 100Ω, 10Ω); End-user adjustable capacitance loading (0pF, 100pF, 330pF, 430pF);... -
Page 6: Unpacking
You should never place another component directly on top of this phono preamplifier. The MOON 110LP v2 is more sensitive than most other types of audio components to EMI (electro-magnetic interference) from power supplies and motors. Consequently, it should... -
Page 7: Rear Panel Connections
Rear Panel Connections Figure 1: MOON 110LP v2 back panel Connect the turntable output cables to the left and right input connectors of the MOON 110LP v2. Connect the turntable ground cable to the post labeled GND on the MOON 110LP v2. -
Page 8: Input Settings For Cartridge Adjustments
M O O N b y S i m a u d i o Input Settings for cartridge adjustments Always power off the unit (by unplugging Basic rule of thumb for typical MM cartridges the power supply) before making any change (default factory setting) : of input settings via the bottom accessible Gain : 40dB... -
Page 9: Specifications
Specifications Circuit Layout Mirror-image symmetrical circuit Single-ended inputs 1 pair (RCA) Input Impedance - Adjustable 10Ω / 100Ω / 475Ω / 47kΩ Input Capacitance - Adjustable 0 / 100pF / 330pF / 430pF Gain Level – Adjustable 40dB / 50dB / 54dB / 60dB / 66dB Curve IEC / RIAA Signal-to-noise Ratio (full scale @40dB gain) - Page 10 Simaudio Ltd 1345 Newton Rd Boucherville, Quebec, J4B 5H2 CANADA T. 450 449-2212...
