accidental contact with the flue outlet of
an underbench oven or any other hot
surface of an adjacent appliance.
Regulator
The regulator must be positioned that
the pressure test nipple is accessible
when the appliance is installed. Connect
the gas supply to the ½ B.S.P. internal
thread inlet of the regulator. Refer to
worktop cut out for connection point
position.

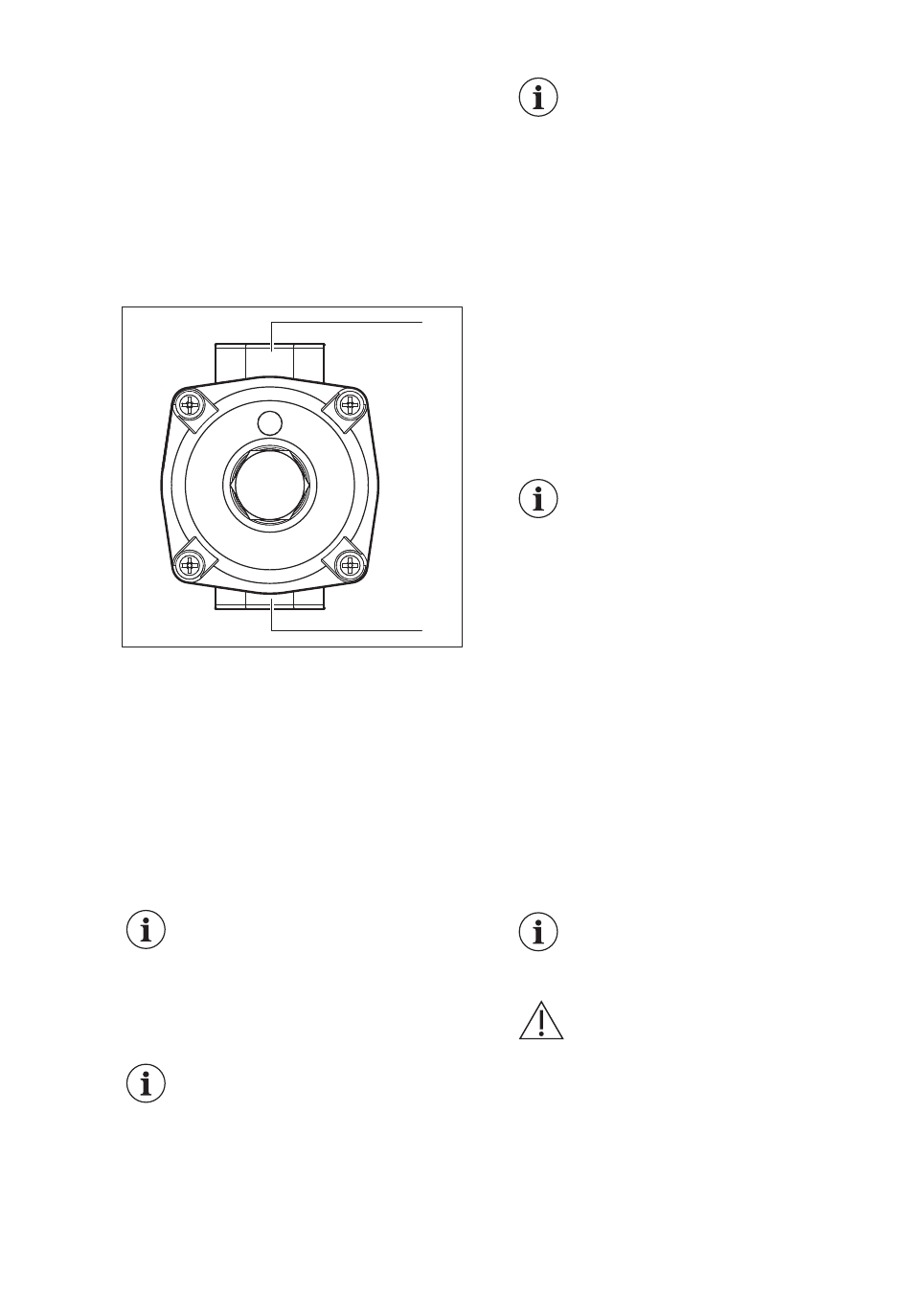

A. Outlet
B. Inlet
Assembly of regulator
The ½" tapered thread connects to the
outlet of the regulator, and is sealed on
the thread. Use thread sealing tape or
thread sealing compound.
The inlet of the regulator is a ½" parallel
thread and is connected to consumer
piping or hose assembly.
The regulators are
configured for use with
Natural Gas. It is not
required to adjust the
regulator to obtain correct
outlet pressure setting.
When the inlet and outlet is
orientated correctly the
arrow on the base of the
regulator indicates the
direction of gas flow.
Checking the gas supply
It takes additional time to
light the gas for the first
time. Air is purged from the
pipes.
1. Check the manometer zero point is
correct.
2. Connect the manometer to the
cooktop pressure point. It is located
on the regulator.
3. Turn on the gas supply and
electricity, and try to ignite the gas.
A
4. While the appliance operates check
the outlet pressure:
• when all burners of the appliance
operate at maximum,
• when the smallest burner of the
appliance operates at minimum.
The outlet pressure should
not vary from the nominal
outlet pressure of 1.00kPa by
more than +/–0.20kPa.
Checking the regulator
If the regulator works incorrectly:
B
• Adjust of upstream regulator if the
outlet and inlet pressure is too low or
an upstream regulator or valve with
insufficient flow capacity is present in
the gas supply line.
Check again the inlet and outlet
pressure, the inlet pressure needs to
be 1.13 - 5kPa.
• Check if the inlet and outlet is
orientated correctly the arrow on the
base of the regulator indicates the
direction of gas flow.
If the regulator still does not
work correctly contact the
After Sales Service.
WARNING!
Check if the hose assembly
is restrained from accidental
contact with the flue outlet
of an oven or any other hot
surface of an adjacent
appliance.
