made by

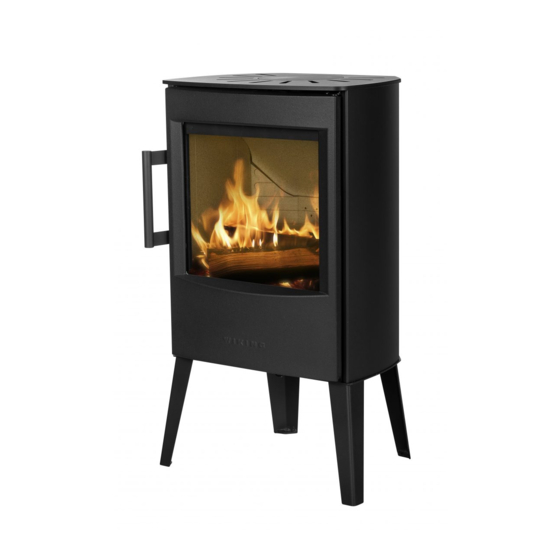

WIKING Mini 2
GB
Installation and User Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 8
20 . 1 1 .2017 / 53-0772

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for wiking Mini 2

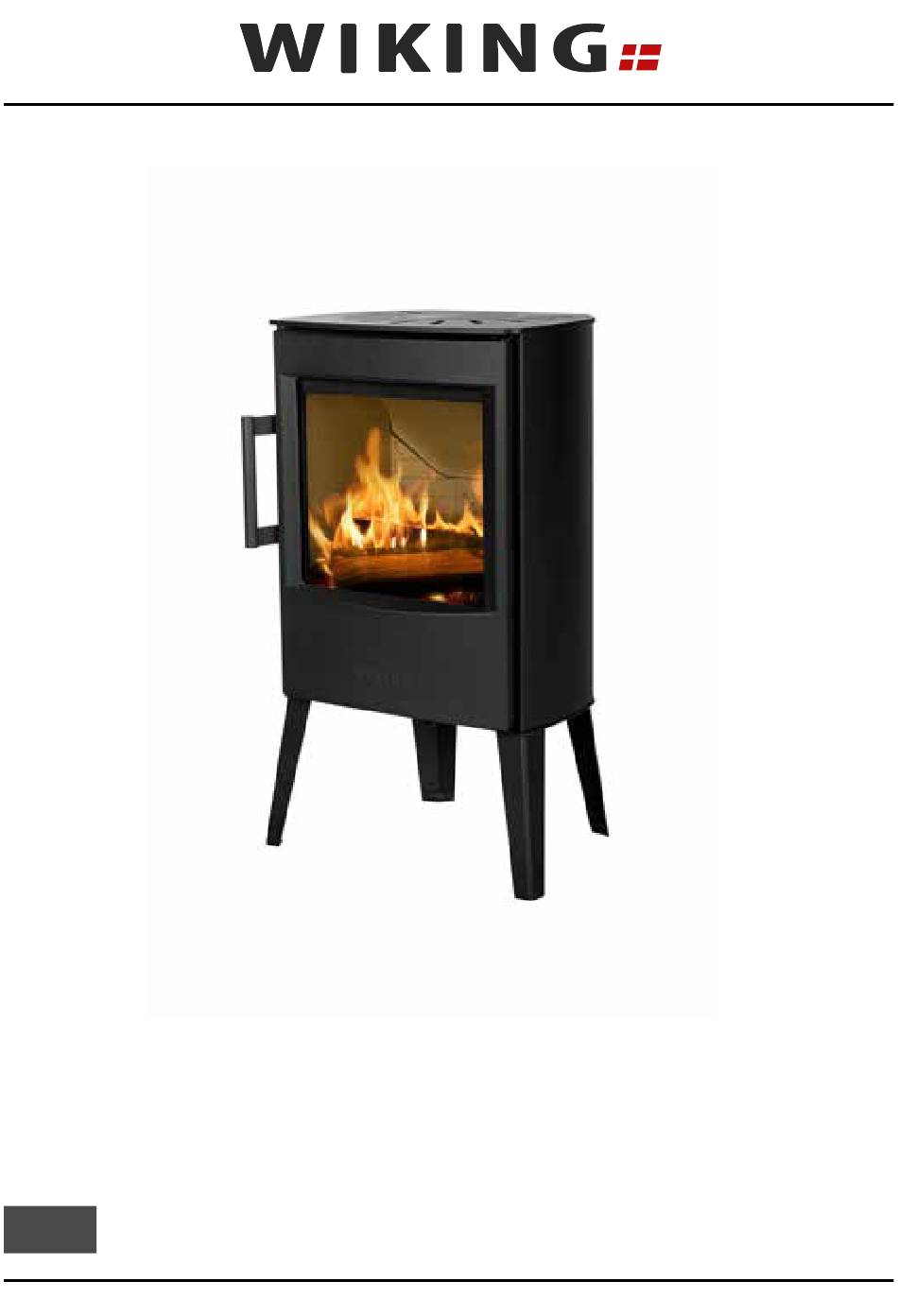

  • Page 1 WIKING Mini 2 Installation and User Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 8...
  • Page 5: Table Of Contents

    Lighting and Firing your WIKING Wood-Burning Stove ....... . .
  • Page 6: Welcome

    WIKING Automatic when the fire is started and when restoking. You get more warmth for the wood you add, and in turn, better heating economy . WIKING Mini is both effective and attractively designed, and will bring you great pleasure for years to come .
  • Page 7: For Uk -The Clean Air Act 1993 And Smoke Control Areas

    Clean Air Act requirements . The WIKING Mini stoves detailed below have been recommended as suitable for use in smoke control areas when burning wood logs. The appliance has been fitted with a modified second- ary air control (to prevent closure beyond the 26% open position) .
  • Page 8: Installation Instructions

    Installation Instructions Before You Start (Figure A) Figure A is a cross-sectional view of your wood-burning stove . Here you can gain an overview of the parts of which your stove consists . Steel smoke deflector. Vermiculite smoke deflector. Vermiculite rear plate . Vermiculite corner plate .
  • Page 9 . Always follow the instructions of the manual carefully and make sure that the installation is carried out by a qualified professional. WIKING packaging material should always be handled in accordance with the local rules for waste handling .
  • Page 10 Distance to Inflammable Materials In the table below you can see the minimum distance to the closest combustible and non- combustible walls . Uninsulated flue gas pipe WIKING Mini 2 WIKING Mini 2 WIKING Mini 2 with a base with short legs...
  • Page 11 Floor directly beneath the stove with 20 mm base does not exceed 65K or 100°C Height Requirements The WIKING Mini has a smoke outlet at the top and at the back . It can be installed with an approved smoke pipe and a steel chimney, or connected to a brick chimney with a fullform smoke pipe .
  • Page 12: User Instructions

    . Firing with Coal or Coke The WIKING Mini is not approved for firing with coal and coke. Storing Wood Water content of maximum 18% is achieved by storing the wood for at least one year - prefer- ably two years - outdoors, beneath a shed roof .
  • Page 13: Using The Air Damper

    Using the Air Damper To achieve good combustion, which results in better heating efficiency, it is important to add the right amount of air to the fire. Air is regulated with a user-friendly, one-lever system that is located under the stove door; see Figure B . When lighting a cold stove and when fuellingwith new wood, the regulating lever must be pushed to the extreme left to give the fire maximum air supply.
  • Page 14: Lighting And Firing Your Wiking Wood-Burning Stove

    Lighting and Firing your WIKING Wood-Burning Stove The First Firing The first time you fire your wood-burning stove, you must do so carefully, as all materials need to adjust to the heat .
  • Page 15: Some Things Worth Knowing About The Smoke Pipe

    (corresponding to a total of 0 .75 to 1 kg) . Place 6-10 pieces (a total of about 1 kg) kindling crisscross on top . 3. Place four firelighters between the top layer of kindling. WIKING recommends using high- quality firelighters, as they do not produce smoke or odours.
  • Page 16: Some Things Worth Knowing About The Chimney

    . the section on lighting and fuelling your WIKING stove . Please be aware that it takes longer to heat a brick chimney than a steel chimney .
  • Page 17: Cleaning And Maintaining Your Wood-Burning Stove

    . Cleaning the Glass Door Your WIKING wood-burning stove is equipped with a pane-flush system, which reduces the build-up of soot on the glass . If soot somehow accumulates on the pane, it can be cleaned by wiping the glass with a moist paper towel dipped in ash .
  • Page 18: Declaration Of Performance

    Check that the regulating lever moves smoothly . • Inspection of the seals and the replacement of worn parts . If you have any questions, please consult our FAQ page at www .wiking .com, or contact your local wood-burning stove dealer . Declaration of Performance...
  • Page 19: Trouble Shooting

    Trouble Shooting If you experience that your wood-burning stove is not functioning optimally, consult this table to find some usual problems that may arise and how to solve them. If you cannot solve them and/ or other problems occur, pleas contact your maintenance man or wood-burning stove dealer . Problem Possible Cause Try the Following...
  • Page 20: Guarantee And Claim Conditions

    Guarantee and Claim Conditions - Five Years’ Extended Right to Invoke Lack of Conformity Congratulations on the purchase of your new WIKING wood-burning stove . All of our products are of high-quality craftsmanship, manufactured in first-class materials and subject to a thorough quality control process . That is why we are convinced that you have purchased a product that will function problem-free for many years to come .
  • Page 21 – you will find it on the type sign on the back of the stove. Unwarranted Claims/Service Calls Before registering a claim, you should inspect your WIKING wood-burning stove for possible faults that you yourself can rectify; consult the enclosed user instruction manual as needed .
  • Page 24: Guarantee Certificate

    It is important that you record your dealers name, address and telephone number on this section, as he is responsible for any ajustment which may be required during the warranty period . Model type Date of purchase Dealer Adress Tel . HWAM A/S DK-8362 HØRNING www .wiking .com...
