Engine Group - 15Hp Briggs & Stratton - Simplicity 1693920 Parts Manual

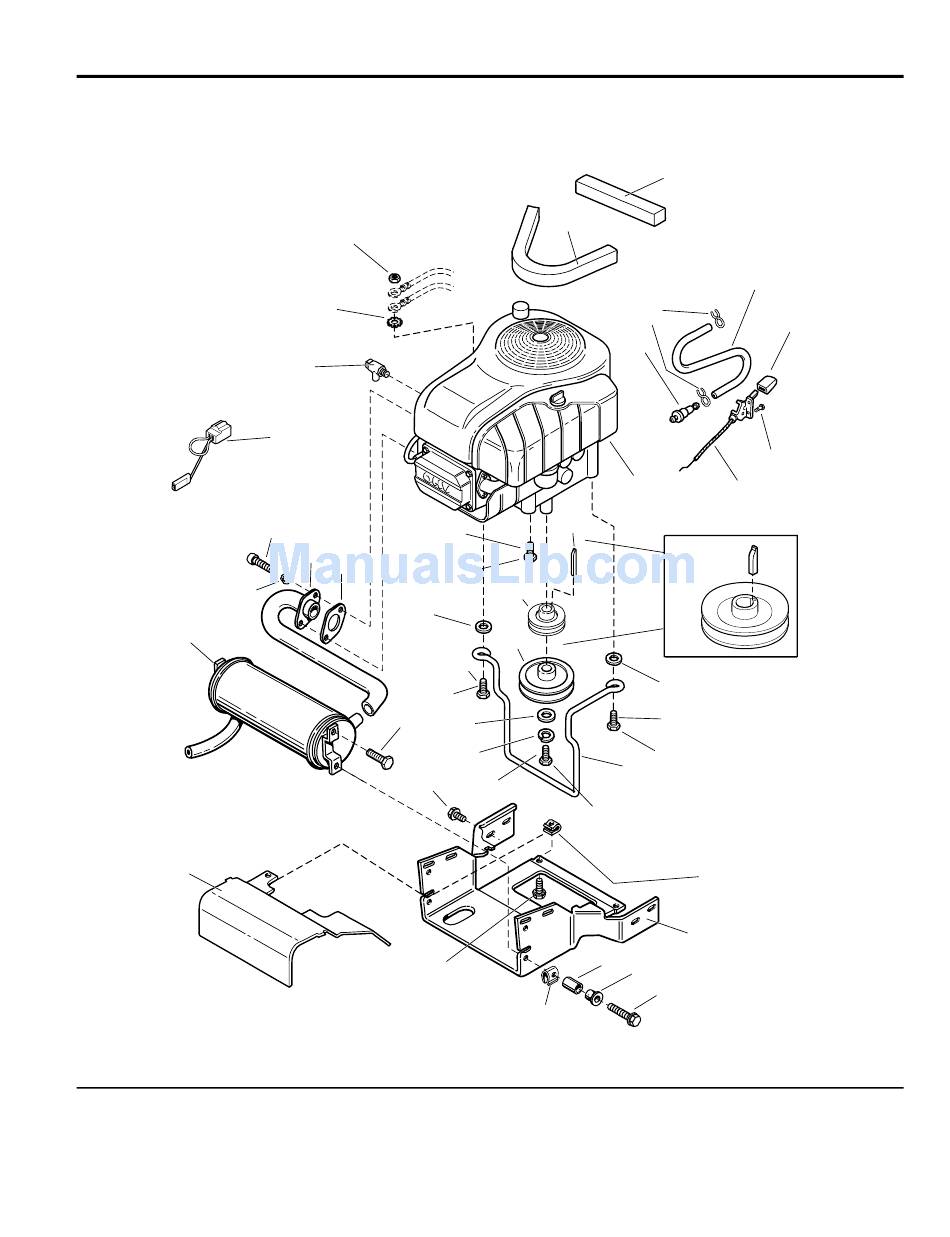

Engine Group - 15HP Briggs & Stratton
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
29
32
28
The above parts group applies to the following Mfg. Nos.:
1694314 - Regent
© Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved.
3
2
1
36
33
13
34
Torque to
35
19-23 ft/lbs
(26-31) Nm
16
Torque to
19-23 ft/lbs
(26-31) Nm
17
31
30
27
4
6
14
15
20
16
18
21
19
Torque to
45-50 ft/lbs
(61-68) Nm
26 25
22
8
5
8
7
9
10
12
11
Note:
Orientation
of Key
16
13
Torque to
19-23 ft/lbs
(26-31) Nm
22
23
24
TP 400-3829-00-RG-S
986029
