Network Communication
Cable Provided
with Module
Disconnect communication module internal DB9 connector, connect your cable.
Allen-Bradley Motors
Follow these instructions to setup the communication module for a
2706-P4x, 2706-P7x, or 2706-P9x display.
• Connect the power cord.
• Disconnect the DB9 connector inside the communication
module.
• Connect your RS-232 (catalog number 2711-NC13 or equivalent)
cable to a personal computer and the communication module.

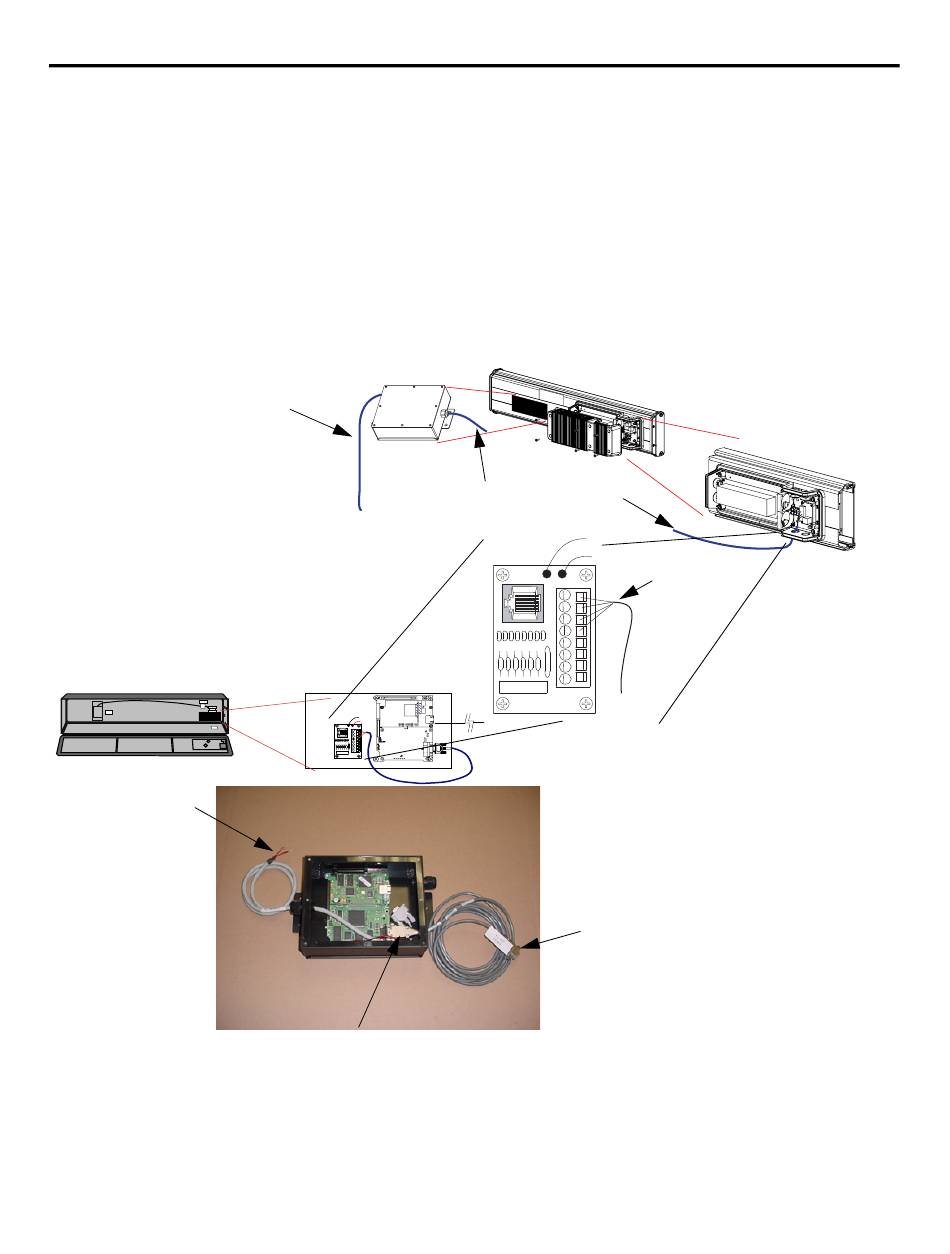

Cable Provided with Module
InView Marquee Message Display
Black
Red
Orange
Brown
To Personal Computer
(catalog number 2711-NC13
or equivalent)
