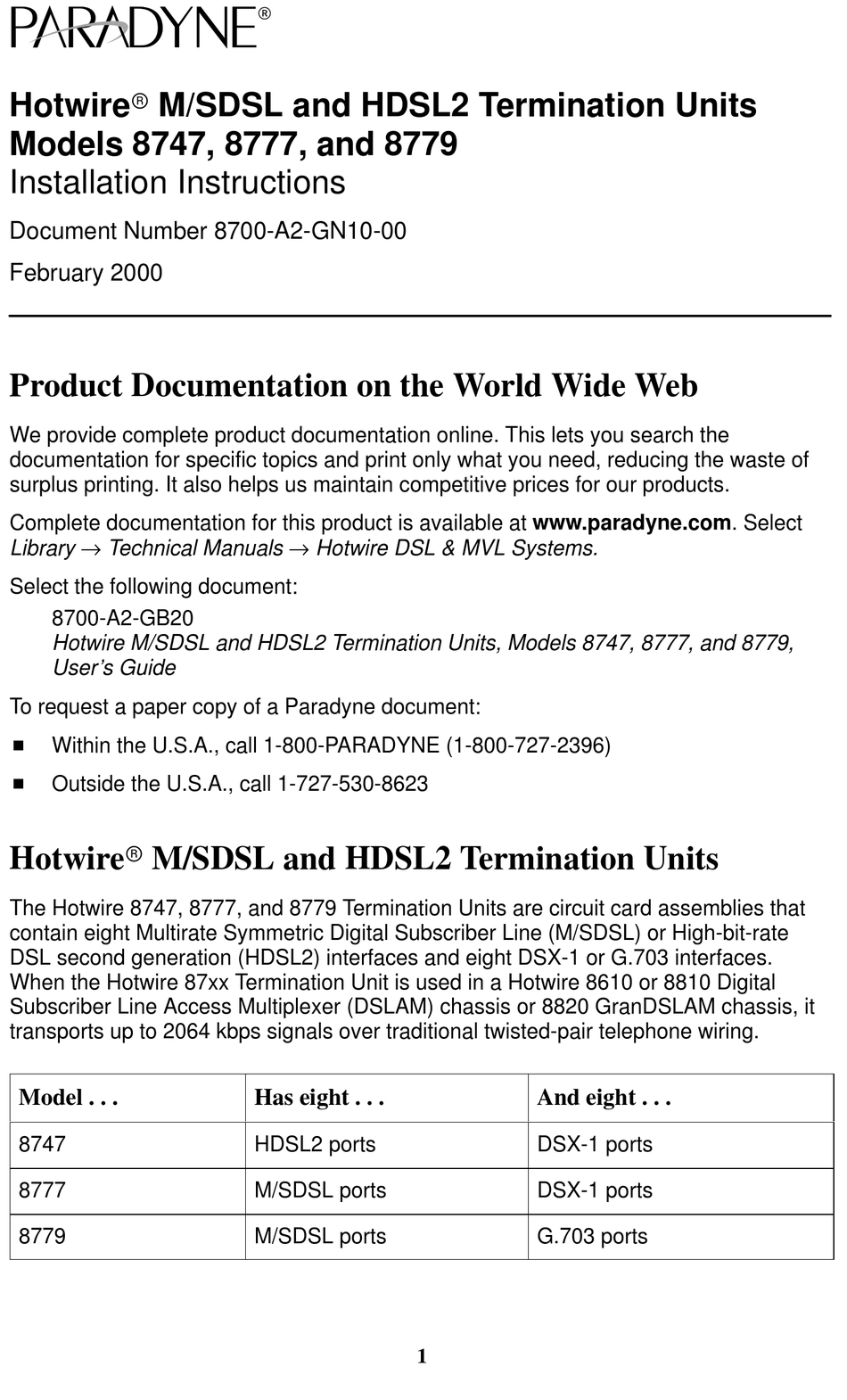

Hotwirer M/SDSL and HDSL2 Termination Units
Models 8747, 8777, and 8779

Installation Instructions

Document Number 8700-A2-GN10-00
February 2000
Product Documentation on the World Wide Web
We provide complete product documentation online. This lets you search the
documentation for specific topics and print only what you need, reducing the waste of
surplus printing. It also helps us maintain competitive prices for our products.
Complete documentation for this product is available at www.paradyne.com. Select
Library → Technical Manuals → Hotwire DSL & MVL Systems.
Select the following document:
8700-A2-GB20
Hotwire M/SDSL and HDSL2 Termination Units, Models 8747, 8777, and 8779,
User's Guide
To request a paper copy of a Paradyne document:
H
Within the U.S.A., call 1-800-PARADYNE (1-800-727-2396)
H
Outside the U.S.A., call 1-727-530-8623
Hotwirer M/SDSL and HDSL2 Termination Units
The Hotwire 8747, 8777, and 8779 Termination Units are circuit card assemblies that
contain eight Multirate Symmetric Digital Subscriber Line (M/SDSL) or High-bit-rate
DSL second generation (HDSL2) interfaces and eight DSX-1 or G.703 interfaces.
When the Hotwire 87xx Termination Unit is used in a Hotwire 8610 or 8810 Digital
Subscriber Line Access Multiplexer (DSLAM) chassis or 8820 GranDSLAM chassis, it
transports up to 2064 kbps signals over traditional twisted-pair telephone wiring.
Model . . .
8747
8777
8779
Has eight . . .
HDSL2 ports
M/SDSL ports
M/SDSL ports
And eight . . .
DSX-1 ports
DSX-1 ports
G.703 ports
1
