High-Performance, Standalone In-System Programmer
FR3070A
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flashrunner FR3070A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMH Technologies Flashrunner FR3070A

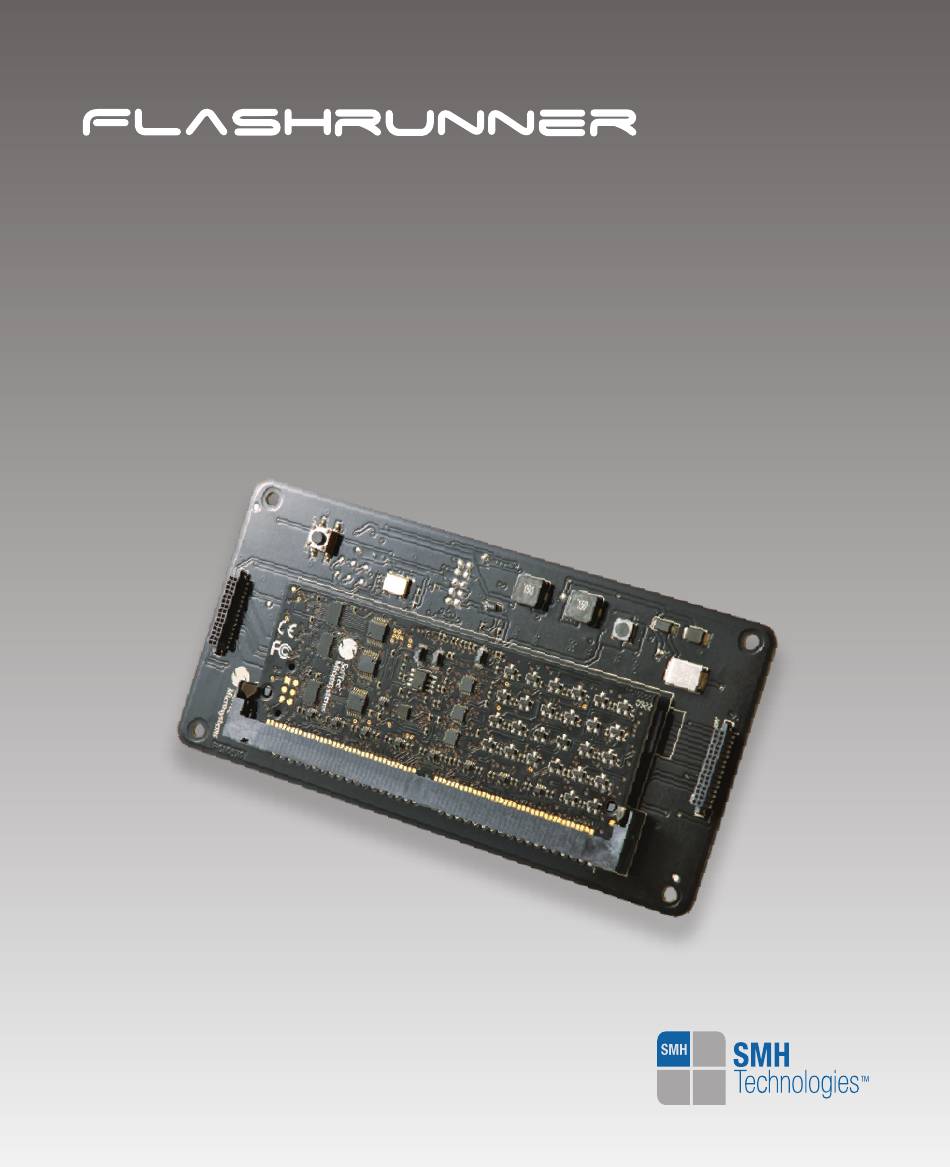

  • Page 1 High-Performance, Standalone In-System Programmer FR3070A User’s Manual...
  • Page 3 FR 3070 A Plug-in Card for Agilent Medalist i3070 Utility Card User’s Manual Revision 1.1 August 2012 Copyright © 2012 SMH Technologies DC10511...
  • Page 4 SMH Technologies reserves the right to make improvements to FlashRunner, its documentation and software routines, without notice. Information in this manual is intended to be accurate and reliable. However, SMH Technologies assumes no responsibility for its use; nor for any infringements of rights of third parties which may result from its use.
  • Page 5: Table Of Contents

    FR 3070 A User’s Manual Contents Before Starting ..................9 Important Notice to Users ..............9 Safety....................9 Getting Technical Support ............... 10 Additional Documentation ............... 10 Overview ....................11 What is FR3070A? ................11 Features ..................12 1.2.1 General features ................12 1.2.2 Hardware ..................
  • Page 6 Contents ISP and Communication connectors ..........21 Technical Specifications ..............23 Absolute Maximum Ratings .............. 23 DC Characteristics and Functional Operating Range ...... 23 AC Characteristics ................25 Physical and Environmental Specifications ........26...
  • Page 7 FR 3070 A User’s Manual Index of Figures Figure 1.1: FR 3070 A ................. 11 Figure 3.1: “J601” and “J602” connectors (top wiew) ......21...
  • Page 9 FR 3070 A User’s Manual Index of Tables Table 3.1: “J601” Connector Signals ............21 Table 3.2: “J602” Connector Signals ............22 Table 4.1: Absolute Maximum Ratings ............23 Table 4.2: DC Characteristics and Functional Operating Range ....23 Table 4.3: AC Characteristics ............... 25 Table 4.6: Physical and Environmental Specifications .........
  • Page 11: Before Starting

    While every effort has been made to ensure the accuracy of all information in this document, SMH Technologies assumes no liability to any party for any loss or damage caused by errors or omissions or by statements of any kind...
  • Page 12: Getting Technical Support

    SMH Technologies offers a fast and knowledgeable technical support to all of its customers and is always available to solve specific problems or meet specific needs. To get in touch with SMH Technologies, please refer to the contact information below. Phone:...
  • Page 13: Overview

    FR 3070 A User’s Manual 1 Overview 1.1 What is FR3070A? FR3070A is an optional daughter board that can be mounted on Agilent Medalist In-circuit Board Test System Utility Card.  With the Agilent Medalist In-Circuit Board Test System Utility Card, the integration of implementation of the general MCUs, Flash and EEPROM programming or any other functional testing can be easily achieved ...
  • Page 14: Features

    Overview 1.2 Features 1.2.1 General features Fastest programming algorithms (as fast as target device’s memory  technology limit), approved by silicon manufacturers;  Supports most ISP protocols (BDM, JTAG, SPI, I2C, MON, ICC, SCI, etc.);  Data integrity guaranteed (every data transfer to/from the host system or Secure Digital card is CRC tagged).
  • Page 15: Package Checklist

    FR 3070 A User’s Manual 1.3 Package Checklist The FR3070A package includes the following items: FR3070A unit including pre-installed uSD cards with the programming algorithm(s) specified at the time of purchase FlashRunner “System Software” CD-ROM, containing the FlashRunner Programmer’s Manual in PDF format; User’s manual Registration card 1.4 Hardware Overview...
  • Page 16: Programming Algorithms And Licenses

    Overview 1.5 Programming Algorithms and Licenses FR3070A includes programming algorithms for several devices. In order to program a specific device, however, a specific license file for that device must be purchased. Note: FR3070A comes already preinstalled with the license(s) you specified at the moment of purchase. You can purchase additional licenses at any future moment.
  • Page 17: Upgrading The Firmware

    FR 3070 A User’s Manual To copy files on the SD card, use either a standard card reader connected to a PC or transfer the files using the FlashRunner FSSENDFILE command (for more information on FR3070A commands, see the FlashRunner Programmer’s Manual).
  • Page 18: System Setup

    System Setup 2 System Setup 2.1 Overview This chapter will explain how to set up FR3070A for the first time. Note: to install the FR3070A hardware please refer to the Agilent Medalist In-circuit Board Utility card technical specifications 2.2 Software Setup The FR3070A system software CD contains the following components: ...
  • Page 19: Programming Example

    FR 3070 A User’s Manual 2.3 Programming example Here below a typical example of FR3070A software interfacing: xdload "FR3070A1" xdconnect "FR3070A1" xdcall "FR3070A1","send_command",Var,Rtn$; "run SCRIPT.FRS" xdcall "FR3070A1","get_answer",Var,Rtn$; "20000" if Rtn$ = ">" then print "Programming Passed" else print "Programming Failed, The error code is "; Rtn$ end if xddisconnect "FR3070A1"...
  • Page 20 System Setup If Ethernet module is reset, factory parameters will not be loaded. New parameters are the following ones: IP address: 192.168.1.100 Subnet id: 255.255.255.0 Gateway: 192.168.1.1...
  • Page 22: Connectors

    Connectors 3 Connectors 3.1 Overview FR3070A must be connected to the Agilent Medalist In-circuit Board utility card by using 2 high-density connectors. 3.2 ISP connector All the ISP line are connected trough the J601 connector (see figure below). This connector has several input/output lines (both digital and analog) that are automatically configured depending on the specific target device to be programmed (see the Programmer’s Manual to learn how to connect these lines to your specific target device).
  • Page 23: Isp And Communication Connectors

    FR 3070 A User’s Manual 3.3 ISP and Communication connectors Figure 3.1: “J601” and “J602” connectors (top wiew) Table 3.1: “J601” Connector Signals Pin # Signal Name Description N.C. Not Connected DIO0/AO0 Digital input/output 0 or analog output 0 N.C. Not Connected DIO1/AO1 Digital input/output 1 or analog output 1...
  • Page 24: Table 3.2: "J602" Connector Signals

    Connectors Pin # Signal Name Description 12Vdc DC power supply N.C. Not Connected Table 3.2: “J602” Connector Signals Pin # Signal Name Description N.C. Not Connected Reserved Reserved N.C. Not Connected Ground N.C. Not Connected Reserved Reserved N.C. Not Connected Reserved Reserved AGND...
  • Page 25: Technical Specifications

    FR 3070 A User’s Manual Technical Specifications Absolute Maximum Ratings Table 4.1: Absolute Maximum Ratings Parameter Value “J601” power Maximum supply voltage on line POWER (reference GND) -20V to 15V “J601” ISP lines Maximum input voltage on lines DIO/AO[1..0], DIO[6..2], CLKOUT -1V to +7V Maximum current on lines DIO/AO[1..0], DIO[6..2], CLKOUT ±50mA...
  • Page 26 Technical Specifications DIO/AO[1..0] voltage Configured as analog output 14.5V DIO/AO[1..0] IO current (sink and source) Configured as analog output ±40mA current (source) on lines DIO/AO[1..0] 5.5mA Configured as analog lines with active pull-ups VPROG0 output voltage 1.6V 5.5V VPROG0 current (source) 500mA VPROG1 output voltage 3.5V...
  • Page 27: Ac Characteristics

    FR 3070 A User’s Manual AC Characteristics Table 4.3: AC Characteristics Value Parameter Condition = 1.8V 40ns on lines DIO[6..2], PROG0 RISE DIO[1..0], CLKOUT when Load: 470Ω//100pF = 3.3V 30ns PROG0 configured as digital output (see figure 4.1a) push-pull = 5V 25ns PROG0 = 1.8V...
  • Page 28: Physical And Environmental Specifications

    Technical Specifications Physical and Environmental Specifications Table 4.6: Physical and Environmental Specifications Parameter Value Dimensions 150x74x11 Operating temperature 0-50°C Operating humidity 90% max (without condensation) Storage temperature 0-70°C Storage humidity 90% max (without condensation)
  • Page 30 Systein Italia Srl VAT (P.I./C.F.) n. IT01697470936 Phone +39 0434 421111 Registered office/sede legale: Via Giovanni Agnelli, 1 Fax +39 0434 639021 V.lo del Forno 9 33083 Villotta di Chions (PN) Italy info@smh-tech.com Zip/Cap 33170 Pordenone (PN) Italy www.smh-tech.com Share Capital/Capitale Sociale € 10.000...
