- Page 1 “DUCK” ARCADE OPERATIONS MANUAL Version 042017 WARNING! Be sure to read this Operation Manual before using your machine to ensure safe operation. www.bobsspaceracers.com Bob’s Space Racers ® Inc. ©2017 427 15 Street, Daytona Beach, Florida 32117 Tel: (386) 677-0761 Fax: (386) 677-0794...
-
Page 2: Table Of Contents
Table of Contents MODEL VIEW ………………………………………………………………………………………………………………… SPECIFICATIONS …………………………………………………………………………………………………………… Rated power supply: ………………………………………………………………………………………………………. Power consumption: ……………………………………………………………………………………………………….. Dimensions: ………………………………………………………………………………………………………………… Weight: ……………………………………………………………………………………………………………………… INTRODUCTION ……………………………………………………………………………………………………..……… Overview: …………………………………………………………………………………………………………………… To Maintain Safety: ………………………………………………………………………………………………………… WARNING!: or CAUTION!: ……………………………………………………………………………………………….. NOTE: or NOTICE: ………………………………………………………………………………………………………… IMPORTANT SAFETY INFORMATION: ………………………………………………………………………………….. SET UP: ………………………………………………………………………………………………………………………. PACKAGE CONTENTS …………………………………………………………………………………………………….. -
Page 3: Model View

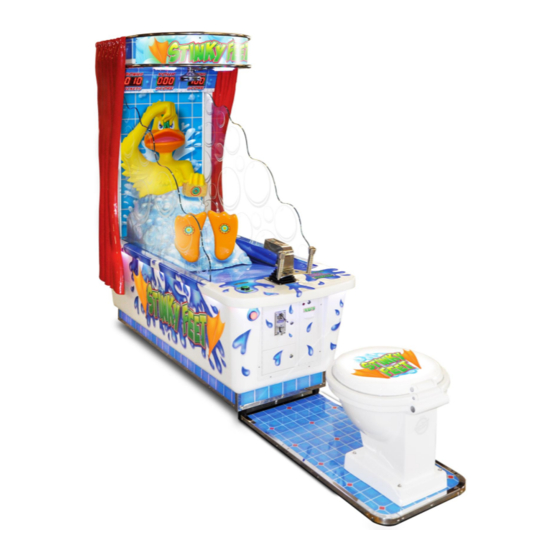

MODEL VIEW Stinky Feet™ Arcade Game Bob’s Space Racers ® P a g e Inc. © 2017... -
Page 4: Specifications
SPECIFICATIONS Rated power supply: 110VAC ± 10%, 60 Hz ± 3 Hz. (Note: Please refer to the label on the game for the actual voltage). Power consumption: 660W Dimensions: 105” L x 30” W x 78 1/4” H Weight: 386 lbs NOTE: Game parameters are subject to change without notice. -
Page 5: Introduction
INTRODUCTION Overview: Thank you for purchasing the new STINKY FEET™ from Bob's Space Racers ® (BSR) . Built on a long tradition of value, the new STINKY FEET retains all of the great game play you have come to expect of a game from BSR, and is specifically designed for today's Arcade environment. The new game uses technology specifically developed for this application. -
Page 6: Important Safety Information
IMPORTANT SAFETY INFORMATION: WARNING! Unplug the game from the AC wall receptacle when servicing this product. Failure to do so could result in serious injury to yourself or others. Use only a GROUNDED AC receptacle. Failure to do so could result in improper operation or damage to the game and could void your warranty. -
Page 7: Package Contents
PACKAGE CONTENTS Be sure to check that you have received all packages indicated below. Game Unit Accessories Picture Note Name Regulation Power wire 10A/250V 1.8m 6.3 A/250V Φ5-20MM Fuse 220V Manual Front and back X919 door X818 Coin box Bob’s Space Racers ®... -
Page 8: Installation
INSTALLATION ATTENTION! FOR INDOOR USE ONLY! Check the parts list before installation. Verify that all parts that have been received and are in good condition. Play Zone (Operation Zone): This machine requires space for playing the game. Be sure to leave enough space when installing the machine. -
Page 9: Connecting The Power Cord
WARNING! • Disconnect game power before moving • Make sure all wheels are intact. Replace any wheels that are damaged or broken before moving the game. • When moving the game, DO NOT slide the game across the floor • Ensure the game is level before connecting the power Connecting the power cord Power socket Electrical wire box... -
Page 10: Instruction For Play
INSTRUCTION FOR PLAY 1. Insert coin(s), the game starts. 2. When the game play starts, aim your gun at the lighted targets. The gun will shoot water automatically. All you have to do is aim. 3. Tickets will be awarded for each game play. 4. -
Page 11: Option Programming
OPTION PROGRAMMING Programming Console *Located at the front of the game* Not Used Not Used Scroll Up Through Enter Option Option Values. Setting/s Resets Option Not Used Value to Beginning. Programming Instructions NOTE: SEE CHART BELOW ON PAGE 12. 1. Press the “TEST” button to view the first game option. 2. -
Page 12: Option Settings
Option Settings Option Number Description Variation Coins per play (1 -5) High Score to Beat (100 - 350) Water Gun Demo Time (Gun fires for 15 secs) (0 - 300) Bonus Ticket Start Value (0 - 100) Bonus Ticket Adder (0 - 5) Max Bonus Payout (0 - 500) -
Page 13: Maintenance And Inspection
MAINTENANCE AND INSPECTION Maintenance: ➢ Due to the design of the machine, very little periodic maintenance is required. ➢ Start the game and verify the correct operation before putting the game into everyday operations. ➢ Clean the surface of the game as needed. ➢... -
Page 14: Troubleshooting
TROUBLESHOOTING WARNING! For your safety, and to reduce risk of damage to your game read the Important Safety Information on page 7 before attempting any troubleshooting procedure. TROUBLESHOOTING PHILOSOPHY When troubleshooting any product, certain general guidelines should be followed. 1. Always check to be sure that your game is turned on. Be sure that all of the fuses in the game are functional and check to see that the AC voltage is in the proper operating range for your game. -
Page 15: General Troubleshooting
General Troubleshooting: Symptom Possible Problem Solution POWER POWER Game will not score Power not on switch Check wiring harness for 12 volts on switch Sensor output not correct Repair / Replace switch Signal not getting to main board Repair / Replace harness Signal gets to main board but board doesn’t see it Replace main board Sound Problems... -
Page 16: Parts List
PARTS LIST Part Number Description Photo E0801000 Solid State Relay 25A E0801001 Main Board E0801002 Sound Board E0801003 Main Board Chip Set M0801015 Programming Board Bob’s Space Racers ® P a g e | 16 Inc. © 2017... - Page 17 E0801004 I/O Board Display Board E0801005 (3-Digit) E0801006 Power Supply (5V6A / 12V8A) E0801007 Power Supply (+12 V / - 12 V) E0801008 LED Light Board 1 E0801009 LED Spot Light Bob’s Space Racers ® P a g e | 17 Inc.
- Page 18 E0801010 Speaker Chase Light E0801012 Chase Light Board (Soap) E0801014 Target Paddle Magnet – Short (Feet & Soap) E0801015 Chase Light Board (Left Foot) E0801016 Chase Light Board (Right Foot) E0801017 Target Magnetic Switch Bob’s Space Racers ® P a g e | 18 Inc.
- Page 19 E0801028 LED Target Ring (Encapsulated) w/ W/ Ring Holder E0801028-A LED Target Ring w/ Wire Connector E0801028-B LED Target Ring Holder w/ Screws and Nuts M0801201 Complete Set – 2 Feet, 1 Soap M0801201-A Complete Left Foot Target Assembly Bob’s Space Racers ®...
- Page 20 M0801201-A1 Complete Left Foot Acrylic Box Assembly M0801201-A2 Left Foot Plastic Cover w/ LED Ring M0801201-A3 Left Foot Plastic Cover - Bare M0801201-A4 Left Foot Acrylic Box Bob’s Space Racers ® P a g e | 20 Inc. © 2017...
- Page 21 M0801201-B Complete Right Foot Target Assembly M0801201-B1 Complete Right Foot Acrylic Target Assembly M0801201-B2 Right Foot Plastic Cover w/ LED Ring M0801201-B3 Right Foot Plastic Cover - Bare Bob’s Space Racers ® P a g e | 21 Inc. © 2017...
- Page 22 M0801201-B4 Right Foot Acrylic Box M0801201-C Complete Soap Target Assembly M0801201-C1 Complete Soap Acrylic Target Box Assembly M0801201-C2 Soap Plastic Cover w/ LED Ring Bob’s Space Racers ® P a g e | 22 Inc. © 2017...
- Page 23 M0801201-C3 Soap Plastic Cover - Bare M0801201-C4 Soap Acrylic Box W0801001 Handle Cover W0801002 Handle W0801004 Gun Boot Bob’s Space Racers ® P a g e | 23 Inc. © 2017...
-
Page 24: Calling For Service
IF YOU HAVE ANY QUESTIONS OR COMMENTS PLEASE CALL BSR. BSR’s Parts Contact Info Phone: 1-(386) 677-0761 Opened: Monday – Friday Office Hours: 8:30AM – 5:00PM EST E-mail: Parts@bsrgames.com... -
Page 25: Policies
Policies Service Policy Here at BOB’S SPACE RACERS ® INC., we pride ourselves in providing the highest quality, long lasting, and easy to maintain equipment. Technical Support Service hours are from 8:30 am to 5:00 pm, EST, Monday through Friday, excluding holidays. The direct technical number is (386) 677-0761 ext:146. During all other times, follow the prompts on our Automated Phone System to relay your problem to the technician on call. -
Page 26: Warranty
Warranty Game Warranty BOB’S SPACE RACERS ® INC. ©2017 90 DAY COIN-OPERATED GAME WARRANTY INCLUDED IN THIS WARANTY Bob’s Space Racers ® Inc., warrants to the original purchaser only that the equipment that is the subject of this sale conforms to its specifications, and is free from defects under normal service for one-year period from the original date of deliver. - Page 27 NO OTHER WARRANTIES. Unless modified in writing and signed by both parties, this agreement is understood to be the complete and exclusive agreement between the parties, superseding all prior agreements, oral or written, and all other communications between the parties relating to the subject matter of this agreement. No employee or representative of Bob’s ®...
-
Page 28: Revision
Revision Information Revision Date of Revision Description of Revision Approved by August 21, 2012 Jack Cook April 21, 2017 Jack Cook Bob’s Space Racers ® P a g e | 28 Inc. © 2017... - Page 30 Bob’s Space Racers ® Inc. © 2017 427 15th Street, Daytona Beach, Florida 32117 Phone - (386) 677-0761 Fax - (386) 677-0794 E-mail: tech@bobsspaceracers.com...
