HPM EF150SQWE Instruction Sheet

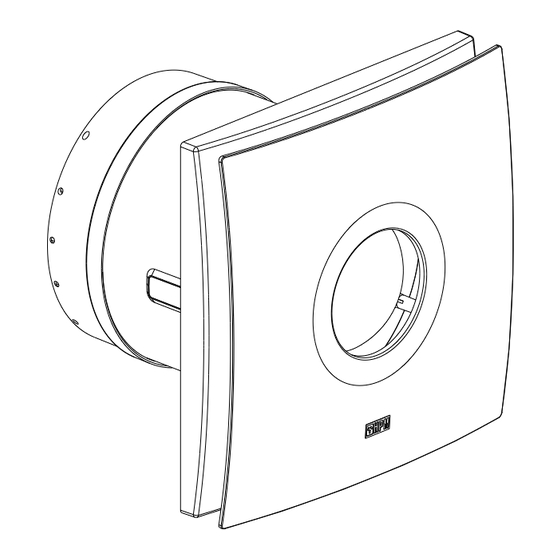

EF150SQWE
Standard square
150mm wall fan
Please read carefully: Read through these instructions completely before commencing installation. Retain for future use.
This product should be installed by a licensed electrical contractor or similarly qualified person.
1

Specifications

Cat no.
Supply voltage
Power rating
Protection class
IP rating
Duct requirement
Wall/ceiling cut-out size
Draught stopper
Fascia Size
Thickness
Weight (excl. packaging)
Max Airflow (m /hr)
3
Cat no.
Draught stopper
No duct
Wall kit R621/6D
(350mm of duct)
1m of duct
3m of duct
For indoor use only. Airflow will be reduced with bends in duct, squashing of duct, restrictions on replacement air entering the room
to be ventilated, or pressure-differentials between the room and outside air. The length of the duct will have an effect on the airflow.
When fitted, the wall kit (R621/6D) must be at the same height or lower than the exhaust fan.
EF150SQSWE
Slimline square
150mm wall fan
EF150SQWE EF150SQSWE
IP44 IP24
PET Sheet
212x212mm 212x212mm
43mm 24mm
1.0kg 0.9kg
EF150SQWE
with without
204 218
184 189
175 178
158 160
Wall Exhaust Fan, 150mm
Cat no. EF150SQWE, EF150SQSWE,
EF150RDWE, EFS150SQWE, EFS150SQSWE
Instruction Sheet
EF150RDWE EFS150SQWE
Round Standard
150mm wall fan 150mm wall fan
with auto shutter
EF150RDWE
230–240V a.c. 50Hz
24W
Class II
IP24
Ø150mm
Ø160mm
Ø253mm
24mm
0.9kg
EF150SQSWE & EF150RDWE
with without
269
206
196
171
EFS150SQSWE
Slimline
150mm wall fan
with auto shutter
EFS150SQWE
IP44
Auto-Shutter (Wax Solenoid)
212x212mm
43mm
1.2kg
EFS150SQWE
with
309 200
217 184
201 175
181 158
EFS150SQSWE
IP24
212x212mm
24mm
1.1kg
EFS150SQSWE
with
267
206
196
171
