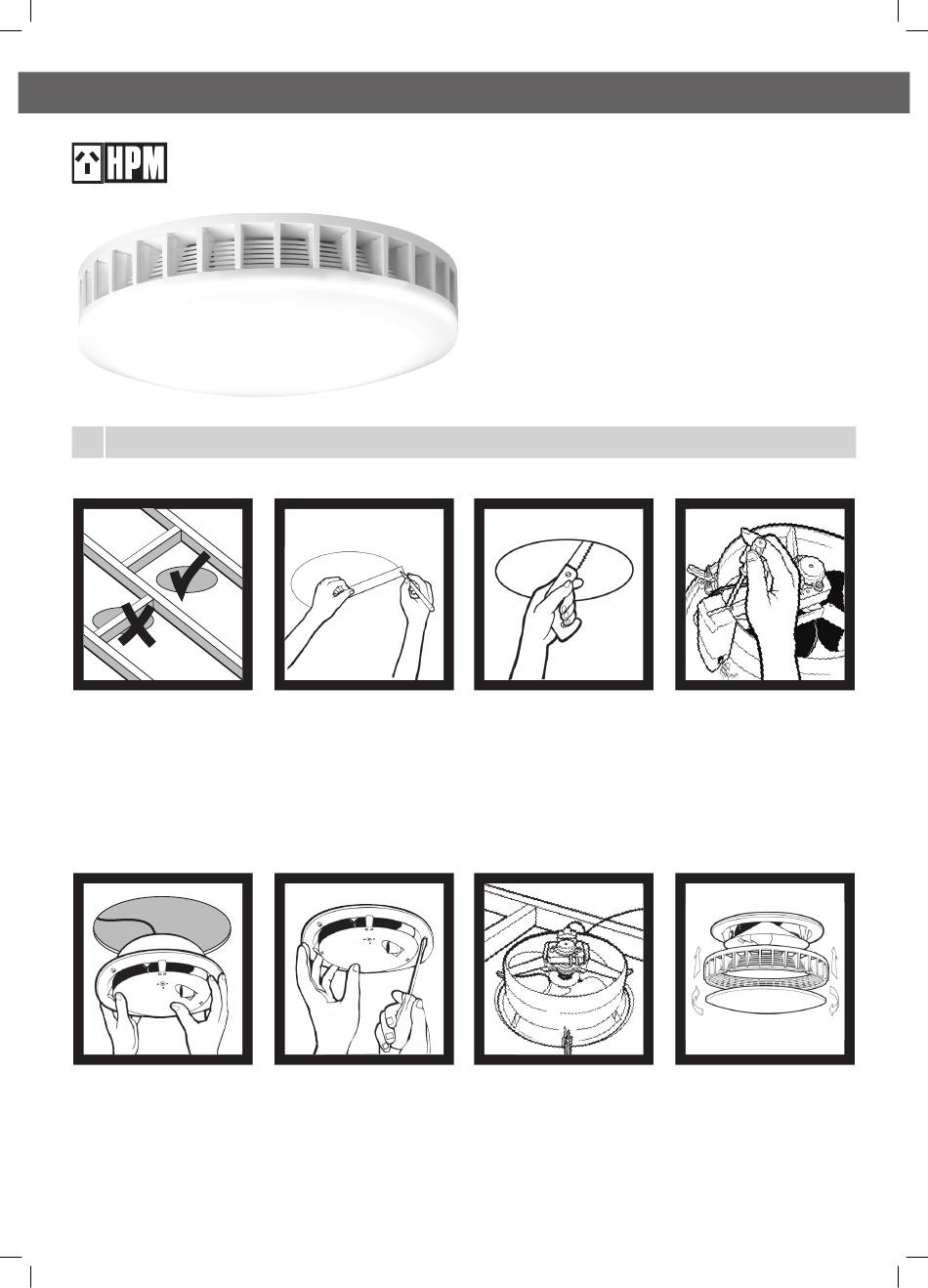

HPM R620 Instruction Information

1 Installation
A licensed electrician is required to connect this unit to the mains supply.
1. Determine position in ceiling
where Fanlight is required to
be installed. (Do not install
within 120cm of stove or inside
a shower recess). Be certain
that the installation area is not
restricted by roof beams above
ceiling.
5. Remove light diffuser and
air-intake grille. Unscrew
the 3 screws on the lip of the
unit until the gap between the
toggles and inner lip of the
unit is greater than the width
of the Gyprock, or other ceiling
material. Fold these toggles in.
Push unit into hole.
2. Use template provided to draw
a circle 300mm in diameter.
To do this insert a thumb tack
in hole at one end and insert
a pencil in the other hole and
scribe a circle.
6. Turn the retention screws
clockwise. The toggles will splay
out. Tightening the retention
screws allows the toggles to
grip the ceiling material.

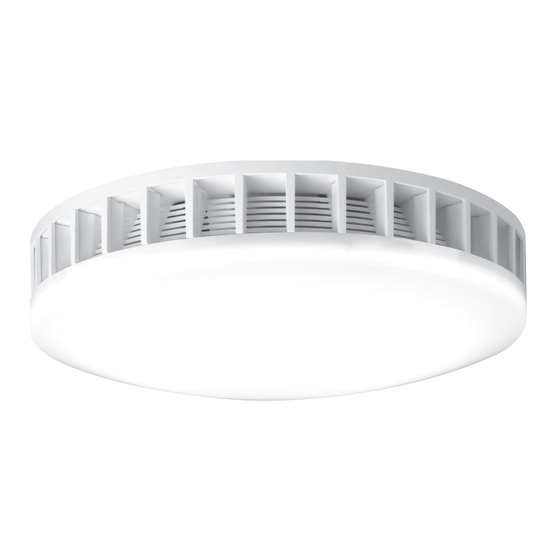

Fan Light - Ceiling Exhaust
Instruction Information
3. Use electric jig saw or small
hand saw to cut out around this
line. Several holes drilled at a
point inside the circle provides
a convenient starting point for
cutting the panel out.
7. It is recommended that the
three toggles be checked for the
correct clamping by inspection
from above.
Fan and Light
Cat. R620
4. Remove terminal cover and
wire according to the diagram
in Option 1 over. This method of
wiring switches fan and light on
and off simultaneously. Option
2 shows how to wire fan and
light separately. This allows the
light (or the fan) to be switched
on independently of the other.
Option 3 shows the addition of a
HPM Cat TX770/1RC time delay
mechanism.
8. You may now insert a globe
(not more than 75W) into the
lampholder. Push grille into
unit and click into position.
Assemble the diffuser and round
dust seal and twist into position.
To remove this assembly for
cleaning, simply pull assembly
downwards. For globe changing
only, simply twist the diffuser
anticlockwise and remove.
