NOTE 1

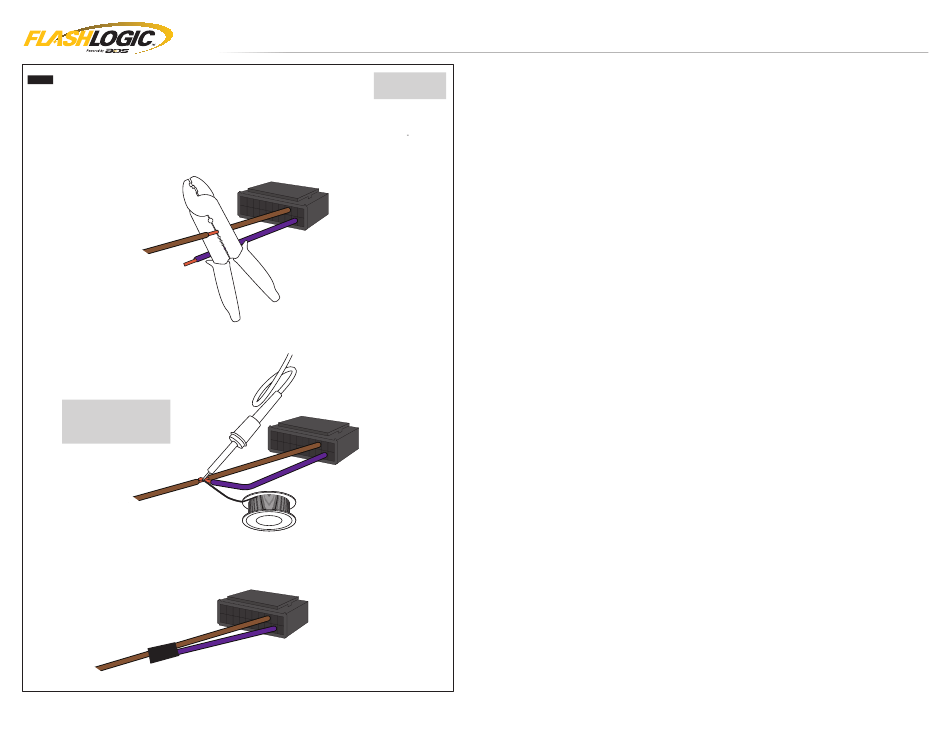

STEP 1:
-IDENTIFY THE PURPLE (PIN 18) AND BROWN (PIN 15) WIRES FROM THE 20 PIN BLACK CONNECTOR OF THE T HARNESS.
-CUT THE PURPLE WIRE.
-CAREFULLY STRIP THE BROWN WIRE USING A WIRE STRIPPER.
STEP 2:
-CONNECT AND SOLDER THE PURPLE WIRE TO THE BROWN WIRE.
WARNING
FAILURE TO PROPERLY SOLDER
CAN RESULT IN
FAULTY CONNECTIONS AND
PRODUCT MALFUNCTION
STEP 3:
-INSULATE THE CONNECTIONS WITH ELECTRICAL TAPE.
U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2018
TYPE 1 - WIRING DIAGRAM - 2 OF 2
ONLY FOR
ADS-HRN(RS)-CHR10
VER1.20
DIR-CH(RS)-CH8-[FLRSCH10]-EN
PAGE 6 OF 23
• 20180321
DOC.: #48370
