FlashLogic DIR-CH8 Install Manual page 10

MODULE
A
RF PORT/WEBLINK PORT
G
F TELEMATIC PORT
B
E
C
D
A
MS2 MS2
2 1
4 3
6 5
B
PURPLE (NC)
2 1
4 3
6 5
8 7
MS1 MS1
10 9
12 11
14 13
ONLY FOR
16 15 15
15 BROWN
ADS-HRN(RS)-CHR10
18 18 17
VER1.20
20 19
NOTE 1
18 PURPLE
(SEE NEXT PAGE)
C
2 1
4 3 02 GRAY (NC)
6 5
8 7
10 9
12 11 11 GRAY/GREEN - HORN (-) OUTPUT
D
2 1
4 3
04 GRAY/WHITE - HOOD STATUS (-) INPUT
6 5
8 7
10 9
U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2018

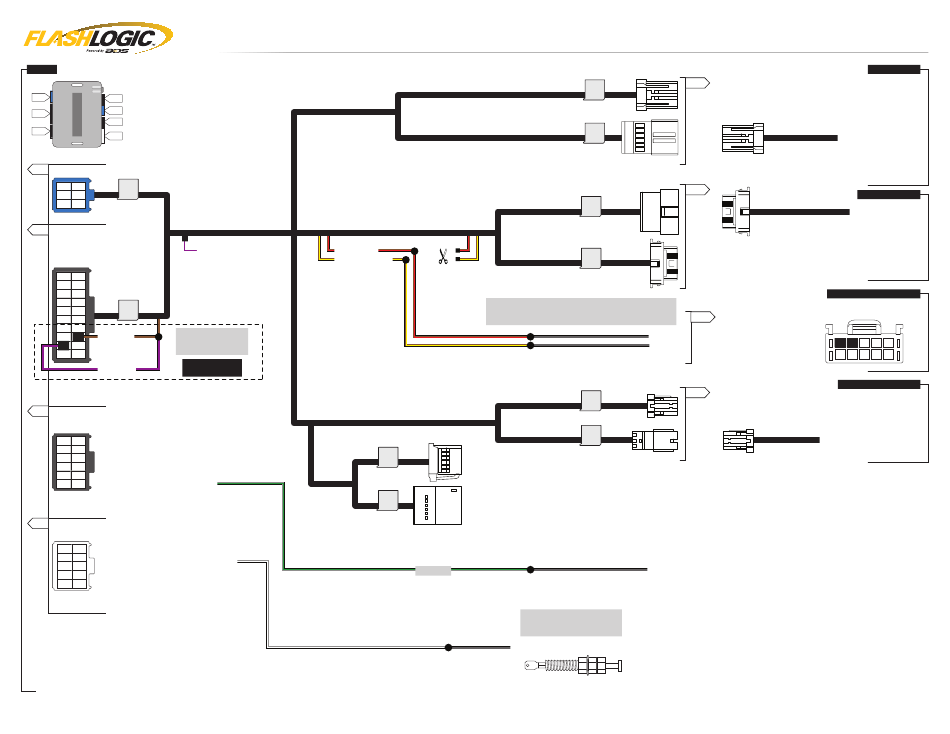

TYPE 3 - WIRING DIAGRAM - 1 OF 2
BROWN/RED
BROWN/YELLOW
CUT THE BROWN/RED AND BROWN/YELLOW WIRES.
INSULATE THE OBDII SIDE OF THE CUT WIRES AND
CONNECT THE OTHER SIDE TO VEHICLE CANH AND CANL.
VS6
NC
VS5
NC
OPTIONAL
AFTERMARKET HOOD SWITCH (-)
DIR-CH(RS)-CH8-[FLRSCH10]-EN
PTS
VS2 VS2
VS1 VS1
OBDII
VS3
VS4
A
CANH - 02
CANL - 01
B
VS7
VS8
HORN (-)
WITHOUT OEM HOOD SWITCH:
INSTALL AND CONNECT TO
AFTERMARKET HOOD SWITCH
PAGE 10 OF 23
• 20180321
DOC.: #48370
IGNITION NODE
IGNITION CONNECTOR
IGNITION HARNESS
OBDII CONNECTOR
OBDII HARNESS
OBDII HOLDER
TRAILER PACK CONNECTOR TRAILER PACK CONNECTOR
GRAY
1 2 3 4 5
6 7 8 9 10
PARKING LIGHT SWITCH PARKING LIGHT SWITCH
LIGHT SWITCH CONNECTOR
LIGHT SWITCH HARNESS
