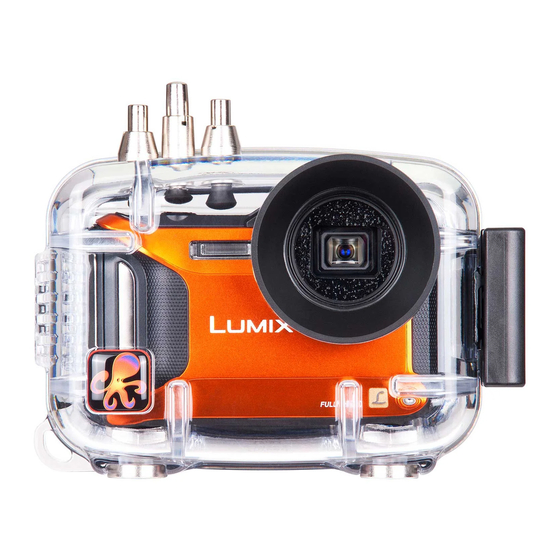

6 2 70. 0 6 Underwater Housing f or
Panasonic LUMIX TS5, TS6, FT5, FT6
S u p p l e m e n t a l I n s t r u c t i o n s
Supplied Accessories
-
0200.02 Vinyl Port Cover
-
0321.10 Safety Lanyard
-
Flash Diffuser
Size and Weight
Width ................5.9 in (150 mm) including controls
Height ..............4.7 in (119 mm) including controls
Depth................3.0 in (78 mm) including controls & lens port
Weight ..............1 lb. (454g)
Buoyancy..........Slightly positive in fresh water
-
Flash Deflector
-
0184.1 Silicone Lubricant
-
Replacement control tips/sleeves
Advertisement
Related Manuals for Ikelite 6270.06
Summary of Contents for Ikelite 6270.06
-
Page 1: Supplied Accessories
6 2 70. 0 6 Underwater Housing f or Panasonic LUMIX TS5, TS6, FT5, FT6 S u p p l e m e n t a l I n s t r u c t i o n s Supplied Accessories 0200.02 Vinyl Port Cover Flash Deflector 0321.10 Safety Lanyard... -
Page 2: Front View
Parts of the Housing Lens Port Front View Fiber Optic Ports Latch Tray Mounts Shutter Button ON/OFF Button Motion Picture Button Back View Lanyard ULTRA compact Made in USA Zoom Button (Wide) 7. MENU/SET Button Zoom Button (Telephoto) Cursor Right / Flash Setting Playback Button Cursor Down / Macro Mode 4. - Page 3 Initial Camera Settings (before placing camera in housing) Set Rec Mode to “P” Program AE. In Menu Rec: Set Aspect Ratio to “4:3” and Picture Size to “16m.” Set ISO Sensitivity to “200” and WB White Balance to “AWB.” Set AF Mode to “1-Area.” Set Quick AF to “ON.”...
-
Page 4: Customer Support
Handle with rubber grip - Tray (single or dual) Mounting hardware. A full range of accessories is available to support your housing. Please visit ikelite.com to see the most current information about recommended accessories for your housing. Customer Support Please read the troubleshooting section of the “Instruction Manual”...
