Ikelite ULTRAcompact 6270.25 Quick Start Manual

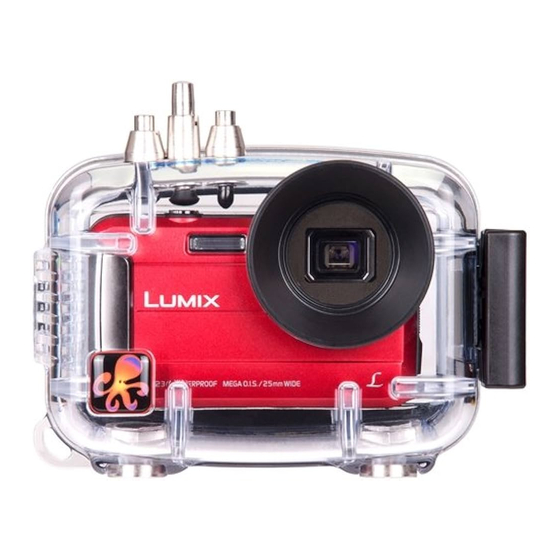

ULTRAcompact Housing for Pansonic Lu-
mix DMC-TS25, FT25
Product # 6270.25
Included in the Box
•
Housing
•
O-ring # 0132.45 (installed)
•
Port cover # 0200.02 (installed)
•
Flash diffuser
•
Flash deflector
•
Lanyard # 0321.10
•
Silicone lubricant 1cc tube
Important Notices
Do not use alcohol, cleaning agents, spray lubricants,
»
Rain-X, or other solvents on the housing or lens port.
Use of an incompatible chemical compound can
damage the plastic or component o-rings, which may
result in leaking.
Assemble in a cool, dry location. To avoid fogging,
»
do not open in a humid environment. Dry the housing
completely before opening.
Lanyard Mount
The included lanyard is a break-away safety lanyard which is
designed to break if stress is placed on it. This is important
so that the user can break free if the equipment is caught on
something underwater.
The lanyard is not designed to support the weight of the
housing and should not be used as a carrying strap. Carrying
the housing by the lanyard may result in damage to the
lanyard and/or housing.
A different lanyard with a thin cord may be attached to
the housing using the lanyard mount on the corner of the
housing.
On/off
Shutter
Motion
Lanyard
mount
Up / Exposure compensation
Down / Macro

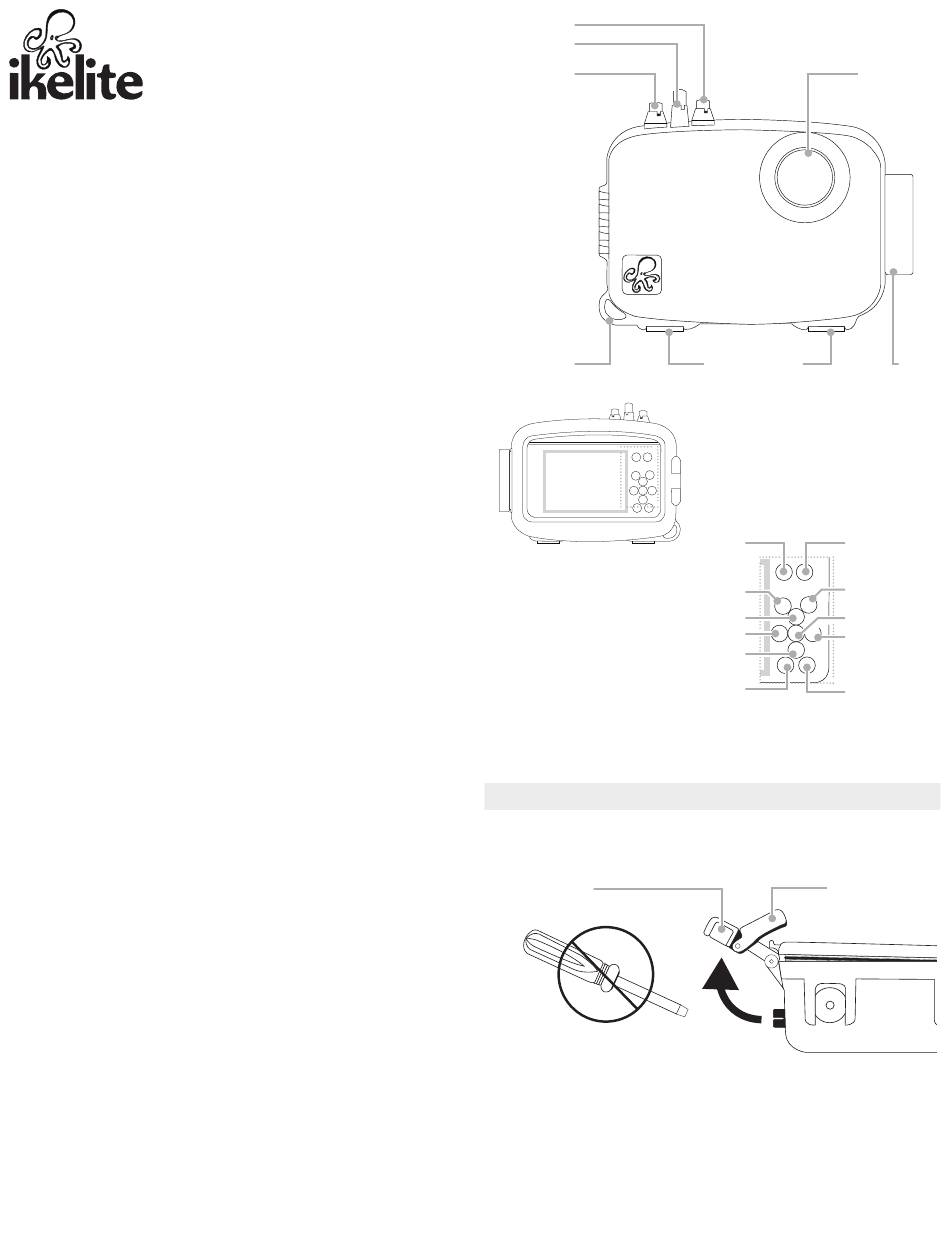

Installation and Use

Opening the Housing
1. Depress both latch buttons at the same time and rotate
the latch away from the housing.
Latch button
2. The back of the housing will be compressed by pressure
underwater or after air travel. Rotate the latch fully to
break the seal of the housing. Do not use metal objects or
tools to pry the back open.
3. Lift the latch up and away from the housing.
Lens port
Tray mounts
Zoom Zoom
wide telephoto
Mode Playback
Menu / Set
Left Right / Flash
Display
Q.Menu /
Delete
Latch
Latch
