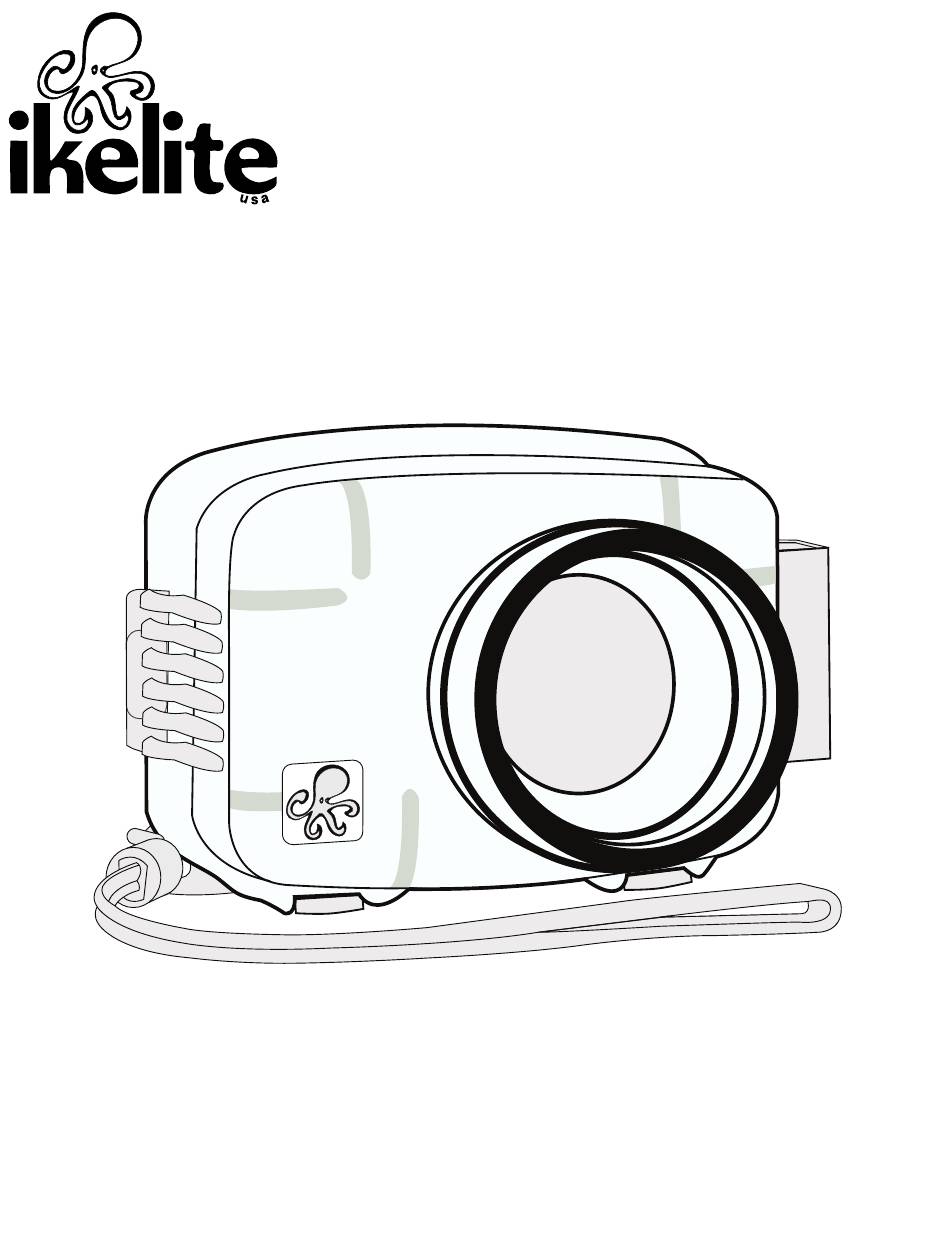

D i gi ta l H o us i n g
Supp le men tal In s tru ct io ns
6242.11 Canon S110 ULTRAcompact
Size and Weight
Width ......................6.1 in. (155mm) including controls
Height ....................4.5 in. (114mm) including controls
Depth ......................4.4 in. (112mm) including controls & lens port
Weight ....................1.4 lb (635g)
Buoyancy ................Neutrally buoyant underwater
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ikelite 6242.11
Summary of Contents for Ikelite 6242.11
- Page 1 D i gi ta l H o us i n g Supp le men tal In s tru ct io ns 6242.11 Canon S110 ULTRAcompact Size and Weight Width ......6.1 in. (155mm) including controls Height ....4.5 in. (114mm) including controls Depth ......4.4 in.
- Page 2 Initial Camera Setup Set camera mode switch to “Av” Aperture Priority. Set DR Correction to “Off” and ISO to “80.” Set White Balance to auto “AWB” and Frame to “Single Shot.” Set Light Metering to “Center Weighted Avg.” Set ND Filter to “ND Off”, and Still Image Aspect Ratio to “4:3.” Set Image Type to “JPEG”...
- Page 3 Setup Notes (continued) Camera functions can be assigned to the Control Ring by pressing the Ring Function button. Depress the Ring Function button until the desired function is highlighted in the camera LCD screen. Once the function is highlighted, it can be adjusted using the Control Ring. Refer to your camera owner’s manual for additional information.
- Page 4 Attaching the Control Ring Gear (continued) When removing the Gear, leave the Set Screws in the Gear. The Set Screws are very small and easy to lose. Extra Set Screws are included with your housing. We recommend that you leave the gear installed as it makes rotating the camera control ring easier when out of the housing.
- Page 5 Parts of the Housing - Back View Latch ULTRA compact Made in USA Lanyard 6. Flash Button 1. Ring Function Selector 7. Display 2. Movie Button 8. Playback Button 3. Exposure Comp. 9. MENU Button 4. Macro , MF, 5. FUNC./SET Button...
- Page 6 External Accessory Lenses Ikelite W-20 (6420) and W-30 (6430) Wide-Angle Conversion Lenses The front of the lens port accepts the 6420 W-20, 6430 W-30, and other 67mm threaded wide angle and macro lenses or diopters without the need for an adapter. An external wide angle conversion lens increases angle of coverage so you can get closer to the subject while still fitting everything in the frame.
- Page 7 Flex arm AutoFlash sensor Handle with rubber grip Tray (single or dual) Mounting hardware A full range of accessories is available to support your housing. Please visit www.ikelite.com to see the most current information about recommended accessories for your housing.
- Page 8 Ikelite Underwater Systems 50 West 33rd Street Indianapolis, IN 46208 USA www.ikelite.com 6242.11_Canon_S110-01-1012...
