D igi ta l Ho us i n g
Supple m en tal In s tr uc ti on s

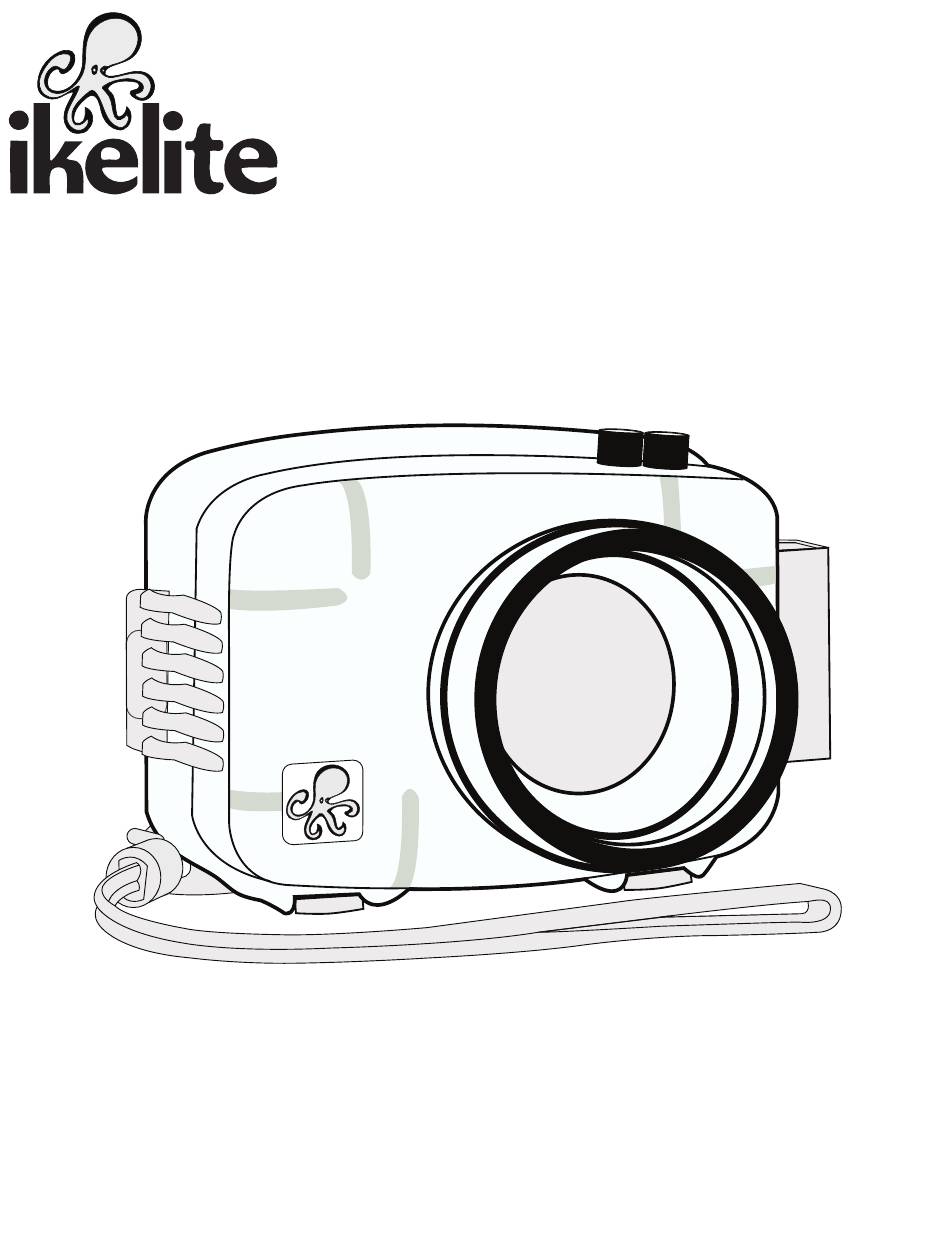

6242.12 Canon S120 ULTRAcompact
Size and Weight
Width ......................6.2 in. (157mm) including controls
Height ....................4.4 in. (112mm) including controls
Depth ......................4.4 in. (112mm) including controls & lens port
Weight ....................1.4 lb (635g)
Buoyancy ................Neutrally buoyant underwater
