Live Streaming With Obs - ClearClick HD Video Capture Box Ultimate User's Manual And Quick Manual

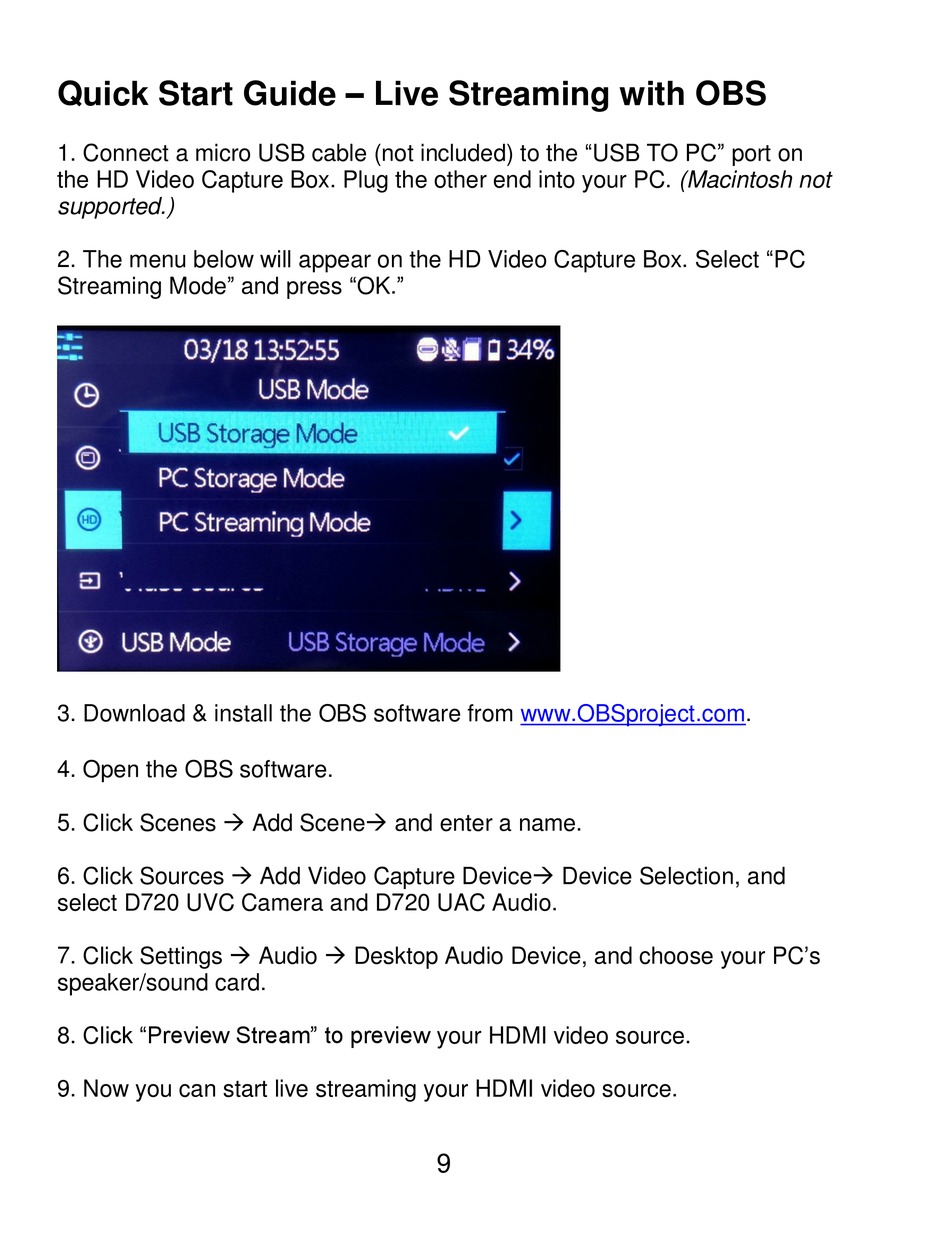

Quick Start Guide – Live Streaming with OBS
1. Connect a micro USB cable (not included) to the "USB TO PC" port on
the HD Video Capture Box. Plug the other end into your PC. (Macintosh not
supported.)
2. The menu below will appear on the HD Video Capture Box. Select "PC
Streaming Mode" and press "OK."
3. Download & install the OBS software from www.OBSproject.com.
4. Open the OBS software.
5. Click Scenes  Add Scene and enter a name.
6. Click Sources  Add Video Capture Device Device Selection, and
select D720 UVC Camera and D720 UAC Audio.
7. Click Settings  Audio  Desktop Audio Device, and choose your PC's
speaker/sound card.
8. Click "Preview Stream" to preview your HDMI video source.
9. Now you can start live streaming your HDMI video source.
9
