PowerBrick Ultra Plus V3
PowerBrick™Ultra Plus V3
Quick Guide
Acura Embedded Systems Inc.
Acura Embedded Systems Inc.
Edition 2.0
Industrial Computer
with Intel® Gen6th Core™ i5
1. OVERVIEW
PowerBrick Ultra Plus V3 is based on an Intel® Gen 6th Core™i5 6200U processor
with Intel® HD Graphics 5500 and Intel® QM77 chipset. Its default 8 GB can earily
upgrade to 16 GB. The design focuses on elements essential for a variety of industrial
applications and environments excluding unneccesary hardware. The architecture is
modular which allows for upgrading and expansions.
2. MAIN FEATURES
•

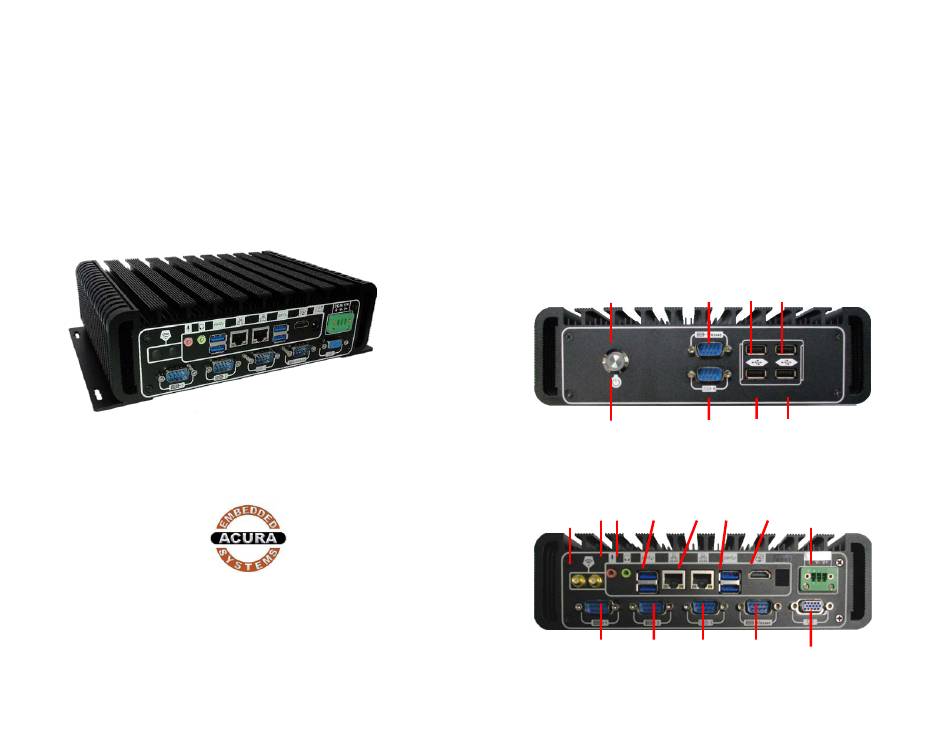

PowerBrick Ultra Plus front Interface
Power Button
Rugged
•
PowerBrick Ultra Plus rear Interface
WiFi/BT (Main MIC LineOut
/Aux) Antenna
COM5
USB 2.0 USB 2.0
(RS485)
LED
COM6
USB 2.0 USB 2.0
(RS485)
USB 3.0 LAN USB 3.0 HDMI DC Power in
COM1
COM2
COM3
COM4
(RS485)
1
Quick Guide
( 9~30VDC )
VGA
www.acuraembedded.com
Advertisement
Related Manuals for Acura Embedded Systems PowerBrick Ultra Plus V3
Summary of Contents for Acura Embedded Systems PowerBrick Ultra Plus V3
- Page 1 1. OVERVIEW PowerBrick™Ultra Plus V3 PowerBrick Ultra Plus V3 is based on an Intel® Gen 6th Core™i5 6200U processor with Intel® HD Graphics 5500 and Intel® QM77 chipset. Its default 8 GB can earily upgrade to 16 GB. The design focuses on elements essential for a variety of industrial applications and environments excluding unneccesary hardware.
- Page 2 PowerBrick Ultra Plus V3 Quick Guide POWER INPUT CONNECTOR System Onboard Intel Gen 6 Core i5 6200U Chipset INTEL QM77 Memory 1 x 8G DDR4L to 16GB. Graphics Intel HD Graphics 5500 VGA+HDMI, Synchronous or asynchronous display Resolution VGA maximum:1680x1050...
