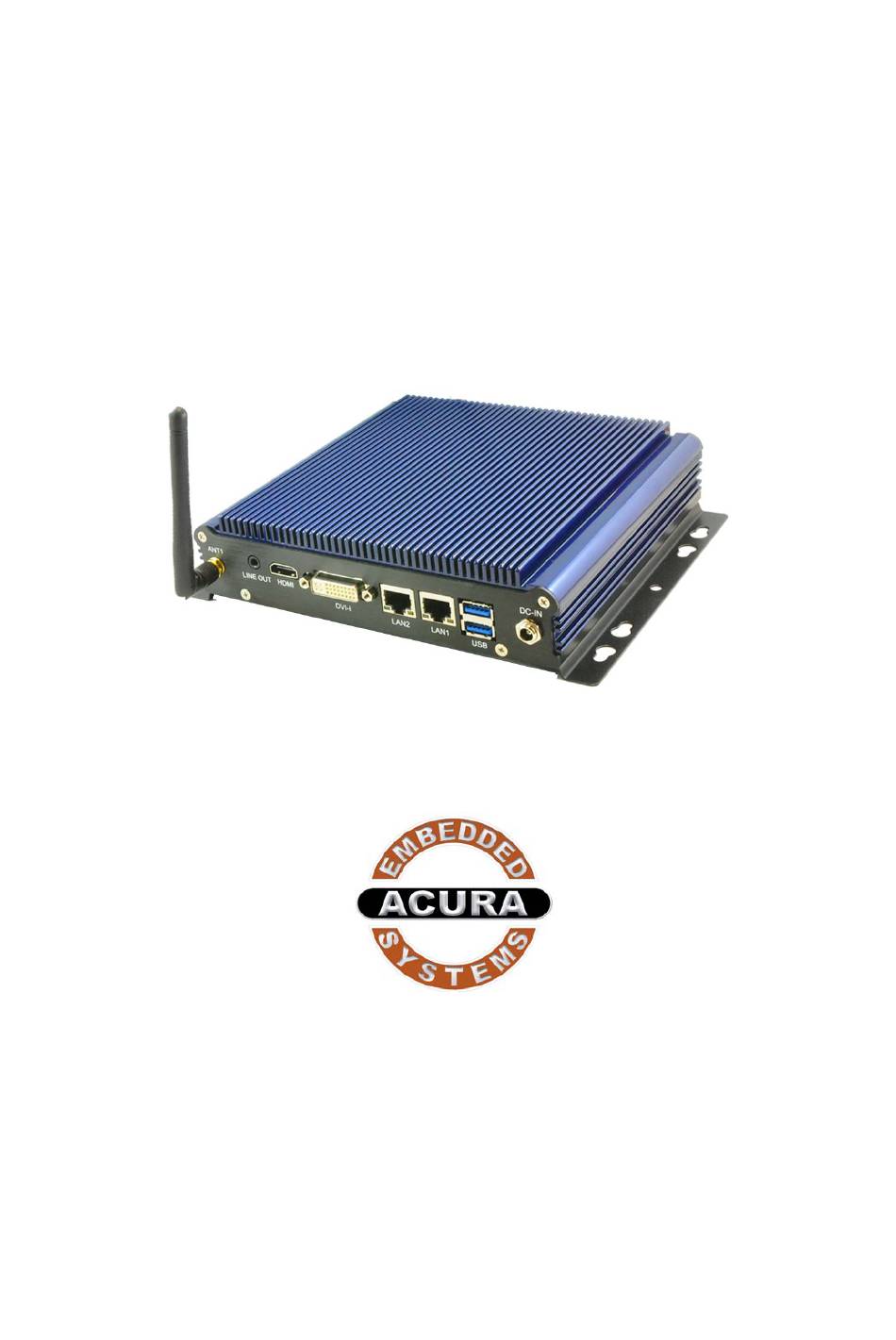

- Page 1 PowerBrick™Ultra User's Manual Edition 4.0 Slim and Rugged Industrial Computer with Intel® Gen4 Core™ i7-4650U Acura Embedded Systems Inc.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ........................Model Specification....................System's I/O....................... System's Dimensions....................BIOS Settings ........................ Enter The BIOS ......................Main..........................Advanced........................CPU Configuration..................... Super I/O Configuration ..................Hardware Health Configuration................Chipset ........................Boot ..........................Security ........................2.10 Exit ..........................User’s Manual... -
Page 3: Introduction
1.0 Introduction 1.0 INTRODUCTION Model Specification System Intel Gen4 /Core i3 or i7-4650U CPU 1 x DDR3L‐1600 SO‐DIMM up to 8GB (Default 4GB) Memory Graphics Intel HD Graphics 2 x Serial ATA ports with 6GB/s HDD Transfer Rate 2 x Intel i210‐AT Gigabit Ethernet LAN Chipset Watchdog(Optional) 1 ~ 255 level reset Support 3 x RS‐232 Ports (2 x RS232/422/485) -
Page 4: System's I/O
1.0 Introduction Storage 1 x 2.5” drive bay for SATA Type Hard Disk Drive / SSD Type 1 x SATA DOM Environment ‐30 ~ 60ºC, ambient w/ air Operating Temp. ‐40 ~ 85ºC Storage Temp. 10 ~ 95% @ 40ºC (non‐condensing) Relative Humidity DC 12V Input Power Input... -
Page 5: System's Dimensions
1.0 Introduction 1.3 System's Dimensions (Unit: mm) User’s Manual Page 3... -
Page 6: Bios Settings
2.0 BIOS 2.0 BIOS Settings 2.1 Enter The BIOS Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press (DEL) key to enter Setup. Press DEL to enter SETUP If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. -
Page 7: Main
2.0 BIOS Sub‐Menu If you find a right pointer symbol (as shown in the right view) appears to the left of certain fields that means a sub‐menu can be launched from this field. A sub‐menu contains additional options for a field parameter. You can use arrow keys ( ↑↓)to highlight the field and press <Enter>... -
Page 8: Advanced
2.0 BIOS 2.3 Advanced 2.4 CPU Configuration User’s Manual Page 6... -
Page 9: Super Io Configuration
2.0 BIOS » Limit CPUID Maximum The CPUID instruction of some newer CPUs will return a value greater than 3. The default is Disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur. - Page 10 2.0 BIOS » COM1 RS232/422/485 Select User’s Manual Page 8...
- Page 11 2.0 BIOS » COM2 RS232/422/485 Select User’s Manual Page 9...
-
Page 12: Hardware Health Configuration
2.0 BIOS 2.6 Hardware Health Configuration These items display the current status of all monitored hardware devices/components such as voltages, temperatures and all fans' speeds. 2.7 Chipset PCH‐IO Configuration User’s Manual Page 10... - Page 13 2.0 BIOS System Agent (SA) Configuration » Graphics Configuration User’s Manual Page 11...
- Page 14 2.0 BIOS User’s Manual Page 12...
-
Page 15: Boot
2.0 BIOS 2.8 Boot » 1st/2nd/3rd Boot Device The items allow you to set the sequence of boot devices where BIOS attempts to load the disk operating system. » Try Other Boot Devices Setting the option to [Enabled] allows the system to try to boot from other device if the system fail to boot from the 1st/2nd/3rd boot device. -
Page 16: Security
2.0 BIOS 2.9 Security » Administrator Password Administrator Password controls access to the BIOS Setup utility. These settings allow you to set or change the administrator password. » User Password User Password controls access to the system at boot. These settings allow you to set or change the user password. -
Page 17: Exit
2.0 BIOS 2.10 Exit » Save Changes and Exit Save changes to CMOS and exit the Setup Utility. » Discard Changes and Exit Abandon all changes and exit the Setup Utility. » Discard Changes Abandon all changes and continue with the Setup Utility. »... - Page 18 With the unique set of products, Acura Embedded Systems remains committed to its goal of providing trouble-free and customer-friendly service. A special customer service unit has been set up specifically to cater to our esteemed customers' needs. Technical Support: For technical support contact your Salesperson support@acuraembedded.com...
