PowerBrick™6.0-i7
Quick Guide
Edition 3.0
Acura Embedded Systems Inc.
Acura Embedded Systems Inc.
Small and rugged
Industrial Computer
with Intel® Gen4 Core™ i7
1. OVERVIEW
As a rugged and powerful computer, PowerBrick6.0-i7 is based on an Intel® Genera-
tion4 Core™i7 4650U processor and an Intel® HD Graphics 5000 accelerating
chip.Its two Removable Dual SATA Storage slots which have RAID feature allow to
realize mirroring disk with two fast SSD hard drives. Also, Its memory can earily
upgrade to 16 GB. The design focuses on elements essential for a variety of industrial
applications and environments excluding unneccesary hardware. The architecture is
modular which allows for upgrading and expansions.
2. MAIN FEATURES
•

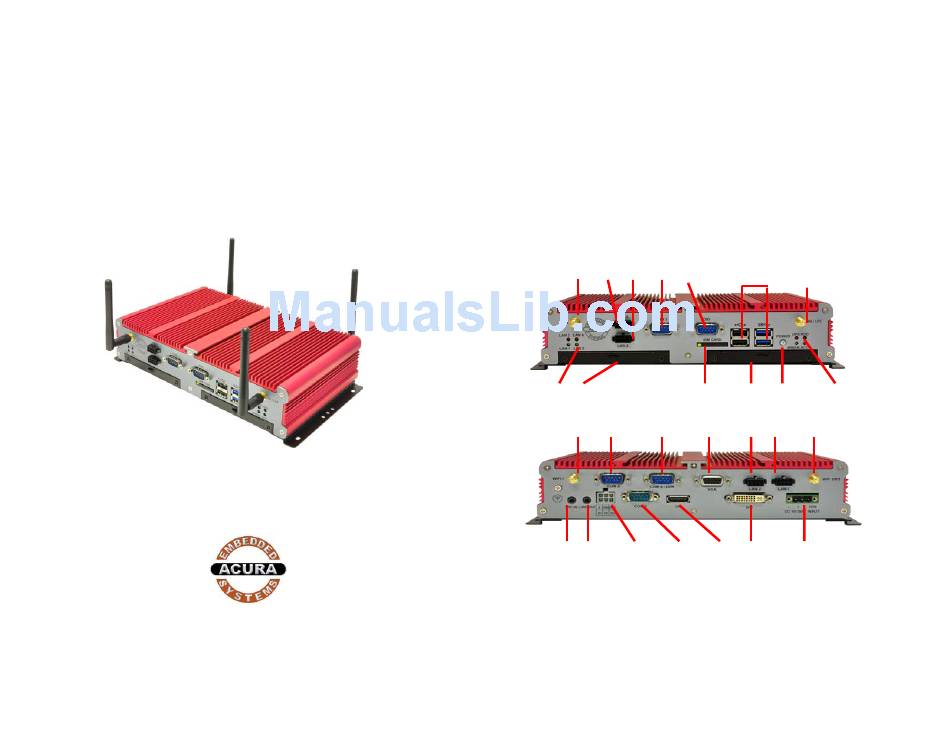

Power Brick 6.0-i7 front Interface
GPS Antenna LAN3 LAN4 COM3 DIO
LED SSD1
•
Power Brick 6.0-i7 rear Interface
WiFi/BT (Aux) Antenna COM2 COM4/DVR VGA in LAN2 LAN1 WiFi/BT (Main) Antenna
MIC Line Out DC Power Out COM1
System
CPU Intel Gen 4 Core i7‐4650U 1.7GHz up to 3.3Ghz
Chipset QM87
Memory
2 x DDR3L 1600 MHz SO‐DIMM up to 16 GB
LAN Chipset Intel I210‐AT Gb/s Ethernet Controllers Onboard
Support PXE and WOL
Audio Realtek ALC662 HD Codec onboard
Watchdog Watchdog Timer Support, Offer 1 – 255 Step(Optional)
Quick Guide
USB3.0/2.0 3G Antennas
SIM Card SSD2 Power Button LED
DP DVI DC Power in
