- Page 1 Murphy PowerCore Configurations Installation Manual 1900003 Section 80 2019-01-18...
- Page 2 In order to consistently bring you the highest quality, full-featured products, we reserve the right to change our specifications and designs at any time. The latest version of this manual can be found at enovationcontrols.com. BEFORE BEGINNING INSTALLATION OF THIS MURPHY PRODUCT: •...
-
Page 3: Table Of Contents
Table of Contents USB Overview / Requirements ....................5 PowerCore Products USB Configuration Loading Methods ..................5 USB Thumb Drive Necessary PowerCore Harnessing for USB Loading Loading Configurations with USB MPC20 & MPC10 Older Method CAN Overview / Requirements ....................8 Necessary PowerCore Harnessing for CAN Loading Section 80 1900003 2019-01-18... - Page 4 - THIS PAGE INTENTIONALLY LEFT BLANK - Section 80 1900003 2019-01-18...
-
Page 5: Usb Overview / Requirements

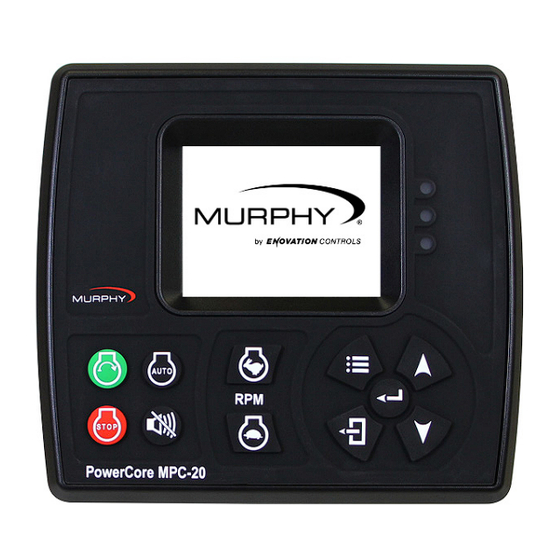

USB Overview / Requirements PowerCore Products The PowerCore products include the MPC20, MPC10, and the TEC-10. The MPC’s are also used in the ML series panels; ML2000 and ML1000 respectively. USB Configuration Loading Methods There are two methods used to load configurations; USB or CAN bus. However, the TEC-10 can only be loaded over the CAN bus. -
Page 6: Loading Configurations With Usb
Loading Configurations with USB There are two types of configuration files: configuration.gciBin, and configurationFull.gciBin. It is recommended to use the larger Full file, which includes the application portion of the configuration. There are two methods for loading configurations using the USB port. If the configuration is PowerVision 2.9 or later, there is a Load Configuration choice in the main menu. -
Page 7: Mpc20 & Mpc10 Older Method
Step Action When Enter is pressed to confirm, the controller will begin to load the configuration. During the load, the amber LED will blink. When the load is finished, the amber and red LEDs will be blinking and the green LED will be on steady. -
Page 8: Can Overview / Requirements
Step Action When the load is complete, the green LED on the controller and the LED on the thumb drive will quit blinking and remain on. Remove the thumb drive, and the controller will exit out of the bootload mode. Power cycle the controller to return to normal operation. - Page 9 Step Action Click on Load Firmware. This process takes about 3 to 4 minutes. During the load, the amber LED will blink on the controller. When the load is finished, the controller will reset and return to normal operation. Section 80 1900003 2019-01-18...
