Panel Layout

1. 3. 1.

Front Panel

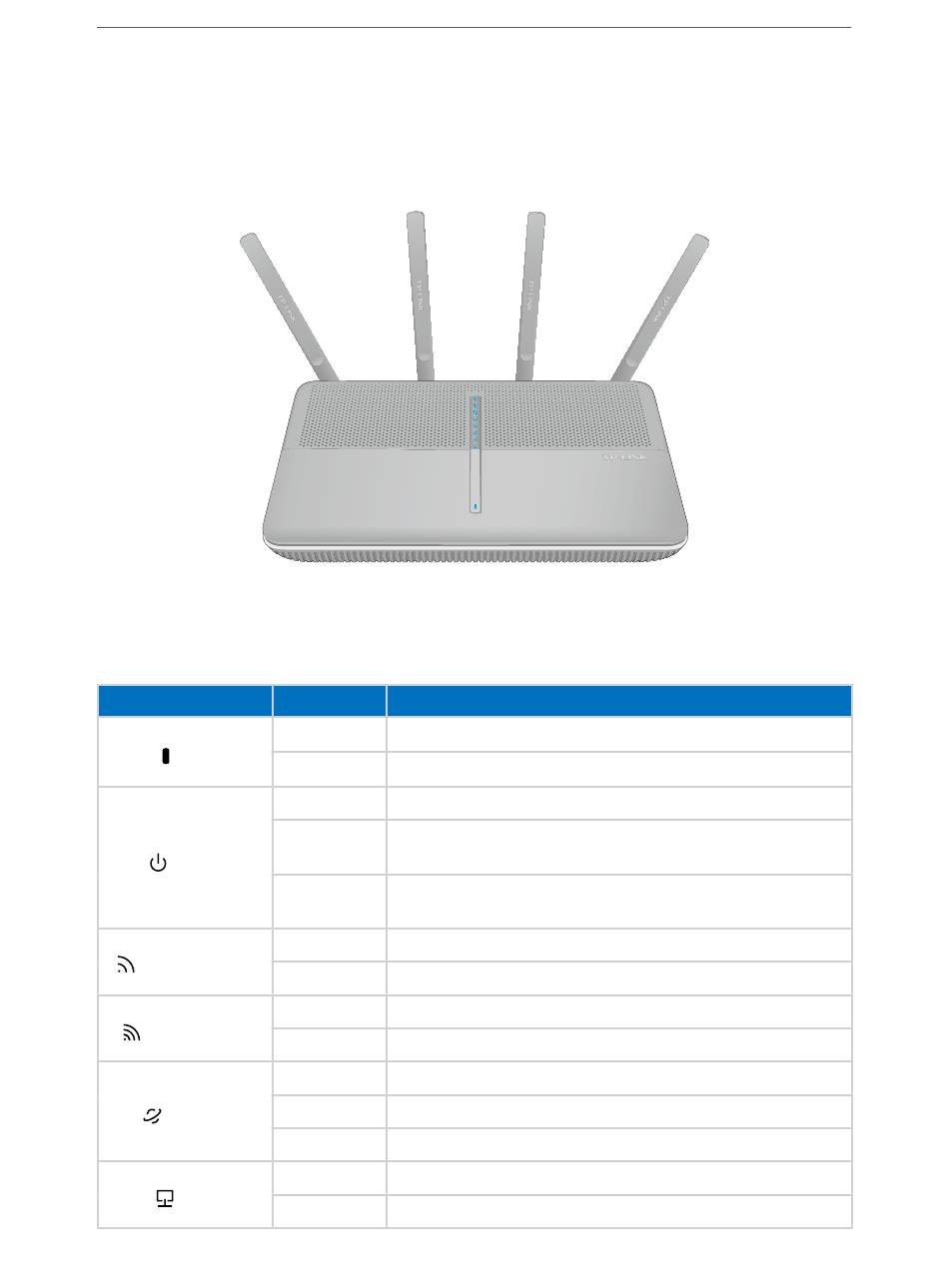

The router's LEDs are located on the top panel (view from top to bottom). You can check
the router's working status by following the LED Explanation table.
Name
(LED)
(Power)
(Wireless 2.4GHz)
(Wireless 5GHz)
(Internet)
(LAN)

LED Explanation

Status
All LEDs work normally.
On
All LEDs are off without affecting the router's performance.
Off
On System initialization completes.
System initialization or firmware upgrade is in process. Do not
Flashing
disconnect or power off the router.
Power is off. Please ensure that the power adapter is connected
Off
correctly.
On The wireless 2.4GHz band is working properly.
Off The wireless 2.4 GHz band is disabled.
On The wireless 5GHz band is working properly.
Off The wireless 5GHz band is disabled.
White The router is connected to the Internet.
Orange The WAN port is connected, but there is no Internet connection.
Off The WAN port is not connected.
On At least one LAN port is connected.
Off No LAN port is connected.
