TP-Link Archer C3150 Quick Installation Manual

Quick Installation Guide

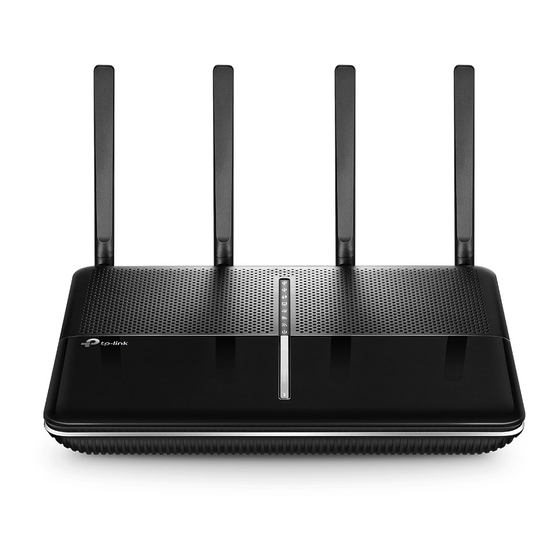

AC3150 Wireless MU-MIMO Gigabit Router
C3150

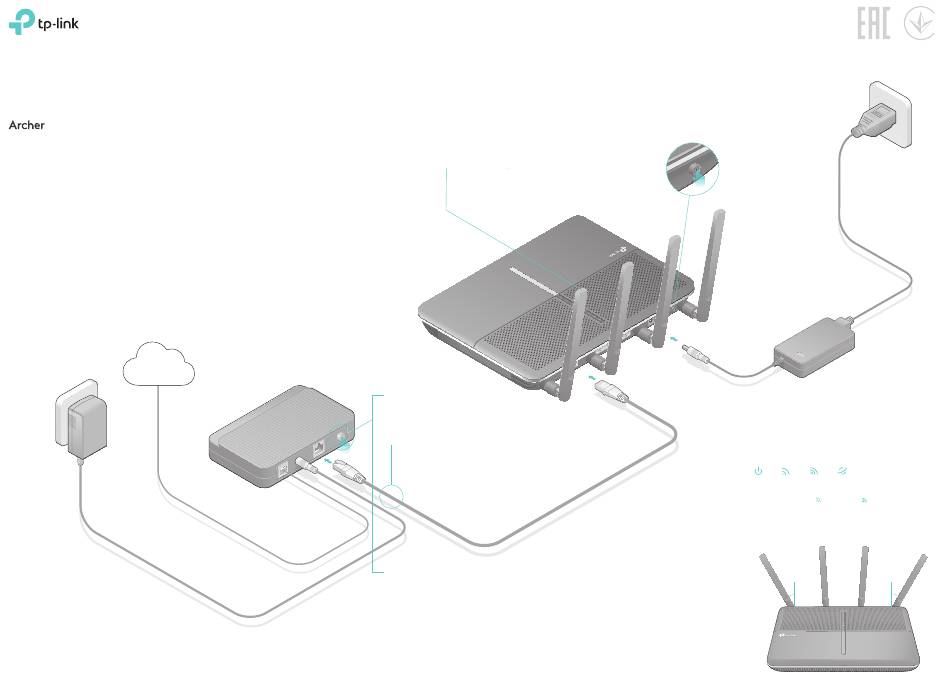

Connect the Hardware
If your internet connection is through an Ethernet cable from the wall
instead of through a DSL / Cable / Satellite modem, connect the Ethernet
cable directly to the router's Internet port, then follow steps 1, 5 and 6 to
complete the hardware connection.
Internet
Power adapter
Modem
1
Install the antennas.
Router
2
Turn off the modem, and
remove the backup battery
if it has one.
3
Connect the modem to the
Internet port on your router
with an Ethernet cable.
4
Turn on the modem, and
then wait about 2 minutes
for it to restart.
5
Connect the power
adapter to the router Power adapter
and turn on the router.
6
Verify that the following LEDs turn solid before
continuing with the configuration.
Power 2.4GHz 5GHz Internet
On On On On
Note: If the 2.4GHz LED and 5GHz LED are off, please press the
Wi-Fi On/Off button on the side panel for 2 seconds, then both
LEDs should turn stable in a few seconds.
For optimum performance, orient the four
antennas as shown in the drawing below.
30° 30°
