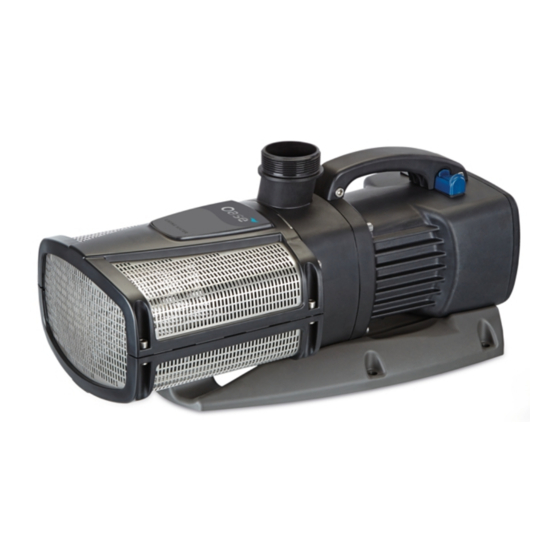

Oase Aquarius Eco Expert 22000 Operating Instructions Manual
Hide thumbs
Also See for Aquarius Eco Expert 22000:
- Operating instructions manual (357 pages) ,
- Operating instructions manual (165 pages) ,
- Operating instructions manual (189 pages)
Related Manuals for Oase Aquarius Eco Expert 22000
Summary of Contents for Oase Aquarius Eco Expert 22000

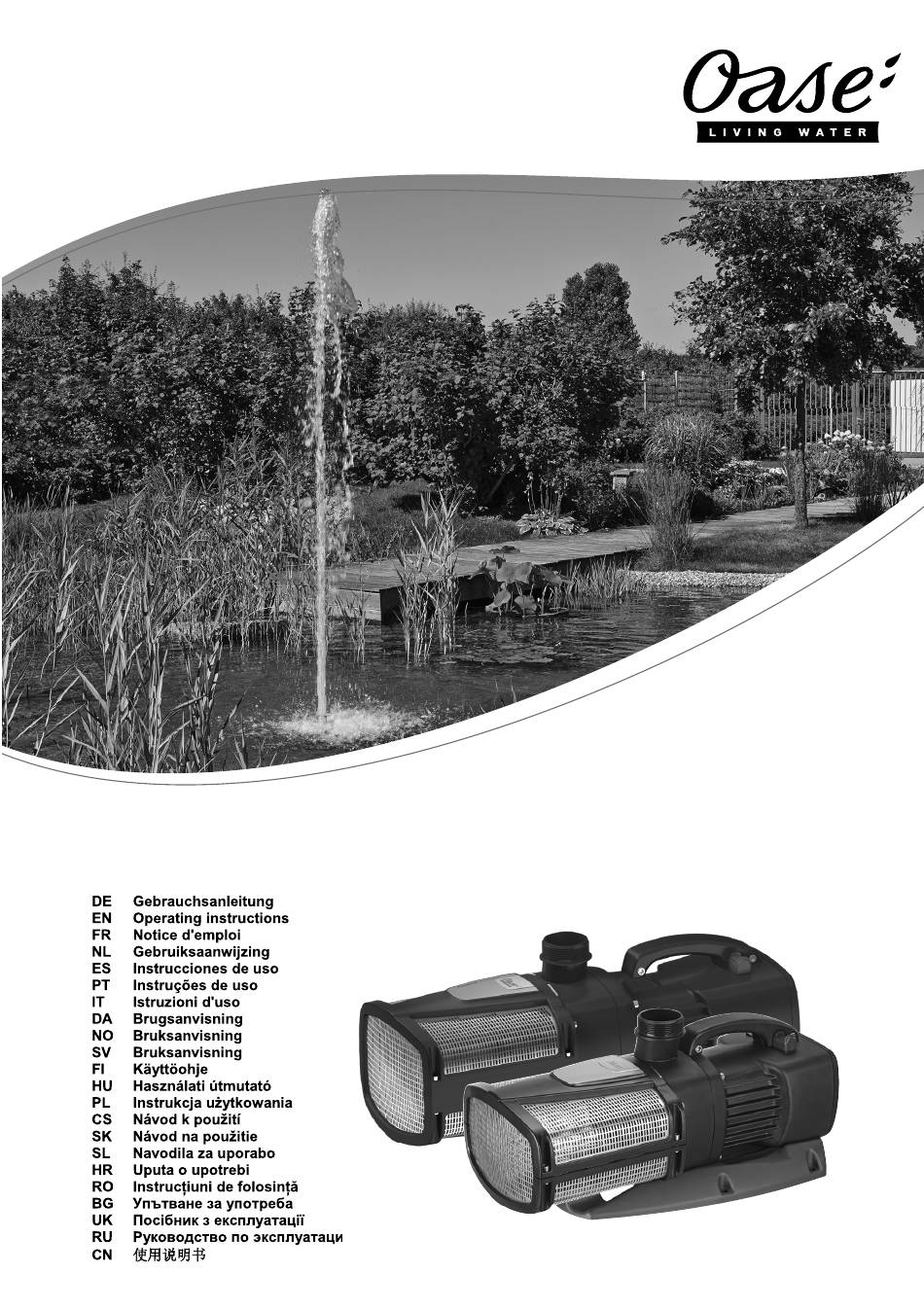

- Page 1 Downloaded from www.watergardeningdirect.com Aquarius Eco Expert Eco Expert 22000/28000/36000/44000 22000/28000...
- Page 2 Downloaded from www.watergardeningdirect.com - - ARS0033 ARS0034 ARS0025 ARS0026...
- Page 3 Downloaded from www.watergardeningdirect.com - - ARS0027 ARS0030...
- Page 4 Downloaded from www.watergardeningdirect.com - - ARS0029 ARS0028...
- Page 5 Downloaded from www.watergardeningdirect.com - - ARS0031...
- Page 6 Downloaded from www.watergardeningdirect.com - - PLX0004 FMR0031...
- Page 7 Downloaded from www.watergardeningdirect.com - EN - - EN - Translation of the original Operating Instructions W A R N I N G • This unit can be used by children aged 8 and above and by per- sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved.
-
Page 8: Safe Operation
• Only open the unit housing or its attendant components if this is explicitly specified in the operating instructions. Information about this operating manual Welcome to OASE Living Water. You made a good choice with the purchase of this product Aquarius Eco Expert 22000/28000/36000/44000. -
Page 9: Scope Of Delivery
When the Dynamic Function is activated, the pump is continuously con- trolled with these values. Intended use Aquarius Eco Expert 22000/28000/36000/44000, referred to as "unit", may only be used as specified in the following: • Pumping of normal water for creating fountains. • Operate in accordance with instructions. -
Page 10: Installation And Connection
• Ensure that the pump is in a secure and stable position. Connecting the hose • Aquarius Eco Expert 22000/28000: On the outlet, use the 50 mm hose connector or the 38 mm hose connector. • Aquarius Eco Expert 36000/44000: On the outlet, only use the 50 mm hose connector. -
Page 11: Install The Unit At A Dry Place
Install the unit at a dry place • Aquarius Eco Expert 22000/28000: Hoses or pipes can be connected at the inlet and outlet. Recommendation: – Up to 5 m length: Use 50 mm (2") hose connectors and hoses. (→ Connecting the hose) –... -
Page 12: Integrating The Pump In The Egc Network
Downloaded from www.watergardeningdirect.com - EN - Integrating the pump in the EGC network K The pump can be integrated in an EGC network. The InScenio FM-Master WLAN EGC and all EGC compatible units are connected with each other via Connection Cable EGC in an EGC network. A terminal resistor has to be fitted to the EGC-OUT of the last EGC compatible unit in order to terminate the network. -
Page 13: Remedy Of Faults
• Do not use aggressive cleaning agents or chemical solutions as they could attack the housing or impair the function of the unit. • Recommended cleaning agent for removing stubborn limescale deposits: – Pump cleaning agent PumpClean from OASE. – Vinegar- and chlorine-free household cleaning agent. • After cleaning, thoroughly rinse all parts in clean water. -
Page 14: Wear Parts
The impeller unit is guided in the motor block by a bearing. This bearing is a wear part and should be changed at the same time as the impeller unit. • Changing the bearing requires specialist knowledge and tools. Have the bearing changed by your OASE specialist dealer or send the pump to OASE. - Page 15 Downloaded from www.watergardeningdirect.com Anschlussspannung Leistungsaufnahme Eingang Ausgang Kabellänge Abmessungen Gewicht Type Mains voltage Power consumption input output Cable length Dimensions Weight Type Tension de raccordement Puissance absorbée arrivée sortie Longueur de câble Dimensions Poids Type Aansluitspanning Vermogensopname input output Kabellengte Afmetingen Gewicht Tipo...
- Page 16 Downloaded from www.watergardeningdirect.com Getauchte Aufstellung: Trockenaufstellung: Trockenaufstellung: Förderleistung Wassersäule Tauchtiefe Zulässiger Wassertemperaturbereich Max. zulässige Umgebungs- Max. zulässige Umgebungs- temperatur bei natürlicher Kon- temperatur bei Zwangskühlung vektion Type Submerged installation: Dry installation: Dry installation: Flow rate Head height Immersion depth Permissible water temperature range Max.
- Page 17 Downloaded from www.watergardeningdirect.com Instalace s ponořením Instalace v suchu: Instalace v suchu: Dopravní výkon Vodní sloupec Hloubka ponoření Přípustné teplotní rozmezí vody Max. přípustná okolní teplota u Max. přípustná okolní teplota u přirozené konvekce vynuceného chlazení Inštalácia vo vode: Inštalácia na suchu: Inštalácia na suchu: Dopravný...
- Page 18 Downloaded from www.watergardeningdirect.com Empfohlene Wasserwerte ph-Wert Härte Freies Chlor Chloridgehalt Salzgehalt Gesamttrockenrückstand Temperatur Recommended water quality pH value Hardness Free chlorine Chloride content Salt content Overall dry residue Temperature Valeurs d'eau recommandées Valeur pH Dureté Chlore libre Teneur en chlorure Teneur en sel Résidu sec total Température...
- Page 19 Downloaded from www.watergardeningdirect.com Staubdicht. Wasserdicht bis 4 m Vor direkter Sonneneinstrahlung Nicht mit normalem Hausmüll Achtung! Tiefe schützen. entsorgen! Lesen Sie die Gebrauchsanlei- tung Dust tight. Submersible to 4 m Protect from direct sun radiation. Do not dispose of together with Attention! depth.
- Page 20 Downloaded from www.watergardeningdirect.com...
