Summary of Contents for Oase ProfiClear Guard

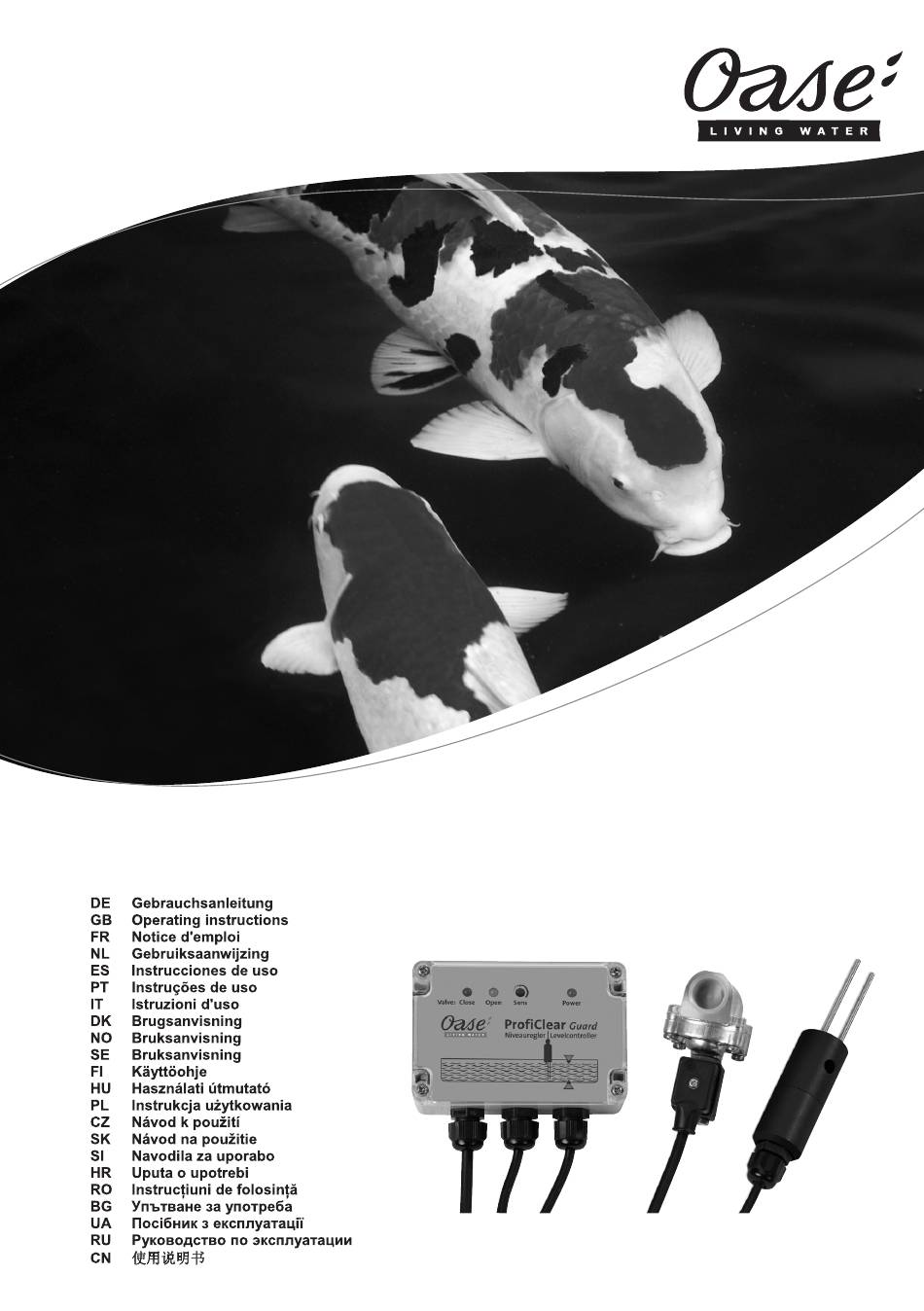

  • Page 1 Downloaded from www.watergardeningdirect.com ProfiClear Guard...
  • Page 2 Downloaded from www.watergardeningdirect.com...
  • Page 3 Downloaded from www.watergardeningdirect.com...

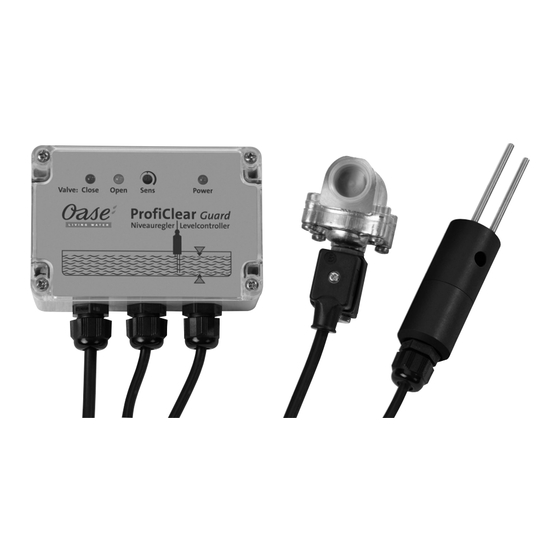

  • Page 4 Downloaded from www.watergardeningdirect.com Valve: Close Open Sens Power Pr of i Cl ear Guar d Niv eaur egler elc o ntroller...
  • Page 5 Downloaded from www.watergardeningdirect.com...

  • Page 6: Scope Of Delivery

    Information about these operating instructions Welcome to OASE Living Water. You made a good choice with the purchase of this product ProfiClear Guard. Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit.

  • Page 7: Safety Information

    Downloaded from www.watergardeningdirect.com - GB - The level control unit in conjunction with the level sensor functions as follows The level control unit is permanently connected to the level sensor, the electrodes of which are immersed in the pond to be monitored. The level control unit is also connected to the solenoid valve. The level control unit generates a measuring signal which is used to monitor the voltage applied between the elec- trodes of the level sensor.

  • Page 8: Safe Operation

    • Complete the installation with a free flowing outlet (with air gap separation). OASE recommends: Conduct the water flowing out of the free flowing outlet (3) (with air gap separation) through a DN 50 pipe (9) or larger, or via a water course into the pond.

  • Page 9: Protective Measures

    • Fit the fastening flange (16) to a suitable support (post, stone) using 2 screws (not included in the delivery scope). OASE recommends: Fit the level probe so that it is protected from the wind and waves, for example inside a riser pipe.

  • Page 10: Remedy Of Faults

    Sensitivity of the level sensor too low Increase the sensitivity setting of the level probe Solenoid valve defective Send solenoid valve to an OASE dealer for re- pair Solenoid valve opens frequently Pond is losing water through a leak Check pond for leaks...

  • Page 11: Maintenance

    Downloaded from www.watergardeningdirect.com - GB - Maintenance • Check the water level of the pond and the function of the free flowing outlet (with air gap separation) and overflow regularly several times a year. • Regularly and several times a year: Check the level sensor for deposits and clean with a brush if necessary. Storage/Over-wintering The unit is not frost proof.
  • Page 12 Downloaded from www.watergardeningdirect.com Staubdicht. Wasserdicht Staubdicht. Strahl- Vor direkter Son- Bei Frost, das Gerät Im Inneneinsatz ver- Achtung! wassergeschützt. neneinstrahlung deinstallieren! wenden. Lesen Sie die Ge- schützen brauchsanleitung Dust tight. Water tight Dust tight. Water-jet Protect from direct Remove the unit at For indoor use.
  • Page 13 Downloaded from www.watergardeningdirect.com PCL0062...
  • Page 14 Downloaded from www.watergardeningdirect.com...
