P S
HYSICAL PECIFICATIONS
P L
IN OCATIONS

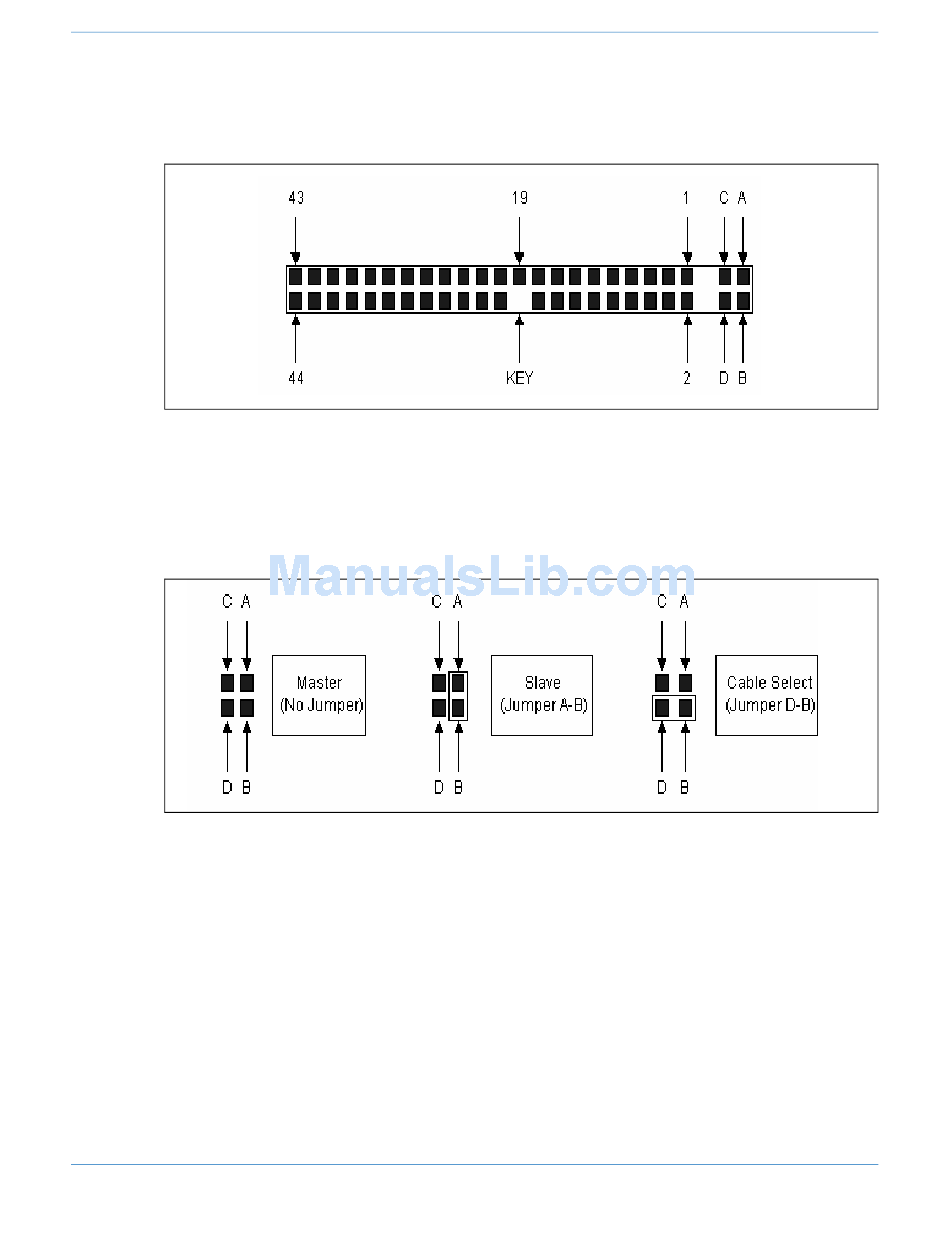

The following diagram identifies the pin locations of the 2.5" PATA Drive.
J S
UMPER ETTINGS
The following diagram defines the SiliconDrive III 2.5" PATA Drive jumper
settings.
This document and the information contained within it is confidential and proprietary to SiliconSystems, Inc.
5000D-00DSR PRELIMINARY
SSD-D

Figure 2: Pin Locations

Figure 3: Jumper Settings
