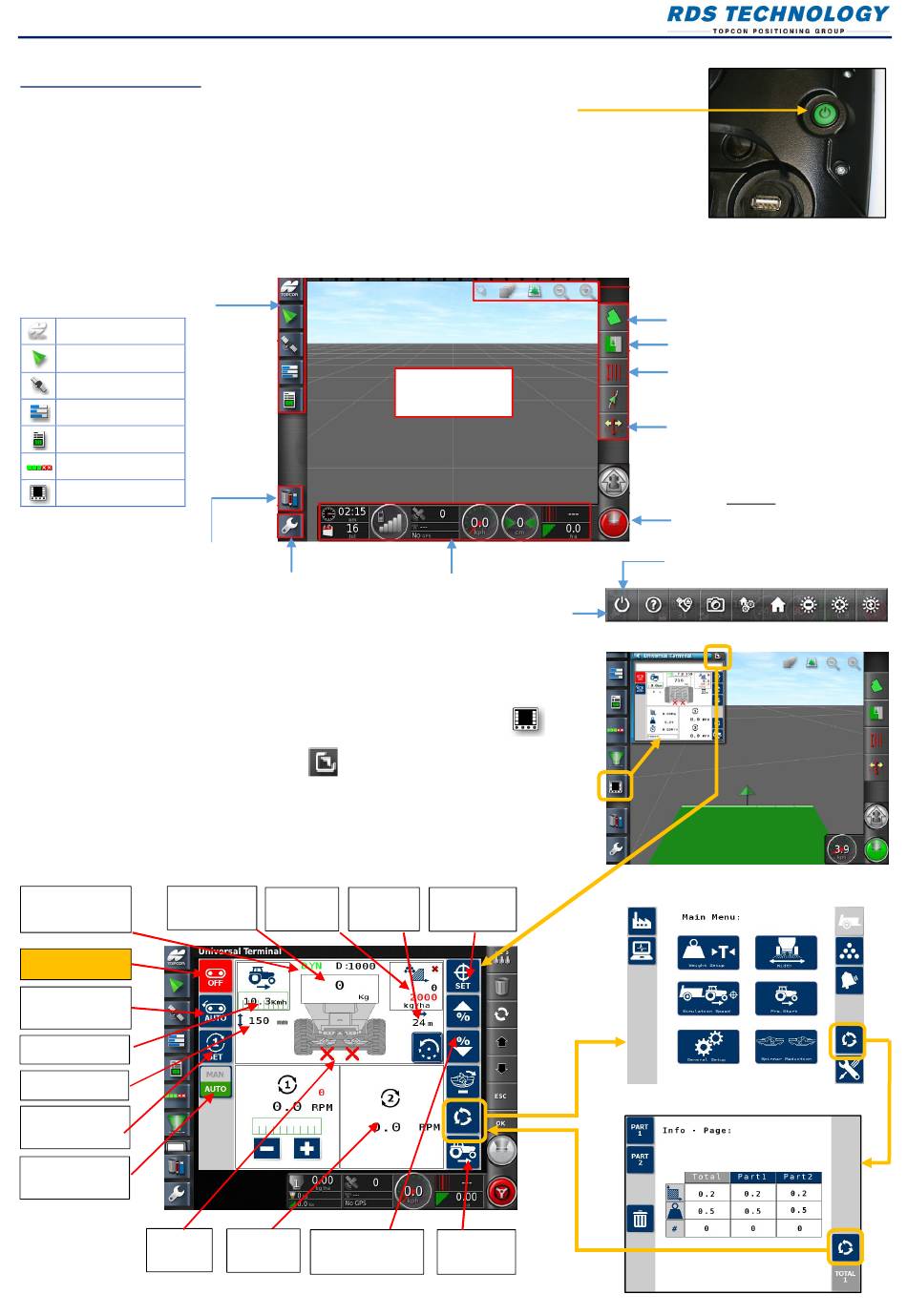

X25 APOLLO II QUICK START GUIDE
Startup and Overview
1. Press and Hold the Green button on the rear of the console for a few seconds.
2. Scroll to the base of the warning screen and if you agree, select 'YES'.
NOTE: Selecting 'Yes' confirms your understanding and accepts your responsibility for liabilities
described in the Warning Screen.
3. The console then displays the X25 Home screen, indicating the position and direction of the
vehicle and its implement as a moving map display.
X25 Home screen
NAVIGATION toolbar : Opens miniviews
to access further system options e.g.
System info
Guidance
GPS info
Diagnostics
Job info
Auto section control
UT (Apollo app)
Inventory Manager:
Manages data on
vehicles and jobs
4 If the Apollo application was running when the console was last shut down, then
on startup the console will automatically default to the Universal Terminal (UT)
application window displaying the Apollo operating screen. Otherwise, swipe up
or down the navigation bar if necessary and select the ISOBUS UT icon
5. The Apollo software is uploaded from the implement ECU, after which a mini-view
of the application is displayed. Touch
to maximise the application window.
Apollo Home screen
Calibration Product
mode remaining
Master On-Off
Rate Control
mode
Forward Speed
Gate Height
Set Spinner
Speed
Spinner Control
Mode
Work
Status
ISSUE A
Setup menu Dashboard: Provides selected information to
monitor system status / performance. Swipe
upwards to display the CONSOLE toolbar.
or swipe the mini-view from left to right
Target Working
Rate Width
Spinner Vary application
Speed
rate
RDS PT NO. S/DC500-10-
View controls
Moving map
display
.
Set Target
Rate
Pre-Start
GUIDANCE toolbar: Provides
tools used to control guidance
FIELD menu
JOB menu
GUIDELINE menu
NUDGE menu
Master Switch
Activates coverage on the
guidance screen. (NOTE: It does
not switch the spreader on /off)
Console Power Off
Settings
Totals
