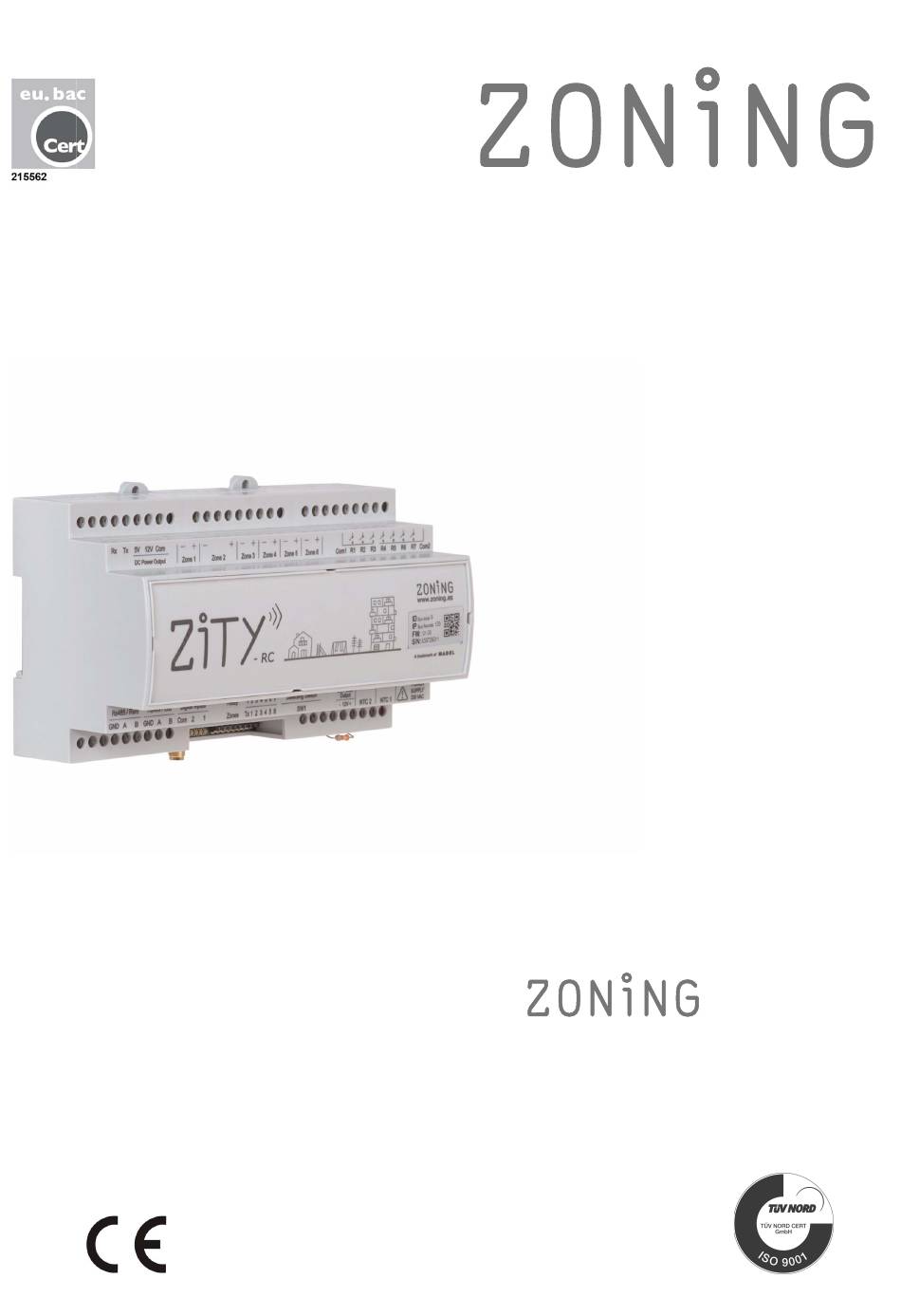

ZITY zoning system
Technical and Installation
Manual
Technical Support Service:
P.O. BOX 5
08540 Centelles (Barcelona)
Tel. (+0034) 902 550 290
T +34 93 889 80 91
www.zoning.es

Advertisement

loading

Summary of Contents for Zoning Zity

  • Page 1 ZITY zoning system Technical and Installation Manual Technical Support Service: P.O. BOX 5 08540 Centelles (Barcelona) Tel. (+0034) 902 550 290 T +34 93 889 80 91 www.zoning.es...
  • Page 2: Table Of Contents

    Frequency inhibitors and radio equipment operating in a permanent transmission mode in the same frequency band (433 MHz) may impair the normal operation of the ZONING. The system is designed to work on two different frequencies (433.92 and 434.33 MHz) to minimise this type of problem.
  • Page 3 ZITY, quick installation guide (for air zoning systems)* (*) For other types of installation (boiler, hybrids, VRV, etc.), see the relevant section in the detailed manual. A Connection of system components First of all, install and connect all system components, taking the following diagrams into account:...
  • Page 4 – In "Water-operated Fancoil” installations, make the connections according to the type of installation (2T, 4T, conventional or inverter fan). 5 ZITY module power supply: connect the power supply to the corresponding 230VAC/50Hz/1 terminals. B System configuration After connecting the components, configure the system: 1 First of all, connect the thermostats to the central control unit and the corresponding zone: –...
  • Page 5 ZITY, quick installation guide (for air zoning systems) • ZEBRA thermostat (communication by wires) To enter the programming: first of all switch off the thermostat (if it is a slave, by press- ing “POWER”; DOWN if it is a master, by pressing “POWER”...
  • Page 6 ZITY Central control unit Manual del usuario V 02/18...
  • Page 7 ZITY Central control unit, detailed installation manual System description The ZONING system is made up of a set of regulating This central control unit regulates the temperature in each devices for temperature control in up to 18 separate zones zone acting on the relevant gate valves and the air in centralised air conditioning and/or heating installations.
  • Page 8 Fig. 4 Interfaces NETBOX Interface The communication interface between the ZITY central control unit and the CLOUD application of the ZONING system. Allows easy and intuitive remote control of your ZONING system from any mobile device (smartphone, tablet) or Fig.
  • Page 9 ZITY Central control unit Pressure control valves ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Devices for controlling the overpressure generated in the This type of system should be installed when the duct network due to the opening and closing of the different modulation of the fan speeds controlled by the interfaces is gate valves in the zone.
  • Page 10: Connection Of System Components

    Attachment to the wall can be with screws (by lifting the Fig. 13 ZITY central control unit: attach with screws or via DIN rail rear pins of the box) or by means of the anchors for DIN rail.
  • Page 11 ZITY Central control unit Fig. 15 Control of up to 18 zones through three ZITY control centres Interconnection with the equipment, NTC sensors, digital inputs, etc., will only take place from the ZITY basic board (outputs 1 to 6). The expansion modules only manage the zones.
  • Page 12 Installation manual 2.5.A. Air duct air conditioning systems 2.5.A.1. Direct expansion equipment with interface The ZITY central control unit is connected to the air Allows automatic fan speed management according to the conditioning equipment with a communication interface zones in demand, summer/winter mode change for master from the corresponding brand (see models available).
  • Page 13 VRF Master. To do this, use the DIP 5 of SW1 of the ZITY central control unit. For other settings and connections with the VRF systems, consult the tech- nical department.
  • Page 14 Installation manual 2.5.A.5. Fan-coil 2T hydronic equipment, 0-10V Inverter fan control The ZITY central control unit is directly connected to the The NTC1 sensor is connected to the intake pipe of the fan- fan-coil and to the 2-tube battery valve. The KBY system coil to detect the water temperature.
  • Page 15 Fig. 24 Fan-coil 4T 2.5.B. Water-operated heating equipment and hybrid heating/direct expansion equipment 2.5.B.1. Water-operated heating Allows zoning of a conventional heating installation, by The NTC sensors are used as protection against discharge radiators or radiant floor. temperatures that are too high or too low.
  • Page 16 The first one is defined as the Master Central Control Unit systems separately. and the second one as Slave. Two ZITY central control units are installed, one to control the direct expansion unit (with or without gateway) and the The NTC sensors have the functionality of each of the other to control the heating system by radiators or radiant production equipment separately.
  • Page 17 2.6. RS485 / Loc –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– RS485 internal communication bus between the various This bus owns the ZITY system and it should only be used elements of the zoning system. The following items are for the items described above, do not connect it to any other connected to it: external communication system.
  • Page 18: System Configuration

    MASTER ON/OFF ON/OFF ON/OFF Fig. 29 Basic configuration of the ZOE thermostat: ZITY model central control unit, central control unit ID number, zone number and master/slave 3.1.B. ZEBRA thermostat (communication by wires) To enter the programming: first of all switch off the...
  • Page 19 3.2. Configure the central control unit The switch SW1 is used to configure the ZITY central control unit according to the type of installation and operating frequency. The DIP 8 is used to position the equipment in learning mode during Fig.
  • Page 20 Installation manual 3.3. Advanced settings of thermostats Both ZOE and ZEBRA timer-thermostats have an expert menu for setting various system parameters. 3.3.A. ZOE, expert mode settings (menu SE2) Advanced settings have the following menus: • Pr00: with timer programming / Pr01: without timer programming •...
  • Page 21 ZITY Central control unit Advanced programming of the ZOE thermostat is carried out as follows (follow the diagram in figure 32): 8 Use the “+” and “-” keys to choose the minimum 1 With the thermostat on, press “SET”, then “-” (the display shows SE2) followed by “ON/OFF”...
  • Page 22 Installation manual • Menu No. 17, activation of weekly programming. The “1”: the weekly programming defined in menu No. 1 is possible options are: activated and indicators 7 and 8 light up (fig. 3 in the manual). If you wish, the temperature can be set “0”: weekly programming is deactivated, indicator 6 during operation using the “UP”...
  • Page 23 ZITY Central control unit DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN MODE DOWN DOWN DOWN Fig. 33 ZEBRA thermostat advanced settings (menus No. 3, No. 4, No. 6, No. 7, No. 8, No. 9, No. 10, No. 11, No. 14, No. 15 and No. 17) 0.V 02/18...
  • Page 24: Start-Up

    4.3. Exit from learning mode 1 Wait for 30s and exit learning mode, positioning DIP8 in 2 Cut off the power supply of the ZITY central control unit. 4.4. Start-up in normal operating mode 1 For the system to start up in normal operating mode, make sure that DIP8 is in the ON position.
  • Page 25 ZITY Central control unit 4.6. Adjusting the overpressure gate valves If the speed modulation of the gateway or the fan-coil is not The pressure control system may be mechanical (by sufficient to balance the pressure in the duct, it is advisable counterweight) or electronic (using the KBY control).
  • Page 26: Most Common Errors

    On supplying 230 VAC to Lack of the central control unit, no voltage • Check that voltage is reaching the ZITY control LED lights up on the central unit (230VAC ±10%) control unit LED R1 in the row of relays Mode error •...
  • Page 27: Technical Characteristics

    ZITY Central control unit Technical characteristics ZEBRA Thermostat MADEL ATD hereby declares that the ZOE / ZEBRA / ZITY equipment complies with the essential requirements and • Power supply: 12 VDC any other applicable or enforceable provisions of Directives •...
  • Page 28 MADEL Air Technical Diffusion, S. A. P.O. BOX 5 08540 Centelles (Barcelona) T +34 93 889 80 91 www.zoning.es...
