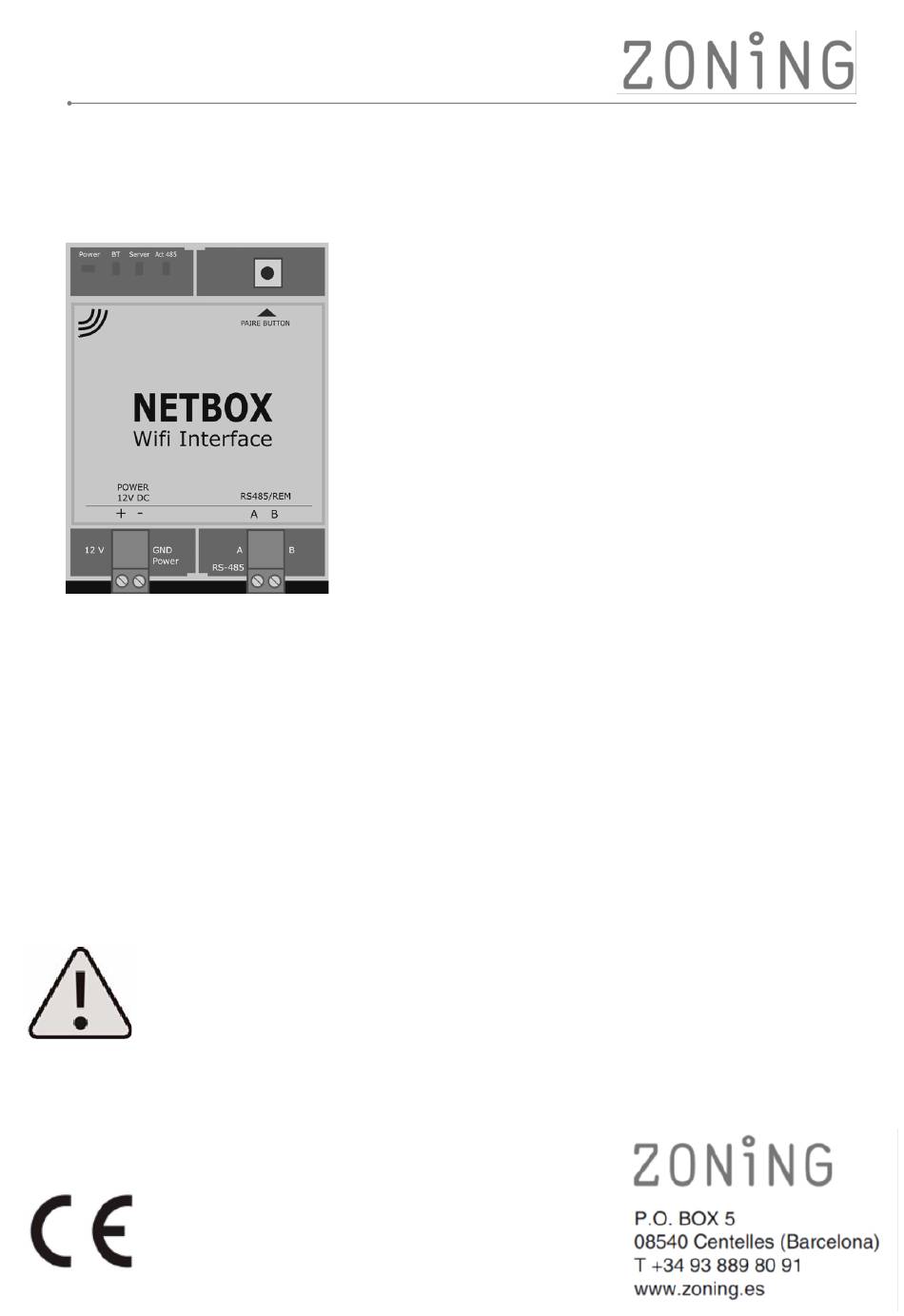

- Page 1 NETBOX WIFI Installation Manual v22.06 [EN] Technical Support Service Tel. (+34) 902 550 290 The installation should be carried out by authorised personnel only. Perform the entire installation without supply voltage. Protect the unit with the usual devices.
- Page 2 Cloud NetBox...
-
Page 3: Table Of Contents
Cloud NetBox Description ........................ 4 Incompatibilities ....................... 4 Before Starting ......................5 Access to the Internet ..................5 Activate Bluetooth & GPS ................5 Mobile device with internet & Wi-Fi ..............5 Start-up ........................5 Wiring diagram ....................5 Create account and APP installation ............... 6 Add installation ...................... -
Page 4: Description
Cloud NetBox A. Description The NetBox device allows the ZONING system to connect with a WI-FI net and control the multi- zone system through an user friendly remote APP. 1. Control LED’s Power supply • BT: Bluetooth • SERVER: NetBox - Internet communication •... -
Page 5: Before Starting
Cloud NetBox C. Before starting: Before doing the start-up process, please ensure the availability of: • Internet access : the internet connection is required by the Netbox during the start-up and the normal function fo the device. • Activate Bluetooth & GPS: Just during the registration process, the Bluetooth and the Location need to be activated. -
Page 6: Create Account And App Installation
• Create account and APP installation: First of all, the APP should be installed and create a user account to grant access at the cloud service. 1. Download APP Zoning 2.0, at Playstore or Appstore Zoning 2.0 2. Access to the APP and create an account A. -
Page 7: Add Installation
Select the WIFI where the Net- start enjoying the APP to control The number of systems (ZITY) box is to be connected (Band 2.4 our zoning system. and zones, should match with GHz), and fill with the WIFI pass- the ones installed. -
Page 8: Delete Installation Or System
Cloud NetBox E. Delete installation or existing systems 1. Delete installation Press the “Bin” button of the Press “yes”. The installation Press the ”Setting” button in the installation screen installation we want to delete. will be removed from the active user. 1. -
Page 9: Netbox Reset
Check the password, and in case is continues not working, press “I forgot the password” • and follow the instructions. 5. Any zoning system is detected when scanning with the APP Check the wiring and polarity of the (RS485/Rem) wire from ZITY to the NetBox. •... -
Page 10: Technical Characteristics
The procedure to follow in the case of return of the Madel ZONING system under warranty is as follows: If there is any problem, you should contact MADEL technical support service (902.550.290) who will try to solve any problems and answer any questions about the installation.
