V3-10.15
Assembly Instructions
(W x D x H) 0.63m x 0.63m x 0.94m

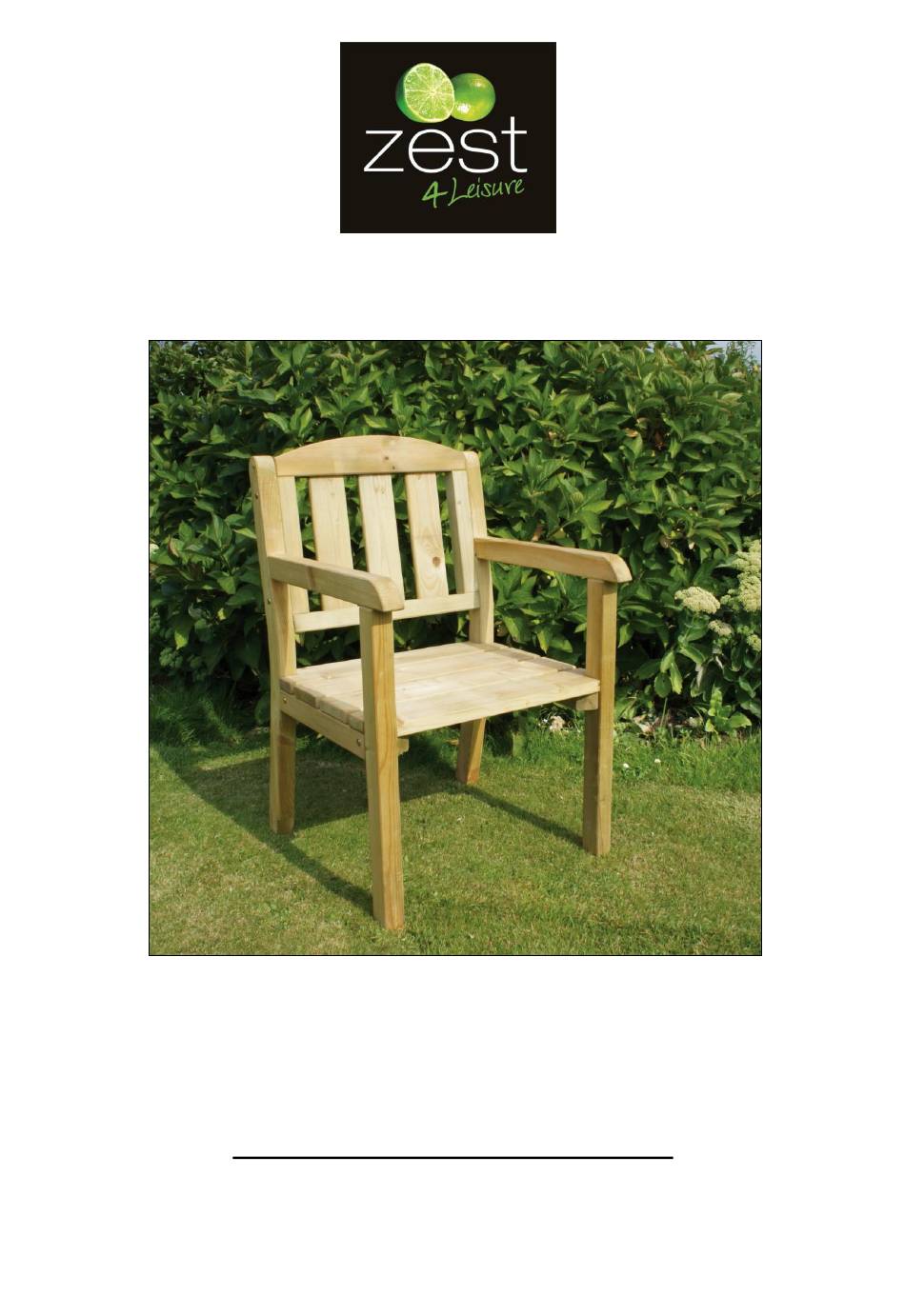

Product Name: Caroline Chair
Pressure Treated products should not be treated with any other products for the first month.
PLEASE KEEP THESE INSTRUCTIONS
Zest4Leisure
01352 752555 option 1 – sales@zest4leisure.co.uk
Advertisement
Table of Contents
Related Manuals for Zest 4 Leisure Caroline Chair
Summary of Contents for Zest 4 Leisure Caroline Chair
- Page 1 V3-10.15 Assembly Instructions (W x D x H) 0.63m x 0.63m x 0.94m Product Name: Caroline Chair Pressure Treated products should not be treated with any other products for the first month. PLEASE KEEP THESE INSTRUCTIONS Zest4Leisure 01352 752555 option 1 – sales@zest4leisure.co.uk...
- Page 2 Caroline Chair Assembly Instructions Requires 2 person assembly. Tools required: Hex Key Caroline Chair Pack List Item Description Quantity Seat Assembly Side Assembly Back Assembly Fixings Hex Screws www.zest4leisure.co.uk...
- Page 3 Do not fully tighten at this stage. Position the Back Assembly C between Side Assemblies B (Fig. 2a) and attach using 4no Hex Screws – 2no per side (Fig.2b). Fully tighten all Hex Screws at this stage. Caroline Chair is now complete.
