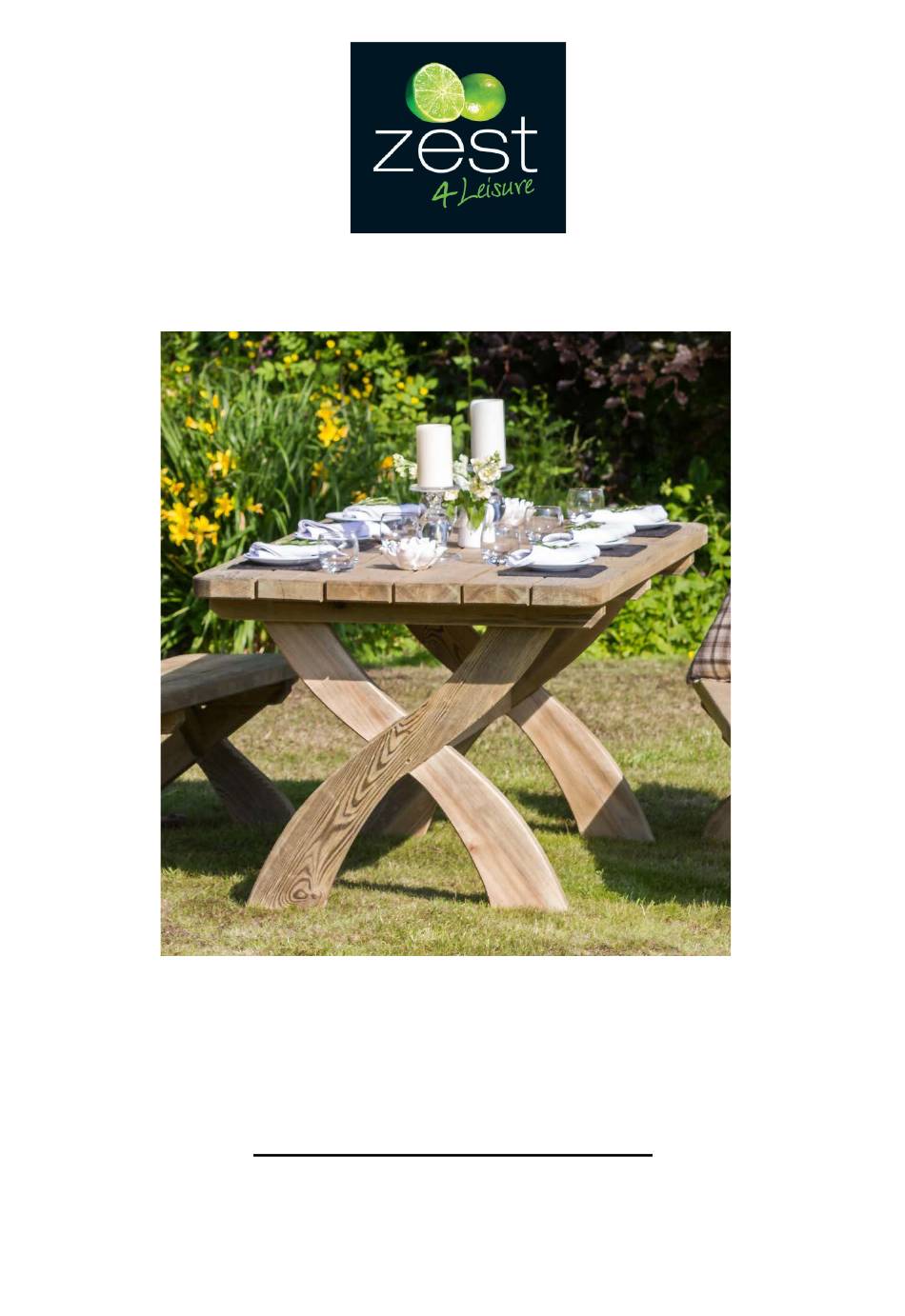

V1-11.15
Assembly Instructions
(W x D x H): 1.60m x 0.765m x 0.75m
Product Name: Harriet Table
Pressure Treated products should not be treated with any other products for the first month.
PLEASE KEEP THIS INSTRUCTION
Zest4Leisure
01352 752555 option 1 – sales@zest4leisure.co.uk
Advertisement
Table of Contents
Related Manuals for Zest 4 Leisure Harriet Table
Summary of Contents for Zest 4 Leisure Harriet Table
- Page 1 V1-11.15 Assembly Instructions (W x D x H): 1.60m x 0.765m x 0.75m Product Name: Harriet Table Pressure Treated products should not be treated with any other products for the first month. PLEASE KEEP THIS INSTRUCTION Zest4Leisure 01352 752555 option 1 – sales@zest4leisure.co.uk...
- Page 2 Harriet Table Assembly Instructions Requires 2 person assembly. Tools required: Corded / Cordless Drill, Pozi-drive Bit / Screwdriver, 3mm Drill Bit required in order for you to drill all screw holes before construction. The colour version of this document can be downloaded from: www.zest4leisure.co.uk/downloads/category/C1...
- Page 3 Attach Table Legs Assembly A to either end of Cross Brace B using 4no 80mm Screws (2no per Leg Assembly B) – Figs.1a&1b. Attach Bench Legs Assembly centrally to Table Top C battens using 8no 80mm Screws (2no per Leg) – Figs.2a&2b Harriet Table is now complete.
