Mooer Micro Series Owner's Manual

Optical Compressor Pedal
Main Features
Classic optical compressing sound with smooth attack and decay,
further more, it preserves the original signal transients perfectly
Full metal shell
Very small and exquisite
True bypass
Ÿ DC 9V Adapter power supply
3
6 7
8
4
5
6. VOLUME Knob:
Adjust the output Volume.
7. EQ Knob:
Adjust the tone of sound.
8. COMP Knob:
Adjust the intensity of compression.
Input: 1/4" monaural jack (impedance: 470k
Output: 1/4" monaural jack (impedance: 1k Ohms)
Power Requirements: AC adapter 9V DC (center minus plug)
Current Draw: 10 mA
Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
Weight:160g
Accessories: Owner's Manual
*
Disclaimer: Any specification's update won't be amended in this manual.

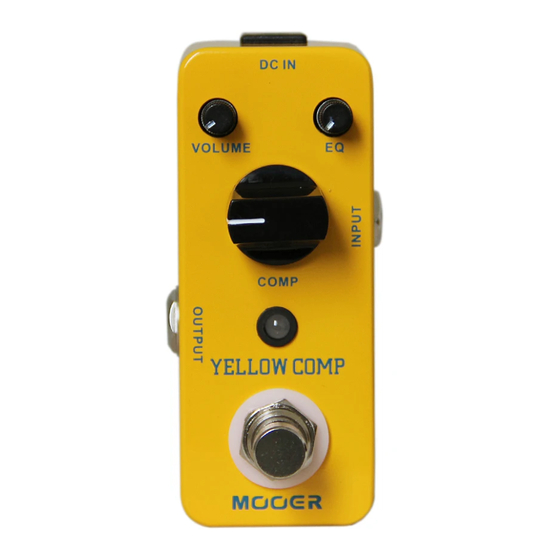

1. TRUE BYPASS Footswitch:
Push down the footswitch
to switch between effects
and bypass status.
2. ON/OFF LED:
Instructs effects or bypass
status of YELLOW COMP, when
the LED is lit up, the effects is
3. DC IN Power Jack:
For power supply, use a 9-volt
DC regulated AC adapter(plug
polarity is positive on the barrel
and negative in the center).
4. INPUT Jack:
1/4" mono audio jack, for
connecting guitar.
5. OUTPUT Jack:
1/4" mono audio jack, outputs
the signal.
Ohms )
on.
