Carino
Instructions for Use
04.BO.01_14GB • 09/2017
...with people in mind

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carino and is the answer not in the manual?

Questions and answers

Related Manuals for Arjohuntleigh Carino

Summary of Contents for Arjohuntleigh Carino

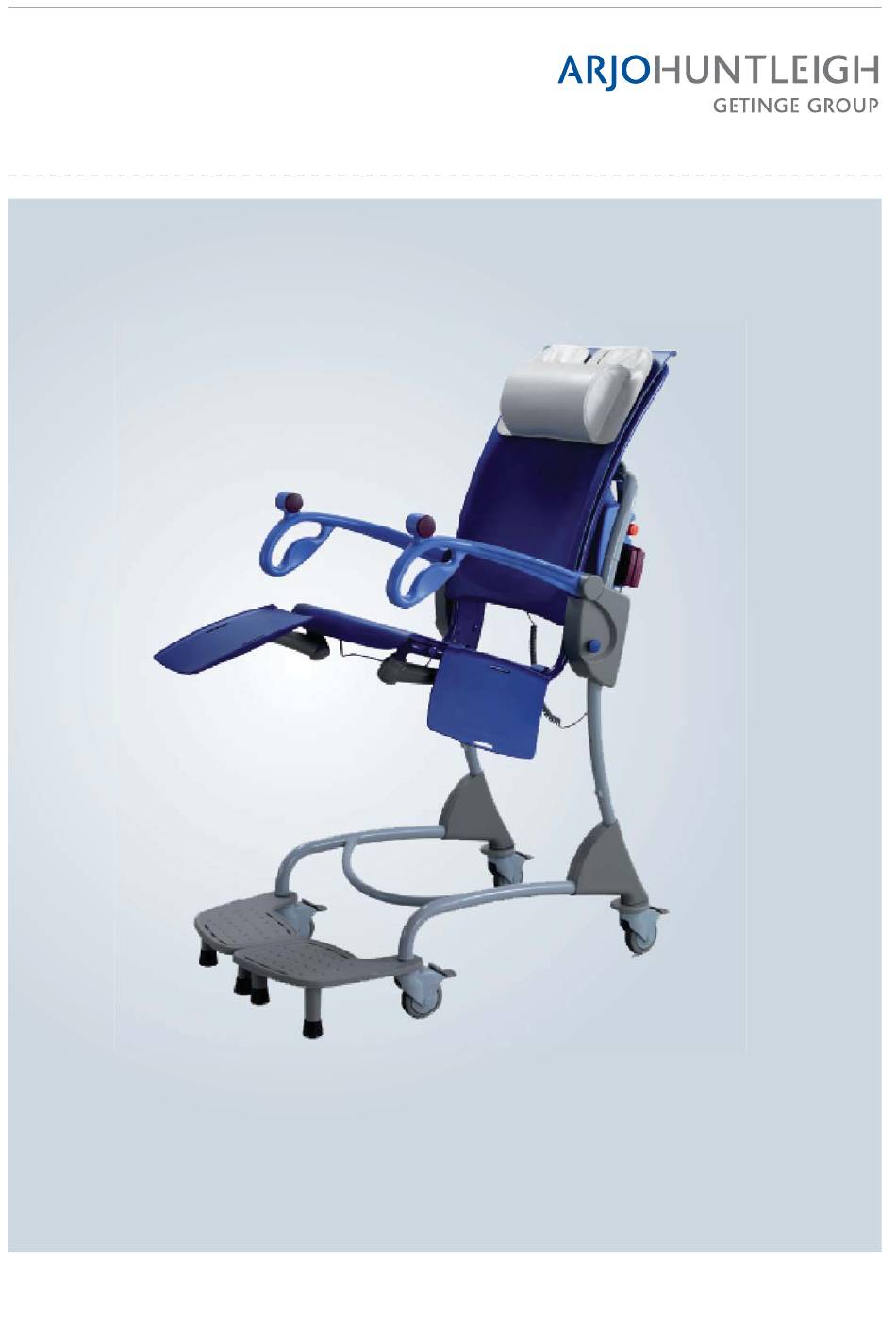

  • Page 1 Carino Instructions for Use 04.BO.01_14GB • 09/2017 ...with people in mind...
  • Page 2 Mandatory to read the Instructions for Use Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh AB 2014. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.The content of this publication may not be copied either whole or in...

  • Page 3: Table Of Contents

    Battery Instructions ..............28 Cleaning and Disinfection Instructions ........29 Care and Preventive Maintenance ..........32 Troubleshooting ..............36 Technical Specifications ............38 Dimensions ................40 Labels ..................42 Approvals and List of Standards ..........44 Electromagnetic Compatibility ..........44 Parts and Accessories ............46 ArjoHuntleigh Addresses ..........Last page...

  • Page 4: Foreword

    Thank You for Purchasing ArjoHuntleigh Equipment. This IFU is accompanied by a DVD. Please note that Your Carino height adjustable hygiene chair is part the DVD does not replace the information in the IFU of a series of quality products designed especially for as it contains important information.

  • Page 5: Intended Use

    The equipment is intended for indoor use. accordance with the instructions for care and maintenance in the Instructions for use (IFU). The Carino height adjustable hygiene chair may only be used by appropriately trained caregivers with Depending on level of wear some equipment parts...

  • Page 6: Safety Instructions

    Safety Instructions WARNING WARNING To avoid the device in use from tipping, do To avoid explosion or fire, never use the not raise or lower other equipment close to equipment in oxygen rich environment, in it and be aware of stationary object when presence of heat source or flammable lowering.

  • Page 7: Preparations

    Actions Before the First Use (4 steps) (10 steps) 1 Check that all parts of the Carino hygiene chair 1 Visually check the package for damage. If the are in place. Compare to Part Designations page product looks damaged make a complaint to the in this IFU.

  • Page 8: Parts Designation

    Parts Designation 1 Chassis 2 Lockable castors 3 Backrest 4 Neck pillow 5 Transfer handle 6 Transfer handle 7 Leg rests 8 Foot supports 9 Safety belt 10 Seat 11 Armrests 12 Hand control 13 Battery 14 Battery holder 15 Battery charger 16 Lifting unit 17 Cover left 18 Cover right...

  • Page 10: Product Description / Functions

    Product Description / Functions The Carino hygiene chair has a total of 15 descriptions and functions. Lifting Function (High/Low) The chair can be adjusted to a suitable height over the toilet and to a comfortable height during showering. The higher the Carino hygiene chair is raised, the more reclined the patient’s...

  • Page 11: Castors

    The seat is fixed in its normal position by a snap-in attachment on the front edge of the seat. For optimal ergonomics during cleaning and disinfecting, fold the seat up with the Carino hygiene chair in a comfortable height. (See Fig. 4)

  • Page 12: Battery

    To reset the emergency stop function, turn the red button clockwise. • • CAUTION This emergency stop function should ONLY be used in an emergency. If the emergency stop has been used due to malfunction, contact an ArjoHuntleigh Service Technician for general inspection of the Carino hygiene chair.

  • Page 13: Emergency Lowering

    Automatic Safety Stop When a surrounding object stops the raising or lowering of the Carino hygiene chair, the automatic safety stop function will activate and stop the chair movement. Move the chair or the obstruction and continue raising or lowering.

  • Page 14: Neck Pillow

    Fig. 4 The toilet adapter is used as a protection between the toilet chair and Carino hygiene chair to prevent splashing during toilet visits. It can be fitted from the back under the seat just like the bedpan. (See Fig. 4)
  • Page 15 Intentionally left blank...

  • Page 16: Getting The Patient Seated

    (See Fig. 1) 2 Apply the brakes. (See Fig. 2) Fig. 2 3 Adjust the height of the Carino hygiene chair so that the edge of the seat touches the back of the patient's knees. (See Fig. 3) 4 Let the patient hold on to the armrest so that he or she can lean on it.
  • Page 17 6 Help the patient to sit down. (See Fig. 5) Fig. 5 7 Use the safety belt if needed. 8 Raise the Carino hygiene chair to a height which is convenient for transfer and the patient’s feet just above the foot supports.(See Fig. 6) 9 Apply the foot supports on Carino hygiene chair.
  • Page 18 1 Fold away the leg rests and push aside the foot supports. (See Fig. 1) 2 Apply the brakes on the Carino hygiene chair. (See Fig. 2) Fig. 2 3 Place the lift with the patient as close as possible to the Carino hygiene chair.
  • Page 19 Fig. 6 11 Apply the foot supports on the Carino hygiene chair. (See Fig. 6) 12 Lower the Carino hygiene chair so the patient’s feet rest on the foot supports. 13 Transfer the patient to the shower or the toilet.

  • Page 20: Transfer

    Transfer There are two different ways to take the Carino hygiene chair with a patient to the shower room or toilet. WARNING To avoid entrapment, make sure to keep the patient’s hair, arms and feet close to the body and use designated grab supports during any movement.

  • Page 21: Transfer To The Shower

    Fig. 1 NOTE To ease the process, undress the patient before entering the Carino hygiene chair. 1 Apply the brakes. 2 Undress the upper part of the patient’s body. (See Fig. 1) 3 Raise the chair to a comfortable height.

  • Page 22: After The Shower

    After the Shower Drying and Dressing Fig. 2 Fig. 1 Alternative A - Independent Patients (8 steps) 1 Apply the brakes. 2 Dry all parts of the patient within reach with a towel. Do not forget the back of the legs. (See Fig. 1-2) Fig.
  • Page 23 Fig. 5 8 Bring the active lift (standing and raising aid) in a frontal position close to the Carino hygiene chair so the patient’s feet reach the foot plate of the active lift. (See Fig. 6) 9 Apply back support sling of the active lift.

  • Page 24: Transfer To The Toilet

    To prevent cross-contamination, always follow the disinfection instructions in this IFU. The Carino hygiene chair can be used regardless of whether the toilet is attached to the wall or to the floor. Preferably a toilet with a relatively long seat is recommended.
  • Page 25 To Use the Toilet with the Carino hygiene chair – Follow these 10 Steps. Fig. 1 1 Place the Carino hygiene chair with the patient close to the toilet. (See Fig. 1) 2 Raise the chair to a comfortable height for the caregiver.

  • Page 26: Home Care Use

    Home Care Use Using the Carino hygiene chair For Distributors and Renters Before using the Carino hygiene chair in When transporting the Carino hygiene chair home environment make sure that (See Fig. to the customer with a van: 1-2): •...
  • Page 27 Fig. 1 36" (900 mm) 36" (900 mm) 87" (2200 mm) Fig. 2 28" (700 mm) 28" (700 mm) Floor drain Movable shower mixer-tap and long shower hose (2500 mm) with trigger handle Free passage 39 sq. ft Height- and 36"...

  • Page 28: Battery Instructions

    To prolong the life of the battery, charge it at regular intervals, i.e. every night. • If the Carino hygiene chair is used frequently, it is recommended to use two batteries, one in operation and one as a stand-by in the charger.

  • Page 29: Cleaning And Disinfection Instructions

    Arjo Clean If you have any questions regarding disinfecting the • Arjo General Purpose Disinfectant Carino hygiene chair or wish to order disinfectant, contact ArjoHuntleigh Customer Service. See • Arjo Disinfectant Cleanser IV section Parts and Accessories on page 46.
  • Page 30 (Step 1-3 of 21) 1 Detach pillow, cushions and safety belt. 2 Clean the Carino hygiene chair from visible residue using a cloth soaked in water or if more suitable by spraying/ showering water using a brush and/or wipe with a clean cloth.
  • Page 31 17 Spray or shower water ( approx. 25 °C (77 °F) ) and wipe with a clean cloth to remove all traces of the disinfectant on the Carino hygiene chair . The cloth should occasionally be rinsed in running water during removal of disinfectant .

  • Page 32: Care And Preventive Maintenance

    Care and Preventive Maintenance Caregiver Obligations The Carino hygiene chair is subject to wear and tear and the following actions must be performed when specified to make sure that the product remains within its original manufacturing specification. • WARNING To avoid malfunction resulting in injury, make sure to conduct regular inspections and follow the recommended maintenance schedule.
  • Page 33 On the back side of the chair when the chair is in its lowest position. Check the lifting strap for fraying, cuts, loose stitching. If the lifting strap is found damaged in any way, do not use the Carino hygiene chair. Contact your local ArjoHuntleigh representative. Every week Fig.
  • Page 34 • Check the function of the brakes by applying the brakes and Fig. 5 test the Carino hygiene chair for movement. • Check the cushions/pillows (See Fig. 6) to make sure there are no cracks or tears that would allow water to get into the filling.
  • Page 35 Yearly Checks by Qualified Personnel only The Carino hygiene chair must be serviced once a year in accordance with the Maintenance and Repair Manual. WARNING To avoid injury and/or unsafe product, the maintenance activities must be carried out at the correct frequency by qualified personnel using correct tools, parts and knowledge of procedures.

  • Page 36: Troubleshooting

    Troubleshooting PROBLEM ACTION The chair keeps raising and lowering after Activate the red emergency stop button and pull the battery out the hand control button is released. - remove the patient from the hygiene chair and contact qualified personnel. The hygiene chair does not raise or lower 1 Make sure that the battery is fully connected in the battery when the hand control button is being compartment.
  • Page 37 Intentionally left blank...

  • Page 38: Technical Specifications

    Technical Specifications Carino hygiene chair Model BOC100X-01 Safe Working Load (SWL) (Maximum patient weight) 140 kg (309 lbs) Weight 42 kg (93 lbs) Maximum total weight of lift 182 kg (402 lbs) (lift + patient) Mode of operation ED maximum 10% 1 minute ON,...
  • Page 39 This requirement applies in the European Union. Do not dispose these products as unsorted municipal waste. You can return your device and accessories to ArjoHuntleigh or you can contact your local authorities for advice on disposal.

  • Page 40: Dimensions

    Dimensions...
  • Page 41 Ø1370 (53 7/8”) Ø1082 (42 5/8”) 424 (16 5/8”) 624 (24 5/8”)

  • Page 42: Labels

    Labels Label explanation ED max 10% Mode of operation for Hi/Lo function: Approval States approvals for the current ED maximum 10%; Label product. Maximum 1 minute ON; Battery Label States safety and environmental Minimum 9 minutes OFF information for the battery. Type BF.
  • Page 43 Battery Label Emergency Lowering Label Lifting Strap Label Identification Label Data Label Approval Label...

  • Page 44: Approvals And List Of Standards

    EMC information below. The Carino hygiene chair is intended for use in the electromagnetic environment specified below. The customer or the user of the Carino hygiene chair should assure that it is used in such an environment. WARNING Stacking or placing other electrical equipment next to this device is not recommended, it can interfere with the equipment’s operation and safety.
  • Page 45 RF communications equipment (transmitters) and the Carino hygiene chair by maintaining a distance of not less than 1 meter to any part of the Carino hygiene chair, including cables, if the transmitters output power rating exceeds 1 W.

  • Page 46: Parts And Accessories

    Parts and Accessories Battery charger and battery Safety belt Back pillow and neck pillow Bed pan with lid Toilet adapter Seat cushion For disinfectant contact the ArjoHuntleigh local representative...
