- Page 1 STEDY™ Instructions for Use NTX01400.US rev. 10 • July 2011 ...with people in mind...
- Page 2 © BHM Medical Inc. 2010 ArjoHuntleigh products are patented or patent pending. Patent information is available by contacting ArjoHuntleigh. Our policy is one of continous development, and we therefore reserve the right to make technical alterations without notice. The content of this publication may not be copied either whole or in part without the consent of BHM Medical Inc.
-
Page 3: Table Of Contents
Intended use 2 Key to symbols 3 Part Designation 4 Safety Instructions 5 General 5 Equipment warning labels 5 Care of the Stedy 6 Care checkpoints 6 Servicing advice 7 Operating the Stedy 8 General 8 At the toilet 9... -
Page 4: General
A complete listing is available on the last page of this manual. Service and support A service routine has to be performed on the Stedy by ArjoHuntleigh trained personnel to ensure the safety and operation of your product. See Preventive Maintenance Schedule. -
Page 5: Intended Use
General References to the left and right of the Stedy in these WARNING: Read before use. instructions are as viewed from the patients position. Before using the Stedy, you must read and The Stedy may be used to transport and support... -
Page 6: Key To Symbols
General Symbol Key to symbol This symbol is accompanied by the manufacturer's catalogue number. This symbol is accompanied by the date of manufacture and by the address of the manufacturer. This symbol refers users to the Operating, Product Care, and Maintenance Instructions. -
Page 7: Part Designation

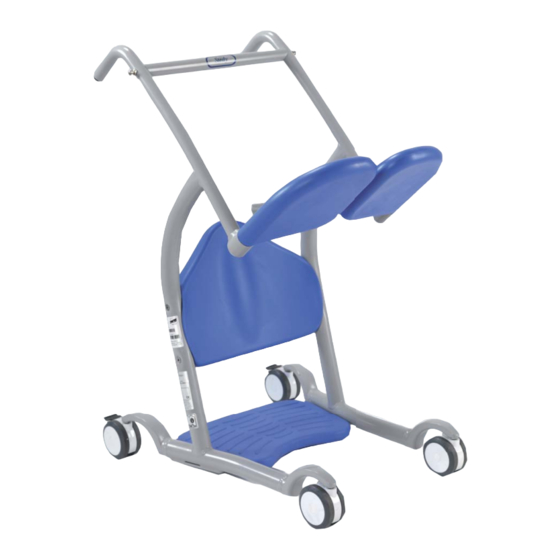

Part Designation Optional back support strap. LEGEND A. Manoeuvring handles I. Attachment clips B. Cross bar J. Waist strap C. Pivot seat halves K. Buckle D. Padded kneepad L. Fleece cover (if fitted) E. Footboard F. Castor brake G. Support strap attachment lugs H. -
Page 8: Safety Instructions
• Always use the maneuvering handles to move the Stedy. parts. • Do not attempt to push or pull a loaded lift over a floor... -
Page 9: Care Of The Stedy
Huntleigh representative. WARNING: If a hot air dryer is used to dry • The Stedy must not be left in an outside area the Stedy, the temperature must not ex- where it will be exposed to extreme weather con- ceed 80°C (165°F). -
Page 10: Servicing Advice
The simplest, safest and most effective way to maintain your product in good working order, is to have it methodically and professionally serviced at least annually by an ArjoHuntleigh approved engineer using ArjoHuntleigh approved spare parts. For information on service and maintenance contracts, please contact your local ArjoHuntleigh representative. -
Page 11: Operating The Stedy
Stedy. Tell the resident/patient what you are going to do. Pivot the two seat halves up and push the Stedy to approach the seated resident/patient from the front (see Fig. 1). -
Page 12: At The Toilet
The Stedy can remain in position if desired and will function as a support frame improving the resident/ patient’s confidence. -
Page 13: Using The Back Support Strap
(see fig. 8). When using the support strap, always ensure the patient is seated on the Stedy before attaching or detaching the strap. Never support the resident/ patient using only the support strap. - Page 14 Operating the Stedy Ensure the attachment clips are pulled down onto the WARNING: Always check that one support attachment lugs and secure when the support strap is strap attachment clip on each side is in fitted in position (see fig. 10).
-
Page 15: Parts List: General Exploded View
Parts List: General Exploded View... -
Page 16: Parts List: General Parts List
Seat half (L.H. side) Bushing (not illustrated) End cap Label set Allen key (hex wrench) 5mm (not illustrated) Spanner (wrench) ” (not illustrated) Stedy Spare Parts Kits PART NUMBER DESCRIPTION NTX01400.US Operating and Product Care Instructions NTS0001.20 Side frame (L.H. side) spares kit, (includes: 1, 6x2, 7x2, 9, 10x2, 11x2, 14x2, 16, 17, 18) NTS0002.20... -
Page 17: Preventive Maintenance Schedule
ArjoHuntleigh strongly advises and warns that only ArjoHuntleigh Ltd company designated parts, which are designed for the purpose, should be used on equipment and other appliances supplied by ArjoHuntleigh Ltd, to avoid injuries attributable to the use of inadequate parts. - Page 18 Make sure all instruction labels are firmly attached and in good readable condition. Replace when necessary. Inspect the two sling attachment points. If worn or damaged, replace with new. If the product does not work as intended, immediately contact your local ArjoHuntleigh representative for support.
-
Page 19: Technical Specifications
Technical Specifications Weight............16.8 kg (37 lb) Maximum permitted loading.......120 kg (264 lb) 775 (30 ”) 523 (20 ”) 865 (34 ”) 788 (31”) 455 (17 ”) 133 (5 ”) 31 (1 ”) Dimensions in millimeters, equivalent in inches. - Page 20 ÖSTERREICH GR-16121 KAISARIANI ATTIKIS POLSKA ArjoHuntleigh GmbH : 21 0724 36 68 : 21 0721 55 53 ArjoHuntleigh Polska Sp. z o.o. Dörrstrasse 85 ul. Ks Piotra Wawrzyniaka 2 AT-6020 INNSBRUCK ESPAÑA PL 62-052 KOMORNIKI (Poznan) Tel: +43 (0) 512 204 160 0 ArjoHuntleigh Ibérica S.L.
- Page 21 MAQUET specializes in solutions, therapies and products for surgical interventions and intensive care. ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © As our policy is one of continuous development we reserve the right to modify designs and specifications without prior notice.
