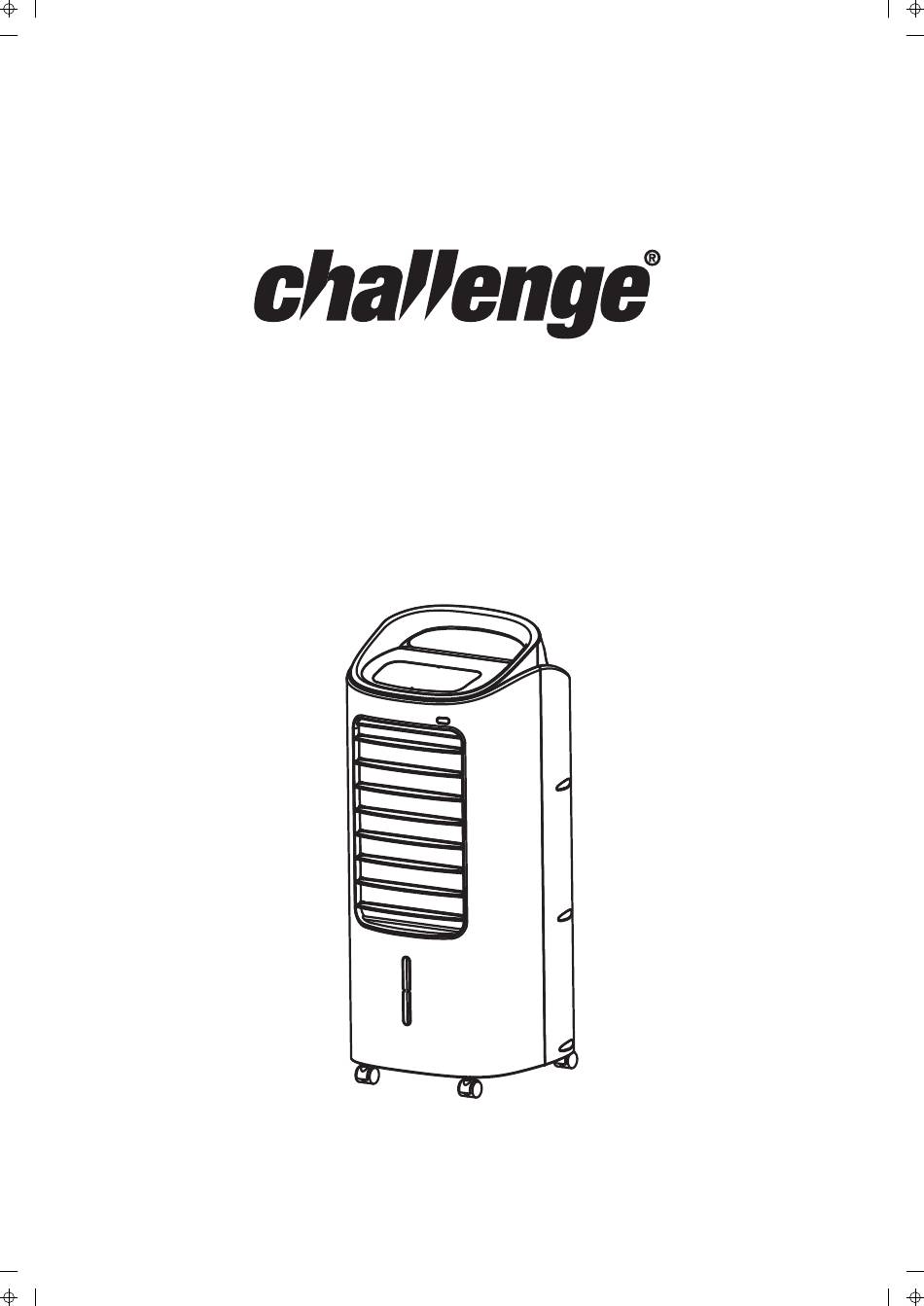

- Page 1 Air Cooler Instruction Manual Model No.: AC100-R READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
CONTENTS 1．SAFETY INSTRUCTION ………………………………………… 2．PARTS LIST ……………………………………………………… 3．PLACEMENT ……………………….……………………………… 4．CONTROL PANEL AND SETTINGS …..………………….…… 5．USER TIPS FOR AIR COOLER ………………………………… 6．MAINTENANCE ………………………………….….……………… 7．CLEANING THE HONEYCOMB ………………………………… 8．STORAGE ………………………………………………………… 9．TROUBLE SHOOTING …………………………………………… 10．CONNECTION TO POWER ………………………………………... -
Page 3: 1．Safety Instruction
Safety Instruction - Non-specialized personnel or unauthorized repair personnel shall not to repair or modify the machine. - It is forbidden to operate with wet hands to avoid electric shock. - Any power cord, which suffers from aging and knotting and whose plug is damaged, should be stopped its use immediately, and must be repaired by a professional manufacturer or equally qualified personnel. - Page 4 - Do not place items on the unit, and covering the outlet is strictly prohibited. - When wash the unit appearance, apply a damp cloth (or add a little cleaning agent) to wipe, and never use corrosive cleaning agent or solvent for cleaning.
- Page 5 - When the appliance is not in use and before cleaning, unplug the appliance from the outlet. - Keep electrical appliances out of reach from Children or infirm persons. Do not let them use the appliances without supervision. - Unplug the appliance during filling and cleaning. - Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
- Page 6 Use the provided Off switch located on the control panel. - Always place the unit on a dry and stable surface. Do not move or tilt the unit while water tanks is full. - The appliance should not be installed in laundry or wet rooms. - Avoid keeping the unit in direct sunlight for a long period of time.
-
Page 7: 2．Parts List
PARTS LIST Handle Honeycomb filter Control panel Honeycomb filter frame Pre-filter Air flow outlet Water tank top cover Filter net Water tank cover Water tank Water window Ice box Wheel Fig.1 INSTALLATION This unit can easily be moved from one room to another. While moving the unit please note that it must always be kept upright and then placed on an even surface. -
Page 8: 3．Placement
PLACEMENT To maximize efficiency, position the Air Cooler according to the following guidelines: Place the cooler in front of an open door or window. Ensure that there is adequate cross-ventilation in the room by leaving a door or window open opposite the cooler. The air cooler should not be used in enclosed Fig.3 spaces. -
Page 9: 4．Control Panel And Settings
CONTROL PANEL AND SETTINGS Medium High OSC. Humidify Off: To turn off the unit, press the off button once. Low / Medium / High: Press one of the fan speed button to turn on the air cooler. To change the fan speed, press desired fan speed button. -
Page 10: 5．User Tips For Air Cooler
During the operation: When humidifying, the water level must not be lower than the MIN water line. If you want to increase the cooling effect, you can put ice or the charged ice packs into the water tank, but be sure that by adding ice or icepacks the water level does not go over the MAX limit. -
Page 11: 6．Maintenance
The recommended maximum relative humidity level is 60% or less, which allows a noticeable temperature decrease. The temperature will be lower in drier climates because higher evaporation occurs when the humidity is low. NOTE : When the product is used for the first time the filter frame may have an odor which will dissipate in a few hours or so of initial use. -
Page 12: 7．Cleaning The Honeycomb
CLEANING THE HONEYCOMB FILTER • The appliance is supplied with a Honeycomb filter. • The Honeycomb filter are located inside the Rear grille. See Fig 9 for instructions on how to remove them from the unit for cleaning and maintenance. •... -
Page 13: 8．Storage
Removing the Honeycomb filter: Carefully pull out the rear grille from the cooler. Slide out the Honeycomb filter and clean with water. Replace or clean Honeycomb filter with water and a damp cloth as needed. WARNING: DO NOT operate the Air Cooler when the Rear grille is removed from the Air Cooler, or if there is a loose-fitting Rear grille. -
Page 14: 9．Trouble Shooting
Dry before use. If the above solutions do not resolve the problem please contact the service centre. Technical specification Model no. AC100-R Operating voltage 220-240V~ 50Hz Rated input Class protection Class II Water tank (max. mark level) Air flow 5m³/min... -
Page 15: 10．Connection To Power
To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Technical Specifications(ERP) AC100-R m³ /min 24,52 49,30 m³... - Page 16 PRODUCT GUARANTEE This product is guaranteed against manufacturing defects for a period of Year This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will either be replaced, refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit.
