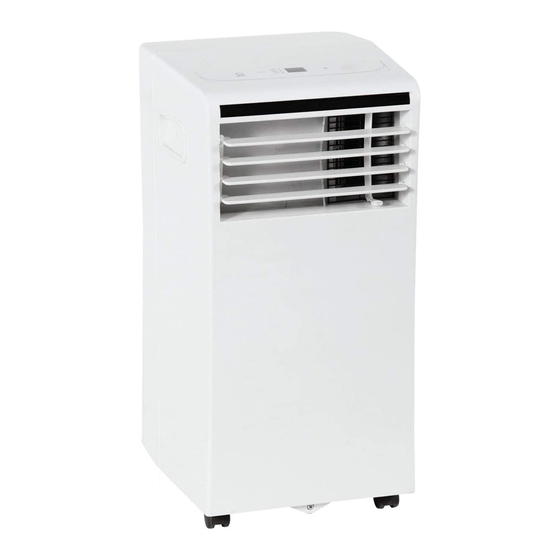

- Page 1 5000 BTU LOCAL AIR CONDITIONER INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS Safety rules............................2 Operating condition.............................3 Suggested tools for window kit installation....................3 IDENTIFICATION OF PARTS Names of parts...........................4 Accessories..............................4 INSTALLATION INSTRUCTIONS Installation instruction........................……..5 Exhaust hose installation………......................…6 Water drainage...........................……. 8 OPERATION Control panel………........................…..9 Operating instruction……........................…10 Remark……..............................10 REMOTE CONTROL Remote Control…………….......................11 CARE AND MAINTENANCE Care and maintenance……………....................14 TROUBLE SHOOTING TIPS... -
Page 3: Safety Precautions Safety Rules
SAFETY PRECAUTIONS Safety rules To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. Always do this Never do this Do not operate your air conditioner in a wet room such as a bathroom or laundry room. -
Page 4: Operating Condition
SAFETY PRECAUTIONS Energy Save Use the unit in the recommended room size. Locate the unit where furniture cannot obstruct the air flow. Keep blinds/curtains closed during the sunniest part of the day. Keep the filters clean. Keep doors and windows closed to keep cool air in and warm air out Operating condition The air conditioner should be operated within the temperature range indicated below: MODE... -
Page 5: Identification Of Parts
IDENTIFICATION OF PARTS NAMES OF PARTS Rear Front Air Filter Operation Panel Air Outlet Wheel Carrying Handle (both sides) Air intake (with filter) Cold air outlet Drain Outlet Air intake Bottom tray drain outlet Fig.1 Fig.2 Accessories PARTS : PARTS NAME : QUANTITY : 1 pc Unit Adaptor... -
Page 6: Installation Instructions Installation Instruction
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS Location The air conditioner should be placed on a firm foundation to minimize noise and virbration. For safe and secure positioning, place the unit on a smooth, level floor strong enough to support the unit. The unit has casters to aid placement, but it should only be rolled on smooth, flat surfaces. -
Page 7: Exhaust Hose Installation
INSTALLATION INSTRUCTIONS For hung/sliding window Exhaust hose installation: Exhaust hose Exhaust hose assembly The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. Unit adaptor Window slider adaptor COOL, AUTO mode Install For wall installation FAN,DEHUMIDIIFY mode Remove Exhaust hose assembly... - Page 8 INSTALLATION INSTRUCTIONS Type 3: Wall Installation(optional) -Cut a 125mm (4.9inch) diameter hole into the wall for the Wall Exhaust Adaptor B. -Secure the Wall Exhaust Adaptor B to the wall using the four Anchors and Screws provided in the kit. -Connect the Exhaust Hose Assembly(with Wall Exhaust Adaptor A) to the Wall Exhaust Adaptor B.
-
Page 9: Water Drainage
INSTALLATION INSTRUCTIONS Water drainage: During dehumidifying modes, remove the drain plug from the back of the unit, install the drain Remove the connector(5/8 universal female mender) with drain plug 3 4 hose(not included). Place the open end of the hose directly over the drain area . Please refer to Fig.6 &... -
Page 10: Operation
OPERATION Control Panel Fig. 9 Power button MODE button Turn the unit on/off. Selects the appropriate operating mode. Each time you press the button, a mode is selected in a sequence that LED display goes from COOL, FAN and DRY .The Shows the set temperature while on cool mode indicator light illuminates under mode. -
Page 11: Operating Instruction
OPERATION Operating Instruction COOL operation Continue to pre ss the "MODE" button until the "COOL" indicator light comes on. Continue to pre ss the ADJUST buttons " " or " " to select your desired room temperature. The temperature can be set within a range of 17 C-30 C Power To change the fan speed, please use the remote... -
Page 12: Remote Control
REMOTE CONTROL Handling the remote control Location of the remote control Use the remote control within a distance of 8 meters from the appliance, pointing it towards the receiver. Reception is confirm by a beep. CAUTIONS The air conditioner will not operate if curtains, doors or other materials block the signals from the remote control to the indoor unit. - Page 13 REMOTE CONTROL Function buttons SHORT CUT Button Sets and activates your favorite pre-settings. Used to restore the current settings or resume previous settings. Push this button when remote controller is on, the system will automatically revert back to the previous settings including operating mode, setting ON/OFF SHORT...
- Page 14 REMOTE CONTROL Transmission Indicator Lights up when remote sends signal to unit ON/OFF display Appears when the unit is turned on, MODE display and disappears when it is turned off Displays the current TIMER OFF display TIMER ON display mode, including: Displays when TIMER Displays when TIMER AUTO...
-
Page 15: Care And Maintenance
CARE AND MAINTENANCE CARE AND MAINTENANCE Air filter (take out) IMPORTANT: 1) Be sure to unplug the unit before cleaning or servicing. 2) Do not use gasoline, thinner or other chemicals to clean the unit. 3) Do not wash the unit directly under a tap or using a hose. It may cause electrical danger. -
Page 16: Troubleshooting Tips
TROUBLESHOOTING TIPS TROUBLE SHOOTING TROUBLES POSSIBLE CAUSES SUGGEST REMEDIES 1. Unit does not - P1 appears in the display window Drain the water in the bottom tray. Start when Pressing on/off - Room temperature is lower than Reset the temperature. Button the set temperature.(Cooling mode) - The windows or doors in the room... -
Page 17: Product Specification
PRODUCT SPECIFICATION The figures below are for reference only and are based on practical operation. Performance may vary slightly depending on environmental conditions. Description of product Local air conditioner Model MPPHA-05CRN1-QB6 Voltage/Frequency 220-240V /50Hz 5000BTU/H Cooling capacity 1.4 kW Dehumidifying capacity 1.4L/H... -
Page 18: Connection To Power Connection To Power
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities: A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user. -
Page 19: Technical Information (Erp)
TECHNICAL INFORMATION (ERP) 2088 Customer helpline 0345 640 0800 Installs, services, maintains, repairs, checks for leaks or decommissions equipment and product recycling should be carried out by natural persons that hold relevant certificates. The fluorinated greenhouse gases are contained in hermetically sealed equipment.
