Summary of Contents for Nova Caddy X9R

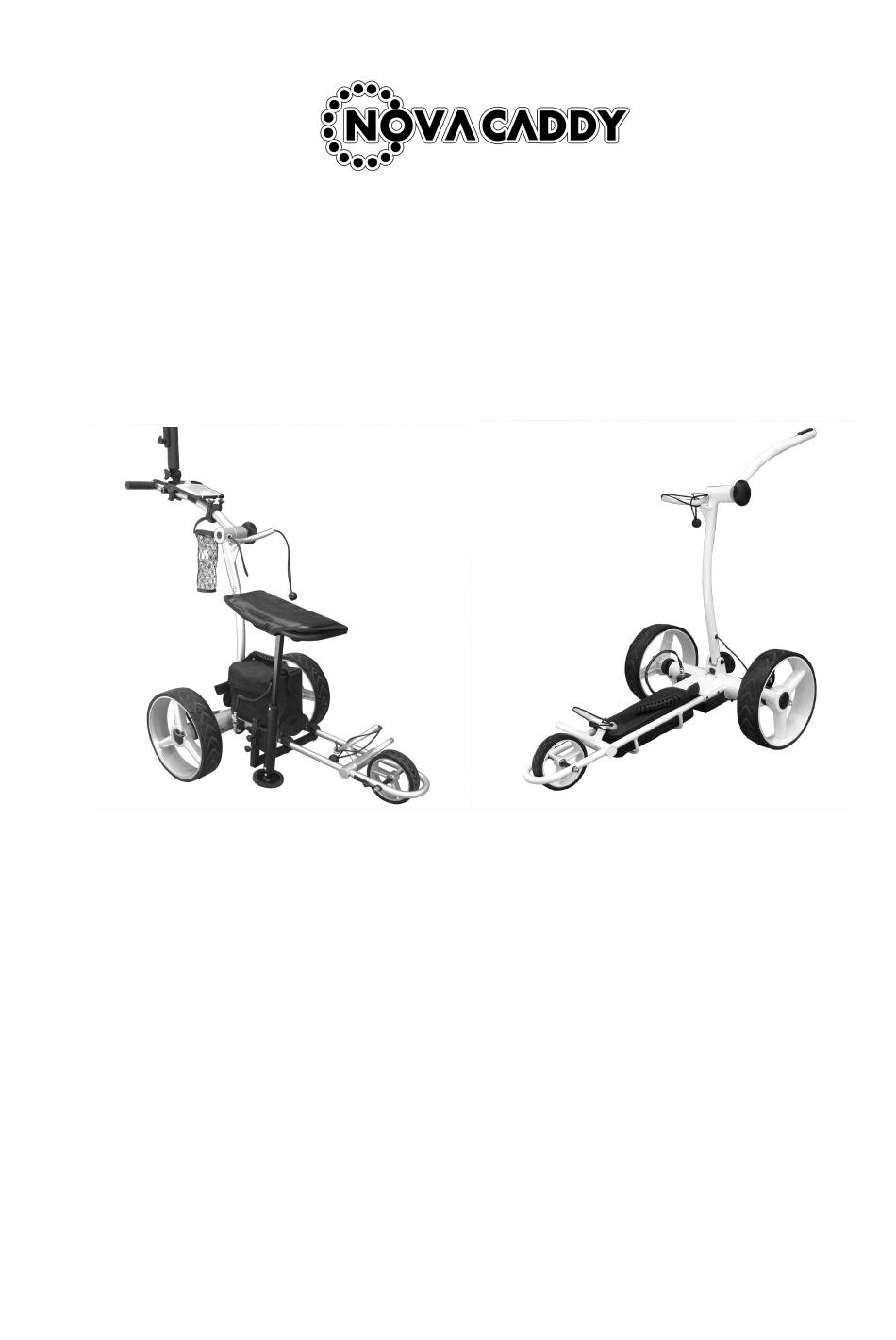

- Page 1 Digital Remote Electric Golf Trolley Model: X9R / X9R-S / X9R-Lithium User Manual Nova Caddy Golf Products www.novacaddy.com Tel: +1 905-209-9937...
-
Page 2: Table Of Contents
CONTENTS Page Packing List and Parts Glossary Assembly Instructions Operating Instructions Important Safety Instructions Electronic System General Maintenance Technical Specifications Trouble Shooting Frequently Asked Questions One-Year Limited Warranty... -
Page 3: Packing List And Parts Glossary
Congratulations on your purchase of the NovaCaddy X9R / X9R-S / X9R-Lithium Remote Electric Golf Trolley. The X9R is without doubt one of the most high performance, light weight and competitive carts in the global market for motorized golf push carts and it represents what really counts in this market: A... - Page 4 Control Panel 11. Battery Plug Manual Rheostat Speed Ctrl. 12. Wheel Spring Scorecard Hold 13. Wheel Hub Cap Upper Bag Holder 14. Rear Wheels Upper Bag Strap 15. Dual Motors/Gearbox Ass. Battery 16. Anti-flip Wheel Lower Bag Strap 17. Lower Folding Fixed Knob Lower Bag Holder 18.
-
Page 5: Assembly Instructions
2. Assembly Instructions Please read and follow these instructions carefully, and you will be ready to go in a few minutes. 1.Unpack all items carefully and check everything has been included. Some extras may be in small packages so do not throw anything away until all has been checked. - Page 6 5. Place battery pack on battery tray and fasten Velcro strap around battery tightly. Insert battery plug into caddy outlet. 6. Insert anti-flip wheel into frame and secure with pin. 7. Install Scorecard Holder and other accessories below handle in the foreseen places or receptors.
- Page 7 9. Installation of seat (Optional) 9.1 Attach and fasten holding bar to pre-drilled holes in frame using screw bolt (included) 9.2 Attach stand to seat bottom using the four small screws. Attach in such manner that the seat points parallel to the driving direction of the caddy with the opening to the outside, once you slid it into the holding bar.
-
Page 8: Operating Instructions
3. Operating Instructions 3.1. Handle Function 3.1.1. Power ON/OFF. Power ON/OFF button controls the caddy’s power supply. Press for 2-5 seconds in order to switch the caddy ON or OFF. After you have connected your battery, you need to press ON, and Power Indicator will illuminate. Now your caddy is ready for operation. - Page 9 3.1.2. Battery Status When main power turns ON, battery LED indicator illuminate. If the Green indicator illuminate, battery is full. If only Red indicator illuminate, battery is running out and need to be recharged. 3.1.4. Manual Speed Controller Scrolling of the Manual Rheostat Speed Control knob lets you choose your preferred speed to suit your space perfectly, and the display will show the preferred speed.
- Page 10 3.2. Remote Control A. Brake: The red button in the middle of the directional arrows should be used for brake the caddy. B. Timer (Distance Control Function): Brief press the button once, cart runs 10 yards/meters then stops itself. Brief press the button two times continuously, cart runs 20 yards/meters then stops itself.
- Page 11 F. Backward Arrow: Pressing the back arrow will set the caddy in backward motion. Increase speed by pushing multiple times. G. LED Indicator: remote control signal indicator H. Antenna: remote signal antenna Important Notes: • Change the remote control batteries once the indicator LED gets weak •...
- Page 12 3.3.3. Remote Control Connection: Turn caddy main power on, then press and hold any directional button on the remote control for about 10 seconds. Your caddy should now be “connected” to the remote control. This is used to align the caddy frequency with an out-of- tune or replacement remote control or new control box.
- Page 13 reacts promptly to any turning command, so it will take you some practice to get just the right touch for turning maneuvers. Please be aware that the turning characteristics will change depending on the surface (grass or asphalt), the slope or the weight (loaded, unloaded) of your caddy. The remote is designed to have a reach of approximately 80-120 yards, but we strongly recommend to operate the caddy in closer range of 10-30 yards (do not exceed 50 yards) to be able to react to any unforeseen events, such as other...
- Page 14 3.5.1.6. Never touch the electric poles of the battery!! Safety hazard!! 3.5.2. Battery Charging Connect the battery cable plug with the charger and then plug the charger into an electrical outlet. During the charging cycle the indicator LED on the charger will show a blinking green light (some models also have a red steady light during charging).
-
Page 15: Important Safety Instructions
The quickest way to ruin lead-acid batteries is to discharge them deeply and leave them stand “dead” for an extended period of time. When they discharge, there is a chemical change in the positive plates of the battery. They change from lead oxide when charged to lead sulfate when discharged. -
Page 16: Electronic System
hazard, around bushes and trees, it is recommended to operate the caddy via manual control in order to prevent any collisions, damage or the need for complicated correction adjustment maneuvers. 5. Electronic Systems • Remote control Range: We recommend do not to exceed 50 yards distance. The greater the distance between you and your caddy, the greater the chance of losing contact with it. - Page 17 • Remove the rear wheels every few weeks and remove any debris that might cause the wheels to drag. You might also apply some lubricant, such WD-40 to keep moving parts smooth. Inspect your cart at least once a year thoroughly, please contact our •...
-
Page 18: Technical Specifications
7. Technical Specification 7.1. Model X9R and X9R-S Control Remote control up to 80-120 yard: Forward, Backward, Left Turn, Right Turn, Pause. 5 speed adjustment. Timed advance function: 10, 20 and 30 meter/yard Automatic forward cruise. Motor 2 x 200W (400W) noiseless 12V DC 33Ah Deep Cycle... - Page 19 7.2 Model X9R-Lithium Control Remote control up to 80-120 yard: Forward, Backward, Left Turn, Right Turn, Pause. 5 speed adjustment. Timed advance function: 10, 20 and 30 meter/yard Automatic forward cruise. Motor 2 x 200W (400W) noiseless 24V DC10Ah Deep Cycle...
-
Page 20: Trouble Shooting
8. Trouble Shooting SYMPTOM ACTION Caddy does not have Check battery charge level power Check fuse in battery case Check all wiring connections and plugs Check if wheels and clutches are in order Motor is running, but • Check if wheels are secured to axle by split pin wheels don’t turn •... - Page 21 Open the handle case with a screwdriver. Make sure the handle line plug is in the right position on the handle electronic board. It will happen when the line of the caddy is not connected at correct position in security. Question 3: The caddy’s main power is on, and battery indicator lights are on, but the caddy does not run or one motor does not run.
-
Page 22: One-Year Limited Warranty
Question 8: Where can I purchase spars parts or accessories for my caddy? Reply: You can purchase spare parts and accessories from our authentic dealer or order online at: http://www.novacaddy.com 10. One-Year Limited Warranty Your NovaCaddy product is warranted to be defects in materials and workmanship for one year after the date of purchase.
