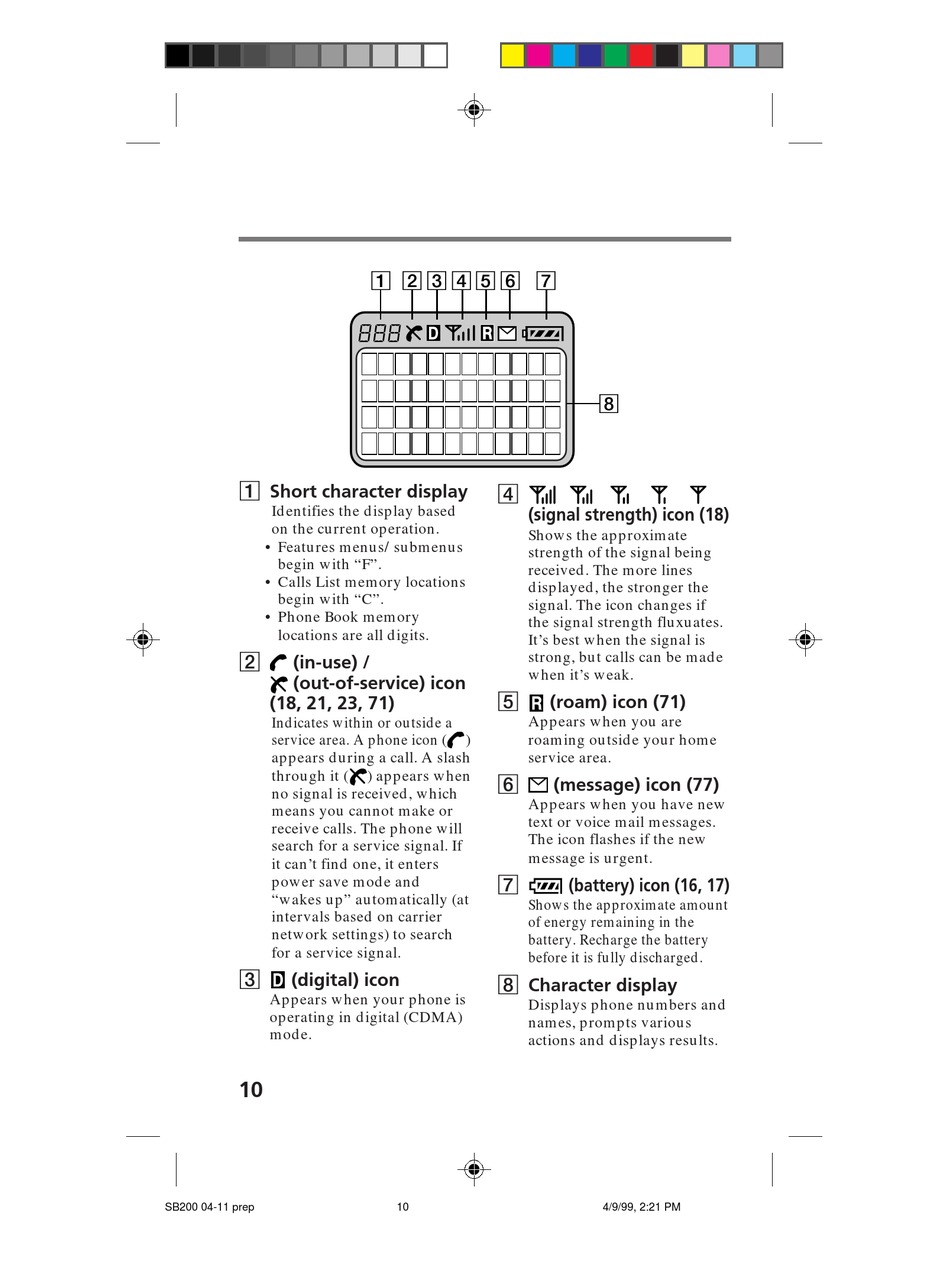

Sony CM-SB200 Operating Instructions Manual page 10

1 Short character display
Identifies the display based
on the current operation.
• Features menus/submenus
begin with "F".
• Calls List memory locations
begin with "C".
• Phone Book memory
locations are all digits.
2
(in-use) /
(out-of-service) icon
(18, 21, 23, 71)
Indicates within or outside a
service area. A phone icon (
appears during a call. A slash
through it (
no signal is received, which
means you cannot make or
receive calls. The phone will
search for a service signal. If
it can't find one, it enters
power save mode and
"wakes up" automatically (at
intervals based on carrier
network settings) to search
for a service signal.
3
(digital) icon
Appears when your phone is
operating in digital (CDMA)
mode.
10
SB200 04-11 prep
1 2 3 4 5 6 7
888
4
(signal strength) icon (18)
Shows the approximate
strength of the signal being
received. The more lines
displayed, the stronger the
signal. The icon changes if
the signal strength fluxuates.
It's best when the signal is
strong, but calls can be made
when it's weak.
5
Appears when you are
) roaming outside your home
service area.
) appears when
6
Appears when you have new
text or voice mail messages.
The icon flashes if the new
message is urgent.
7
Shows the approximate amount
of energy remaining in the
battery. Recharge the battery
before it is fully discharged.
8 Character display
Displays phone numbers and
names, prompts various
actions and displays results.
10
8
(roam) icon (71)
(message) icon (77)
(battery) icon (16, 17)
