Nederman 884 Assembling Instructions

HOSE REEL SER. 884
CHANGING THE SPRING
WARNING!
Risk of personal injury!
Before starting any operation
in the reel:
- Turn off the supply of air/
water/oil/grease.
- Release the spring tension
by disconnecting tool, if any,
from the hose, removing the
hose stop and allow the hose
to recoil completely. Follow
the instructions carefully
when handling the spring.

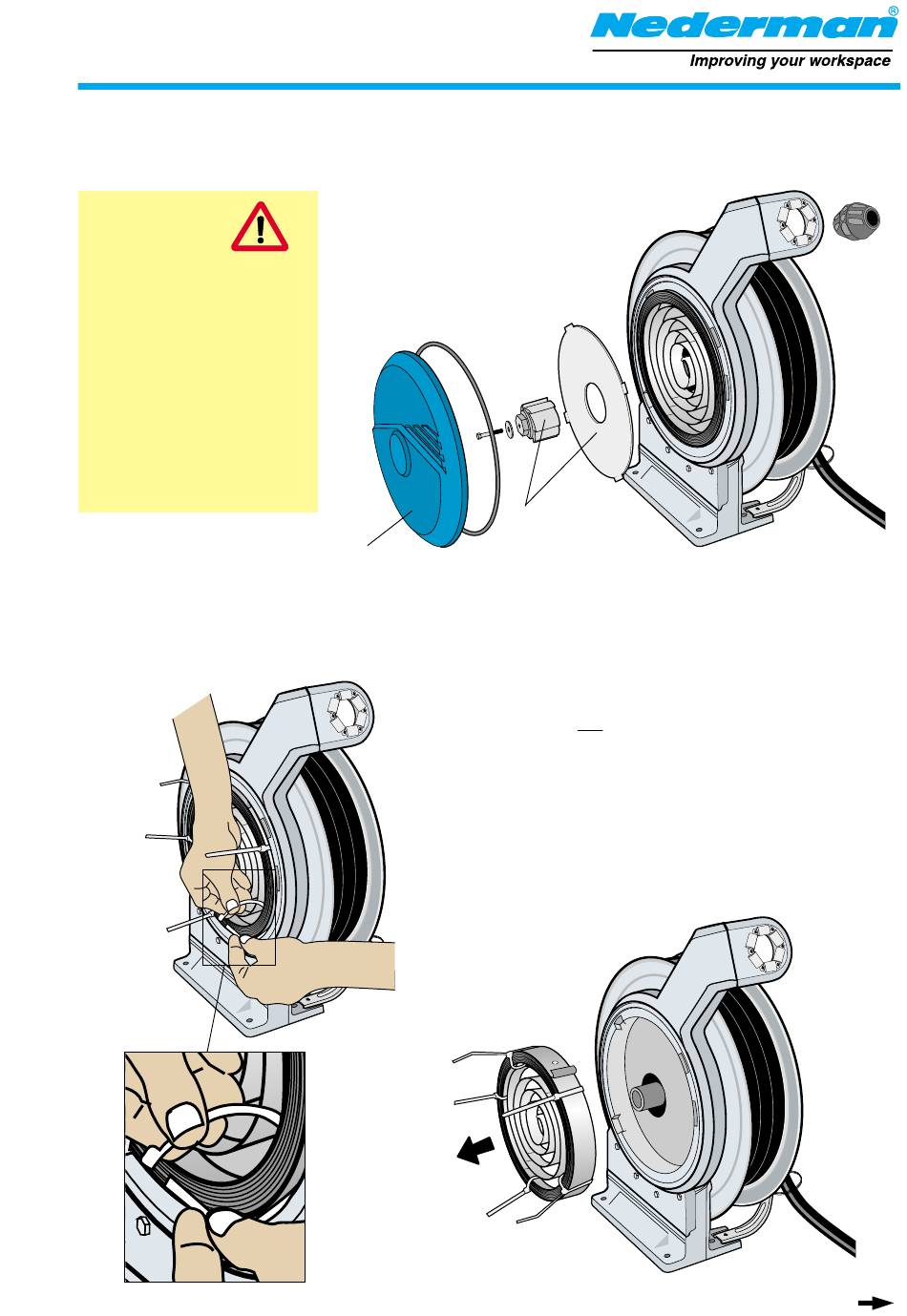

DISMANTLING
1
Unscrew the
blue cover.
3
4
Fit the plastic stripes to the
spring. The stripes comes
in the package together
with the new spring.
5
Remove the
damaged spring.
2
Remove the
spring lid and
hub. Use a tool
if necessary.
IMPORTANT!
Check the rivet which holds the spring
together and is positioned at the spring
periphery. If the rivet is damaged, the
spring must not be removed from the
drum. The cassette with outlet arm
including spring must in that case be
changed as one unit.
NO. 148435 01
DATE 2000-09-01
Turn the page
