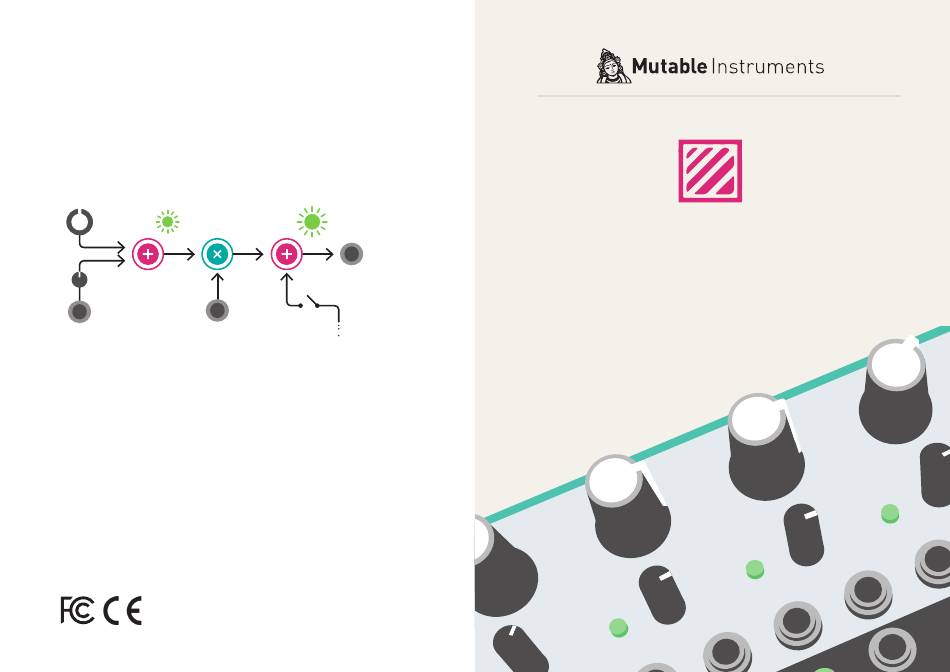

Blinds is a 4-channel voltage-controlled signal polarizer.
Each channel consists of a polarizer circuit, also known
as a four-quadrant multiplier. This circuit acts like a
VCA, except that a negative control voltage will cause the
output signal to be inverted, instead of being silenced.
Blinds' outputs are daisy-chained, allowing adjacent
groups of 2, 3, or all 4 channels, to be mixed together.
MOD in
IN
Blinds requires a -12V / +12V power supply (2x5 pin connector).
The red stripe of the ribbon cable (-12V side) must be oriented
on the same side as the "Red stripe" marking on the board.
The module draws 70mA from the -12V rail and 70mA from the
+12V rail. Current consumption can reach 90mA on either rail
depending on the color and brightness of the LEDs.
Online manual and help
The full manual can be found online at
mutable-instruments.net/modules/blinds/manual
For help and discussions, head to
mutable-instruments.net/forum
Please refer to the online manual for detailed infor-
mation regarding compliance with EMC directives
OUT
Previous
channels
Blinds
Quad VC-polarizer
