Plaits requires a
-12V/+12V
side) must be oriented on the same side as the "Red stripe" marking on the module and on your power
distribution board. The module draws
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
This device meets the requirements of the following standards: EN55032, EN55103-2,
EN61000-3-2, EN61000-3-3, EN62311.
A. Model selection buttons
8 models. The second bank is focused on noisy and percussive sounds.
Mutable Instruments | Plaits
power supply (2x5 pin connector). The red stripe of the ribbon cable (-12V
50mA
from the
and LEDs displaying the active model. Each button cycles through a bank of
1 of 11
+12V
rail, and
5mA
from the
-12V
rail.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mutable Instruments Plaits
Summary of Contents for Mutable Instruments Plaits

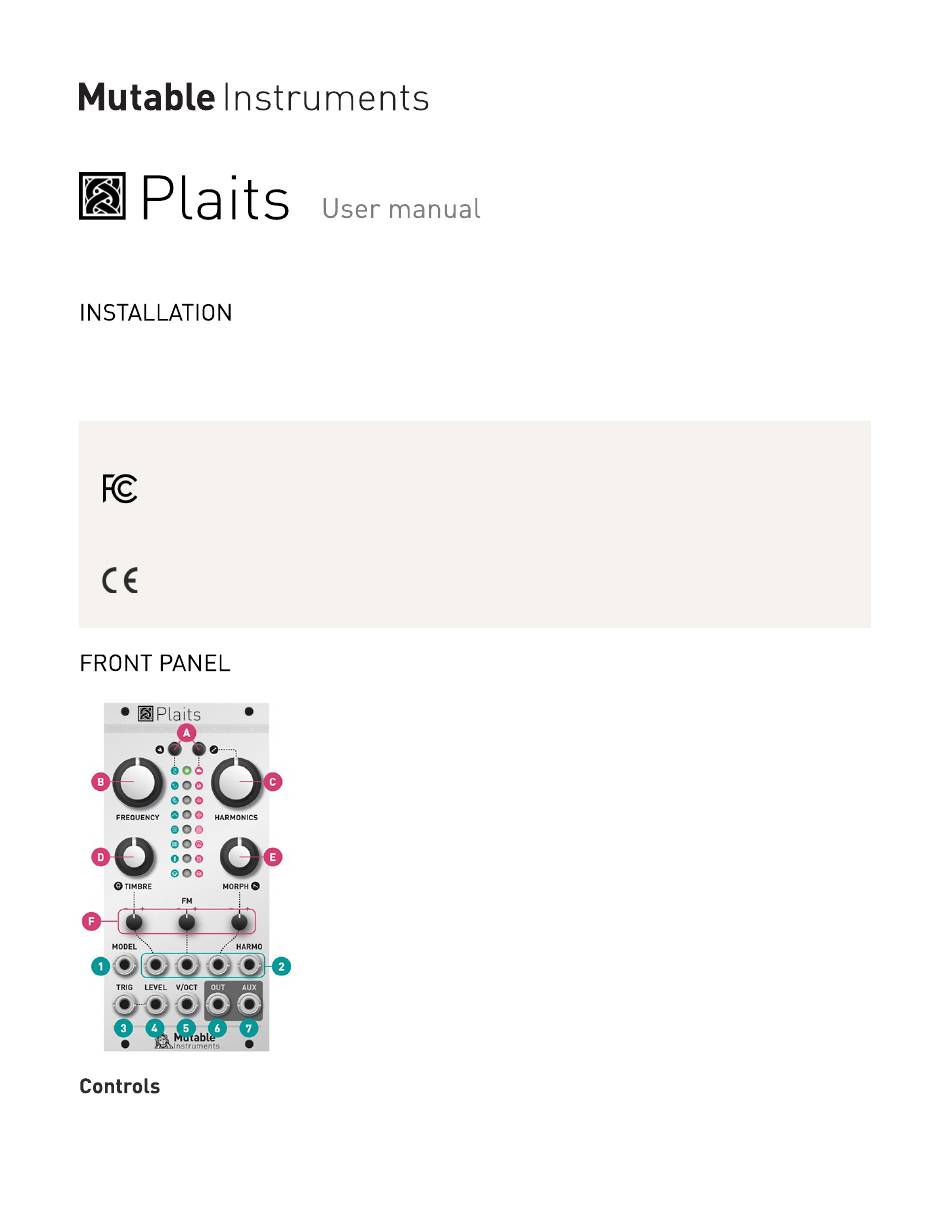

- Page 1 Mutable Instruments | Plaits Plaits requires a -12V/+12V power supply (2x5 pin connector). The red stripe of the ribbon cable (-12V side) must be oriented on the same side as the “Red stripe” marking on the module and on your power distribution board.
- Page 2 Mutable Instruments | Plaits B. Coarse frequency control. By default, it covers a range of 8 octaves, but it can be narrowed down to 14 semitones (refer to the FREQUENCY knob range section). C. D. E. Model-dependent tone controls. Their actual function varies from model to model. In general,...
- Page 3 Mutable Instruments | Plaits Hold the second button and turn the HARMONICS knob to adjust the range of the FREQUENCY knob. The first 8 settings correspond to C0 +/- 7 semitones, C1 +/- 7 semitones, and so on. The last setting, with...
- Page 4 Mutable Instruments | Plaits An asymmetric triangle processed by a waveshaper and a wavefolder. Sounds familiar? That’s the same signal processing chain as in Tides, when it runs at audio rate! HARMONICS: waveshaper waveform. TIMBRE: wavefolder amount. MORPH: waveform asymmetry.
- Page 5 Mutable Instruments | Plaits An additive mixture of harmonically-related sine waves. HARMONICS: number of bumps in the spectrum. Starts with one big bump, and progressively adds ripples around it. TIMBRE: index of the most prominent harmonic. This control is somewhat similar to the cutoff frequency of a band-pass filter.
- Page 6 Mutable Instruments | Plaits a mess!). MORPH: column index. AUX: low-fi (5-bit) output. Four-note chords, played by virtual analogue or wavetable oscillators. The virtual analogue oscillators emulate the stack of harmonically-related square or sawtooth waveforms generated by vintage string&organ machines.
- Page 7 Mutable Instruments | Plaits appropriate compensation to keep the pitch unchanged). MORPH: phoneme or word segment selection. When HARMONICS is past 11 o’clock, a list of words can be scanned through by turning the MORPH knob or by sending a CV to the corresponding input. One can...
- Page 8 Note that Plaits uses a less powerful processor than Rings, and is thus limited to 3 voices of polyphony in inharmonic string modeling mode, and 1 voice of polyphony with 24 partials in modal resonator mode. Plaits does not allow you to control the position of the excitation, which is set to 25% of the length of the string/bar/tube.
- Page 9 Mutable Instruments | Plaits MORPH: decay time. Without any signal patched to the TRIG input, a continuous tone is produced. Not particularly useful, but its amplitude can still be modulated by the MORPH knob and CV input! The drum machine emulated on employs a bunch of bridged T-networks, one for each mode of the shell, excited by a nicely shaped pulse;...
- Page 10 Mutable Instruments | Plaits This product is covered by Mutable Instruments’ warranty, for one year following the date of manufacture. This warranty covers any defect in the manufacturing of this product. This warranty does not cover any damage or malfunction caused by incorrect use - such as, but not limited to, power cables connected backwards, excessive voltage levels, or exposure to extreme temperature or moisture levels.
- Page 11 Mutable Instruments | Plaits 11 of 11...
