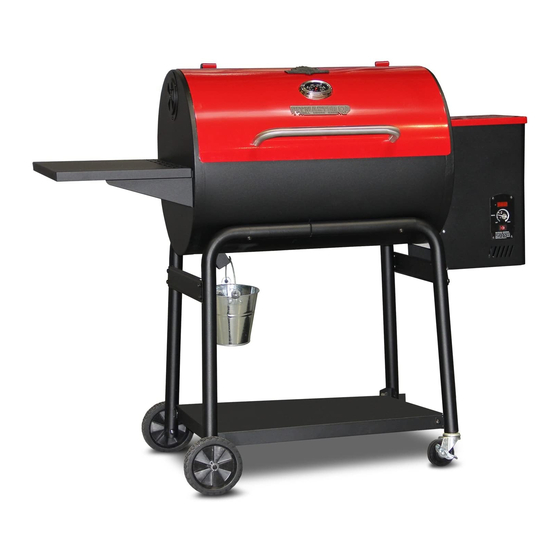

Barrel Grill
Instructions for Assembly and Operation
Please read this entire manual before assembly, installation of your PitmasterQ3 Pellet Grill. Failure to
follow these instructions could result in property damage, bodily injury or even death. Contact your local
building or fire official about restrictions and installation inspection requirements in your area.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY. If you are assembling this unit for
someone else, provide this manual for the owner to read and save for future reference.
RESIDENTIAL PELLET GRILL
FOR OUTDOOR USE ONLY!
SAVE THESE INSTRUCTIONS.
Barrel Grills
Model # 47102, 47103 & 47104
Serial #
Sizes: 24, 30 & 36 inch
Ver. 103014
Advertisement
Table of Contents
Related Manuals for Myron Mixon Smokers Pitmaster Q3 47102
Summary of Contents for Myron Mixon Smokers Pitmaster Q3 47102
-
Page 1: Save These Instructions
RESIDENTIAL PELLET GRILL FOR OUTDOOR USE ONLY! Barrel Grill Barrel Grills Model # 47102, 47103 & 47104 Instructions for Assembly and Operation Serial # Sizes: 24, 30 & 36 inch Please read this entire manual before assembly, installation of your PitmasterQ3 Pellet Grill. Failure to follow these instructions could result in property damage, bodily injury or even death. - Page 2 BARREL GRILL A MoJack Distributors, LLC product 3535 N Rock Road Wichita, KS 67226 1-877-466-5225 www.pitmasterQ3.com Register your Grill online at www.pitmasterQ3.com to validate your warranty. Also sign up for the Q3 Pellet Club to reorder your favorite flavors of the Myron Mixon Wood Pellets. STOP! DO NOT RETURN THE PRODUCT TO THE STORE.
- Page 3 A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS. DANGER HAZARDOUS VOLTAGE CAN SHOCK, BURN OR CAUSE DEATH. DISCONNECT POWER CORDBEFORE SERVICING.
- Page 4 WARNING: FOR OUTDOOR USE ONLY This appliance is NOT intended for indoor use. Use only Myron Mixon Wood Pellets with this pellet smoker grill. Do not use pellet fuel labeled as having additives. Please read this entire manual before you install the product. Failure to follow instructions may result in property damage, bodily injury, or even death.
- Page 5 WARRANTY INFORMATION PitMaster Q3 Pellet Club Join the by visiting www.pitmasterQ3.com/Q3pelletclub or call customer service. We’ll send your favorite flavor of pellets automatically. Beef Chicken Fish Pork Apple Cherry Mesquite Scan with your Hickory Smartphone to Register your Peach Grill! Blend 1-877-575-3173 cUSTOMER SERVICE...
-
Page 6: Warranty Information
WARRANTY INFORMATION LIMITED WARRANTY: The Myron Mixon Pitmaster Q3 wood pellet grill is produced by MoJack Distributors, LLC. referred to as “MoJack”. All warranty and service claims will be addressed by MoJack, Distributors, LLC. For one year of use, MoJack warrants the product against failure due to defect in material or workmanship when product is used properly. - Page 7 PARTS & TOOLS Part # Part Name Grill Pre-assembled side shelf with brackets Caster legs Wheel legs Casters Wheels Bottom shelf Side bars Door Door handle Right door hinge Paddle vent Porcelain grates Grease drain pan Heat baffle Grease bucket Wheel cap Thermostat 23 Temperature sensor rod 1...
-
Page 8: Caster Legs
PARTS & TOOLS Hardware Kit, Part #: HK 24 Barrel Hardware Kit Components Part # Part Name Screws 1/4" Wheel axles Nuts 1/4" Axle washers Flat washers 1/4" Spring washers 1/4" Bolts 1/4" Axle pins Tools Supplied Part # Part Name Open end wrench for installing casters, legs and grill... -
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS OVERVIEW Some components come pre-assembled, but you will need to complete the following assembly: • Connecting the legs • Attaching the side bars to the legs • Attaching the wheels and castors to the legs • Mounting the legs on the grill •... -
Page 10: Wheel Cap
ASSEMBLY INSTRUCTIONS STEP 3 Attach the Side Bars to the Legs Parts required: 2 x Side bars (11) Hardware required: Side bar 8 x Screws 1/4” (34) Screw Align the four holes in each side bar (11) with the holes near the top of each leg assembly. - Page 11 ASSEMBLY INSTRUCTIONS STEP 5 Mount the Legs on the Grill Grill Parts required: Grill (1) Paddle Hardware required: vent 4 x Nuts 1/4” (36) 4 x Flat washers 1/4” (38) Washers 4 x Spring washers 1/4” (39) 4 x Bolts 1/4” (40) Bolt Tools required: Open end wrench (42)
- Page 12 WARNING! Many parts of the Grill will become very hot during operation. Care must be taken to avoid burns, both during operation and afterwards, while the Grill is still hot. It should never be left unattended when young children are present. Never move the Grill when it is operating. Let it thoroughly cool before moving or attempting to transport.
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS The temperature dial can be changed at any time to increase or decrease the cooking temperature of the grill. The grill will take an average of 5 minutes to warm up. See the table below to set temperature in these ranges: GRILLING 400º... -
Page 14: Cleaning And Maintenance
CLEANING AND MAINTENANCE 1. CREOSOTE AND GREASE: Formation and need for removal. • When wood pellets are burned slowly, they produce tar and other organic vapors that combine with expelled moisture to form creo- sote. The creosote vapors condense in the relatively cool flue exhaust of a slow burning fire. As a result, creosote accumulates on the flue lining. -
Page 15: Troubleshooting
CLEANING AND MAINTENANCE (CONT.) WARNING! A shop vac cleaner is the best way to remove ashes from the Firepot but this must be done with extreme care to avoid the risk of fire. Again, cleaning the ash from the Firepot should be done only when the Grill is COLD. A utility-type vacuum cleaner, having a metal collection canister without a bag would be best for this task. - Page 16 TROUBLESHOOTING (cont.) If the auger drive motor is not working, but the draft inducer fan is working, the problem is the auger system, which needs to be checked: • Turn the power switch to OFF. • Locate the small fan blade on the back of the auger motor drive. •...
-
Page 17: Replacement Parts
Replacement Parts If you are missing or require replacement parts, please call customer service at 1-877-575-3173 (Mon – Fri, 8:00 am – 5:00 pm, CST) Identify the required part(s) and have the replacement part number ready when you call. The following parts are available for replacement: •... - Page 18 Myron Mixon Pitmaster Q3 www.pitmasterQ3.com | 1-877-575-3173...
- Page 19 www.pitmasterQ3.com | 1-877-575-3173 Myron Mixon Pitmaster Q3...
