Johnson Controls FS-1300 Product Manual

FS-1300 Combination Fire/Smoke Dampers
Since 1915, Johnson Controls has provided
high-quality dampers that fit customer size and
application requirements. Continuing the legacy, a
fire-and-leakage-rated damper for dynamic life safety
smoke management and fire-resistant systems, that
meets new UL leakage-testing procedures, is now
offered.
•
UL File No. R11172
•
CSFM3230-0554:128
•
1-1/2 Hour Fire Rating
•
Class II leakage resistance
These UL/cUL leakage-rated FS-1300 Combination
Fire/Smoke Dampers are listed under
UL Standard 555, fifth edition, dated May 31, 1995,
and under UL Standard 555S, second edition, dated
November 1993, including all paragraphs effective
May 1995 and California State Fire Marshal listed.
All FS-1300 Combination Fire/Smoke Dampers include
2-position electric or pneumatic actuators that have
been tested and approved as a matched set rated for
350°F temperature degradation .
High-Torque Spring
3-Year Warranty on
Materials and Workmanship
Dual Linkage Standard
Sensor Temperature
Combinations of 165°F and
250°F (74°C and 121°C) or
212°F and 350°F (100°C and
177°C)
16-Gauge Galvanized Steel
Blades
© 1999 Johnson Controls, Inc.
Code No. LIT-2681190
1-1/2 Hour/Class II Leakage
Features and Benefits
Ensures closure during dynamic airflow and
acts as the latch with additional torque to keep
blades closed
Confidence of company standing behind
product
Ensures complete rotation of all blades
Combinations of heat-sensing devices to meet
job requirements
One blade profile provides the correct product
performance
Damper and Actuator Product Guide 268.1

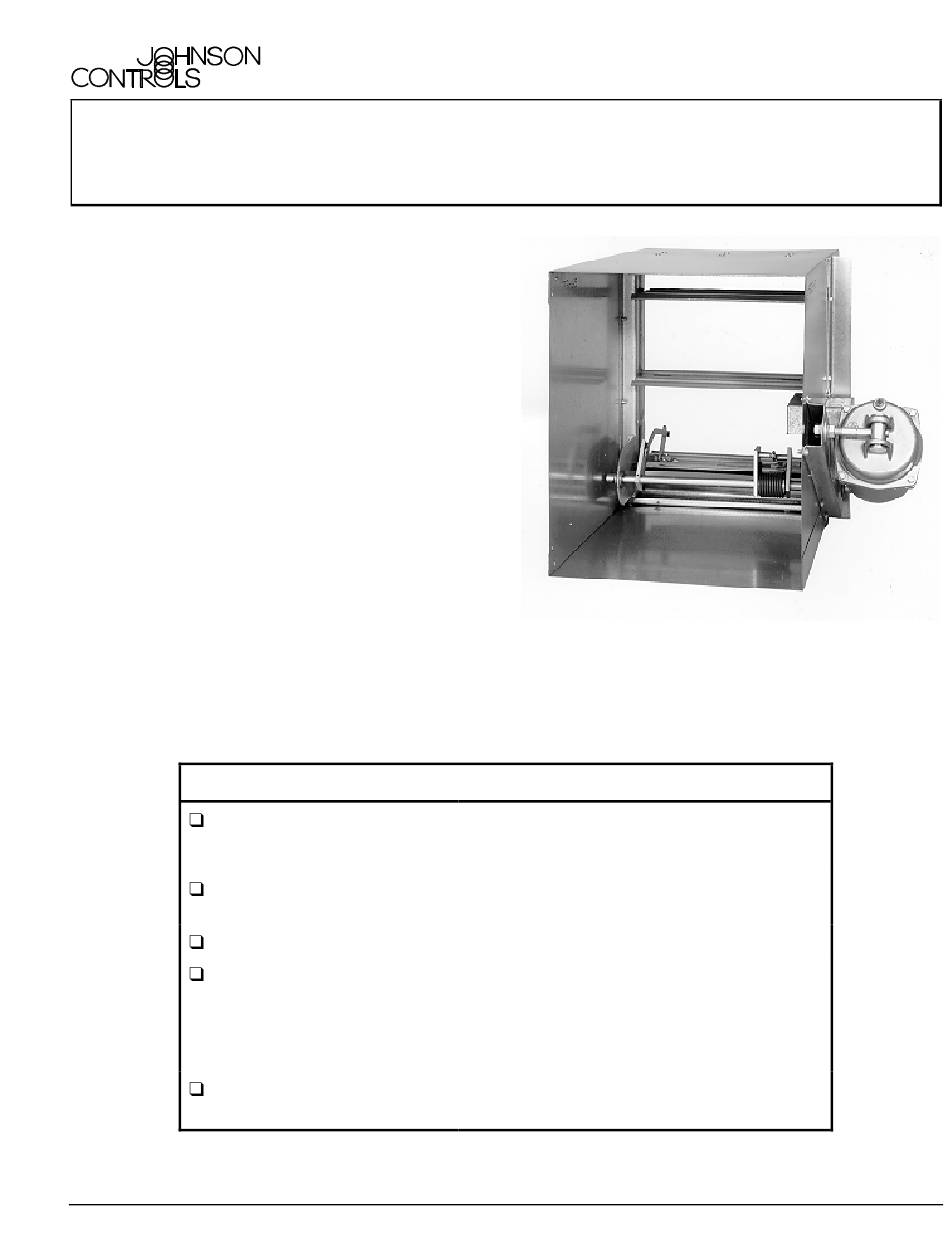

Figure 1: FS-1300 Combination Fire/Smoke Damper
Fire/Smoke Section
Product Bulletin FS-1300
Issue Date 0499
www.johnsoncontrols.com
1
