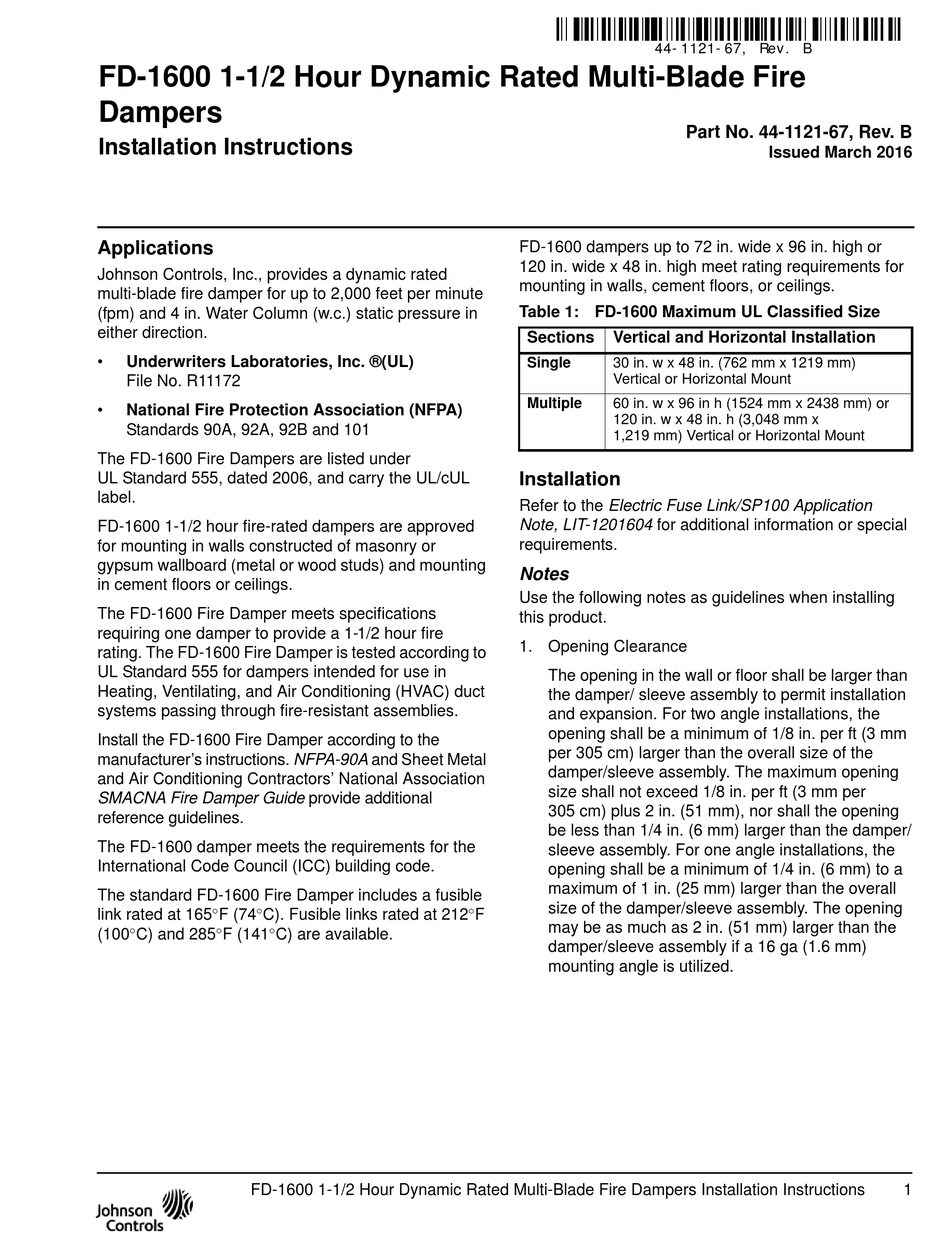

FD-1600 1-1/2 Hour Dynamic Rated Multi-Blade Fire
Dampers
Installation Instructions
Applications
Johnson Controls, Inc., provides a dynamic rated
multi-blade fire damper for up to 2,000 feet per minute
(fpm) and 4 in. Water Column (w.c.) static pressure in
either direction.
• Underwriters Laboratories, Inc. ®(UL)
File No. R11172
• National Fire Protection Association (NFPA)
Standards 90A, 92A, 92B and 101
The FD-1600 Fire Dampers are listed under
UL Standard 555, dated 2006, and carry the UL/cUL
label.
FD-1600 1-1/2 hour fire-rated dampers are approved
for mounting in walls constructed of masonry or
gypsum wallboard (metal or wood studs) and mounting
in cement floors or ceilings.
The FD-1600 Fire Damper meets specifications
requiring one damper to provide a 1-1/2 hour fire
rating. The FD-1600 Fire Damper is tested according to
UL Standard 555 for dampers intended for use in
Heating, Ventilating, and Air Conditioning (HVAC) duct
systems passing through fire-resistant assemblies.
Install the FD-1600 Fire Damper according to the
manufacturer's instructions. NFPA-90A and Sheet Metal
and Air Conditioning Contractors' National Association
SMACNA Fire Damper Guide provide additional
reference guidelines.
The FD-1600 damper meets the requirements for the
International Code Council (ICC) building code.
The standard FD-1600 Fire Damper includes a fusible
link rated at 165F (74C). Fusible links rated at 212F
(100C) and 285F (141C) are available.
FD-1600 1-1/2 Hour Dynamic Rated Multi-Blade Fire Dampers Installation Instructions
44- 1121- 67, Rev . B
Part No. 44-1121-67, Rev. B
FD-1600 dampers up to 72 in. wide x 96 in. high or
120 in. wide x 48 in. high meet rating requirements for
mounting in walls, cement floors, or ceilings.
Table 1: FD-1600 Maximum UL Classified Size
Sections Vertical and Horizontal Installation
Single 30 in. w x 48 in. (762 mm x 1219 mm)
Vertical or Horizontal Mount
Multiple 60 in. w x 96 in h (1524 mm x 2438 mm) or
120 in. w x 48 in. h (3,048 mm x
1,219 mm) Vertical or Horizontal Mount
Installation
Refer to the Electric Fuse Link/SP100 Application
Note, LIT-1201604 for additional information or special
requirements.
Notes
Use the following notes as guidelines when installing
this product.
1. Opening Clearance
The opening in the wall or floor shall be larger than
the damper/ sleeve assembly to permit installation
and expansion. For two angle installations, the
opening shall be a minimum of 1/8 in. per ft (3 mm
per 305 cm) larger than the overall size of the
damper/sleeve assembly. The maximum opening
size shall not exceed 1/8 in. per ft (3 mm per
305 cm) plus 2 in. (51 mm), nor shall the opening
be less than 1/4 in. (6 mm) larger than the damper/
sleeve assembly. For one angle installations, the
opening shall be a minimum of 1/4 in. (6 mm) to a
maximum of 1 in. (25 mm) larger than the overall
size of the damper/sleeve assembly. The opening
may be as much as 2 in. (51 mm) larger than the
damper/sleeve assembly if a 16 ga (1.6 mm)
mounting angle is utilized.
Issued March 2016
1
