BD-1300 Control Dampers
Installation Instructions
Applications
Since 1905, Johnson Controls has provided high
quality dampers that fit customer application and size
requirements. Continuing the legacy of application
based products, a balancing damper is now offered.
BD-1300 Balancing Dampers include:
self-lubricating bearings
rigid, 13-gauge frame
16-gauge blades
single side linkage
BD-1300 balancing dampers are designed and built for
balancing or variable volume control only and must not
be used for tight shutoff. These dampers are intended
for manual operation but can be motorized when
required. No seals are provided.
BD-1300 dampers come in sizes that meet different
balancing application and environmental requirements.
These applications include, but are not limited to:
volume (air) control applications, which regulate
airflow
pressure control applications, which maintain a
constant pressure
manual or motorized applications
frames can be fastened together for larger sizes
IMPORTANT: BD-1300 Balancing Dampers are not
suitable for installation with the blades in a vertical
position for motorized applications.
Installation
Items Needed
nut driver, 5/16 inch socket
hammer
hole saw, 1-1/4 inch
44- 352- 35, Rev . C
drill bit, 3/16 inch (5 mm), No. 9 or 10
drill
No. 12 self-tapping or No. 10-24 machine screws
Orientation and Identification
BD-1300 series dampers may be installed with the
frame in either vertical (wall) or horizontal (floor or
ceiling) positions. The dampers may be positioned with
the blades running horizontal or vertical.
For clearance during installation, the dampers are built
1/4 in. inch smaller than nominal. For example, a
24 x 24 inch damper actually measures 23-3/4 x 23-3/4
inches.

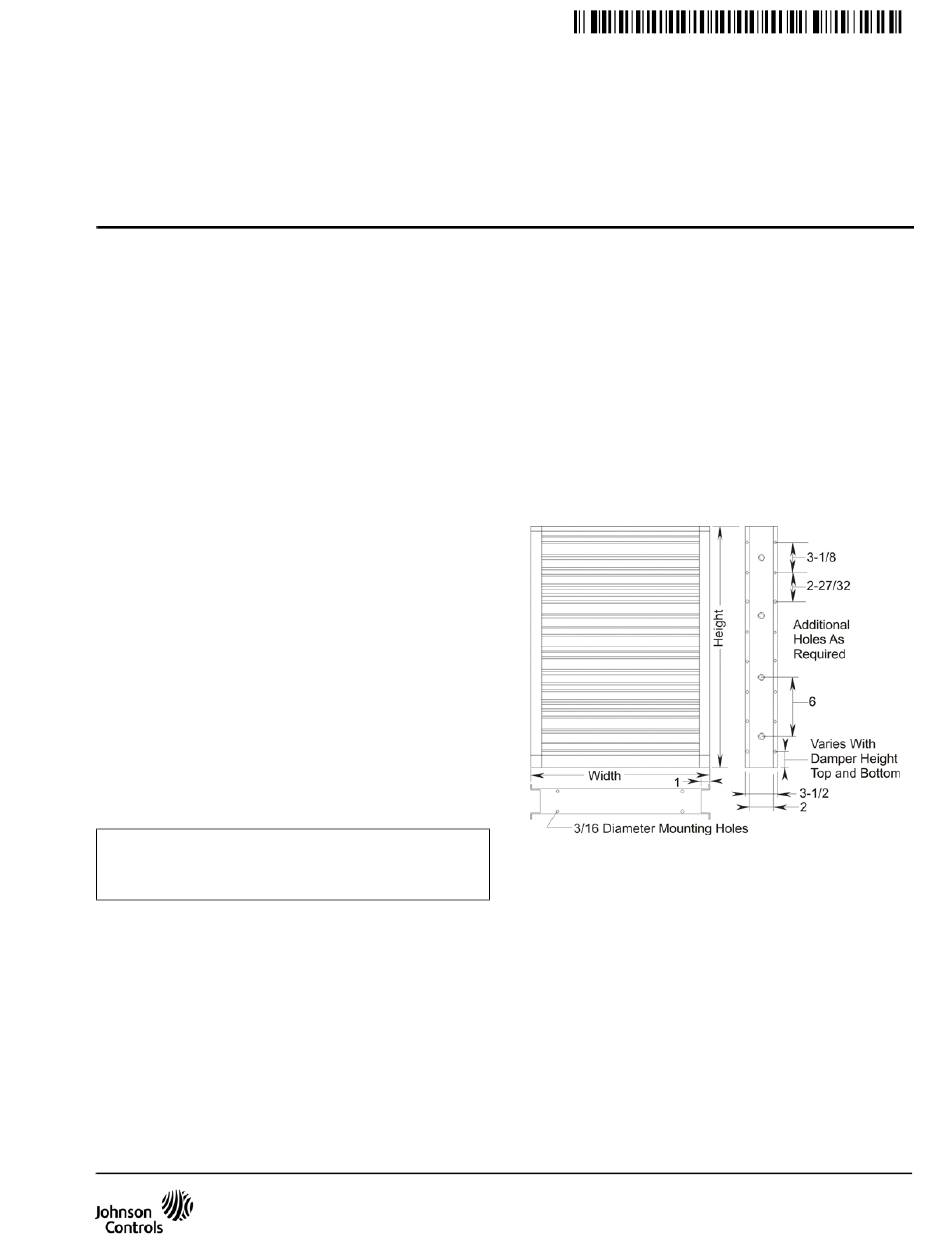

Figure 1: Single Section Dimensions, in.
Note: All Johnson Controls® damper dimensions are
from the outside edges of the damper section.
Mounting holes are provided in the section for either
No. 12 self-tapping screws or No. 10-24 machine
screws with nuts to secure the damper frame to ducts
or other frames.
BD-1300 Control Dampers Installation Instructions
Part No. 44-352-35, Rev. C
Issued March 2016
1
