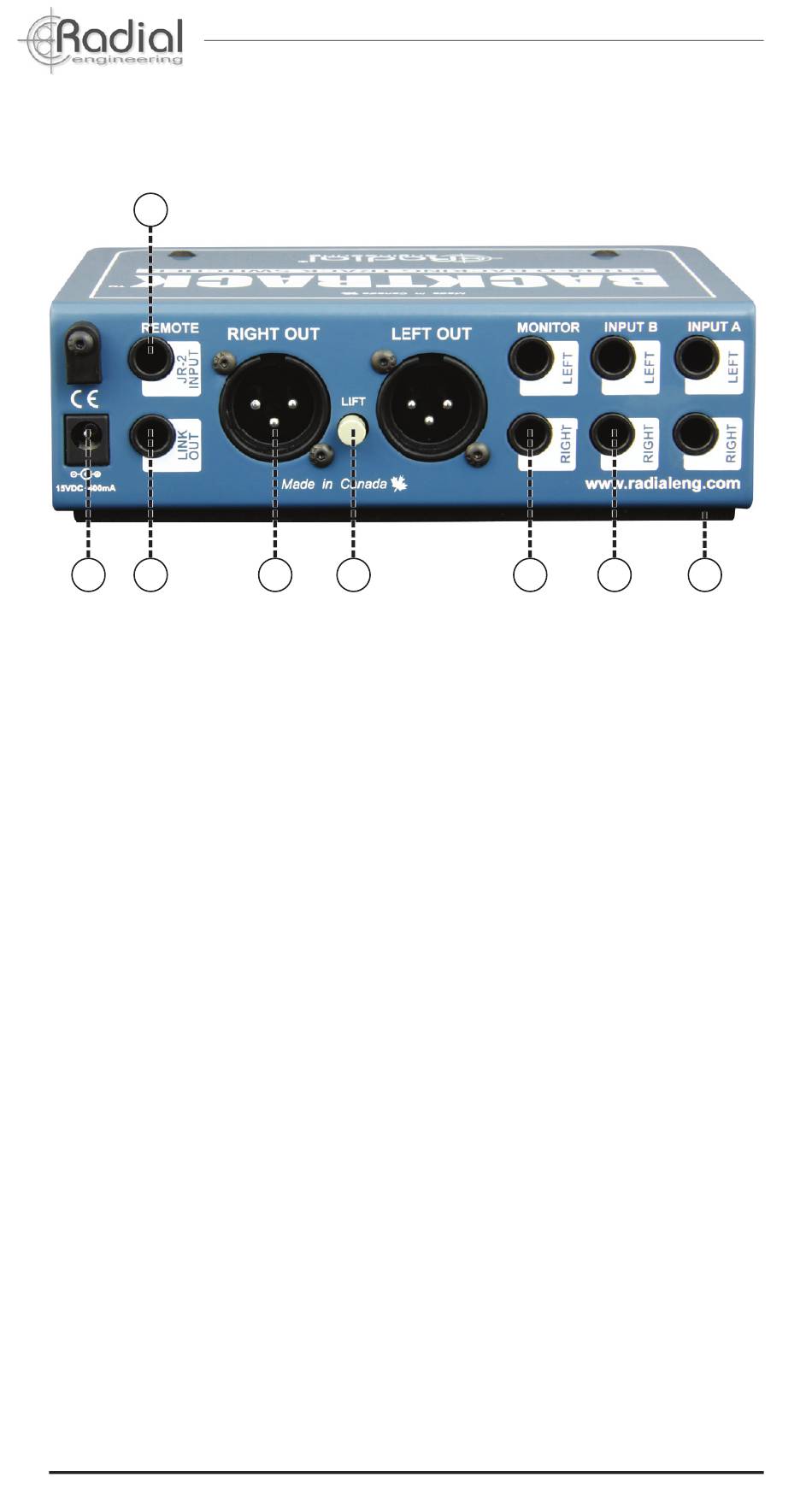

7. PoWer: 15VDC input for the Backtrack power supply. Handy cable
lock ensures supply will not be accidentally disconnected.
8. link oUT: ¼" TRS output to feed the remote input on a second
Backtrack to operate both simultaneously.
9. remoTe in: ¼" TRS jack for connecting a JR-2 remote footswitch.
10. main oUTPUT: XLR outputs feed the PA system, with transformer
isolation to eliminate hum and buzz from ground loops.
11. groUnD lifT: Lifts the audio ground path on the XLR outputs to
further reduce hum and buzz from ground loops.
12. moniTor oUT: ¼" outputs for connection to a pair of powered
speakers.
13. ¼" TrS inPUTS: Stereo inputs A and B for connection to two
playback sources.
14. non SliP PaD: Provides electrical & mechanical isolation and
keeps the unit from sliding around.
