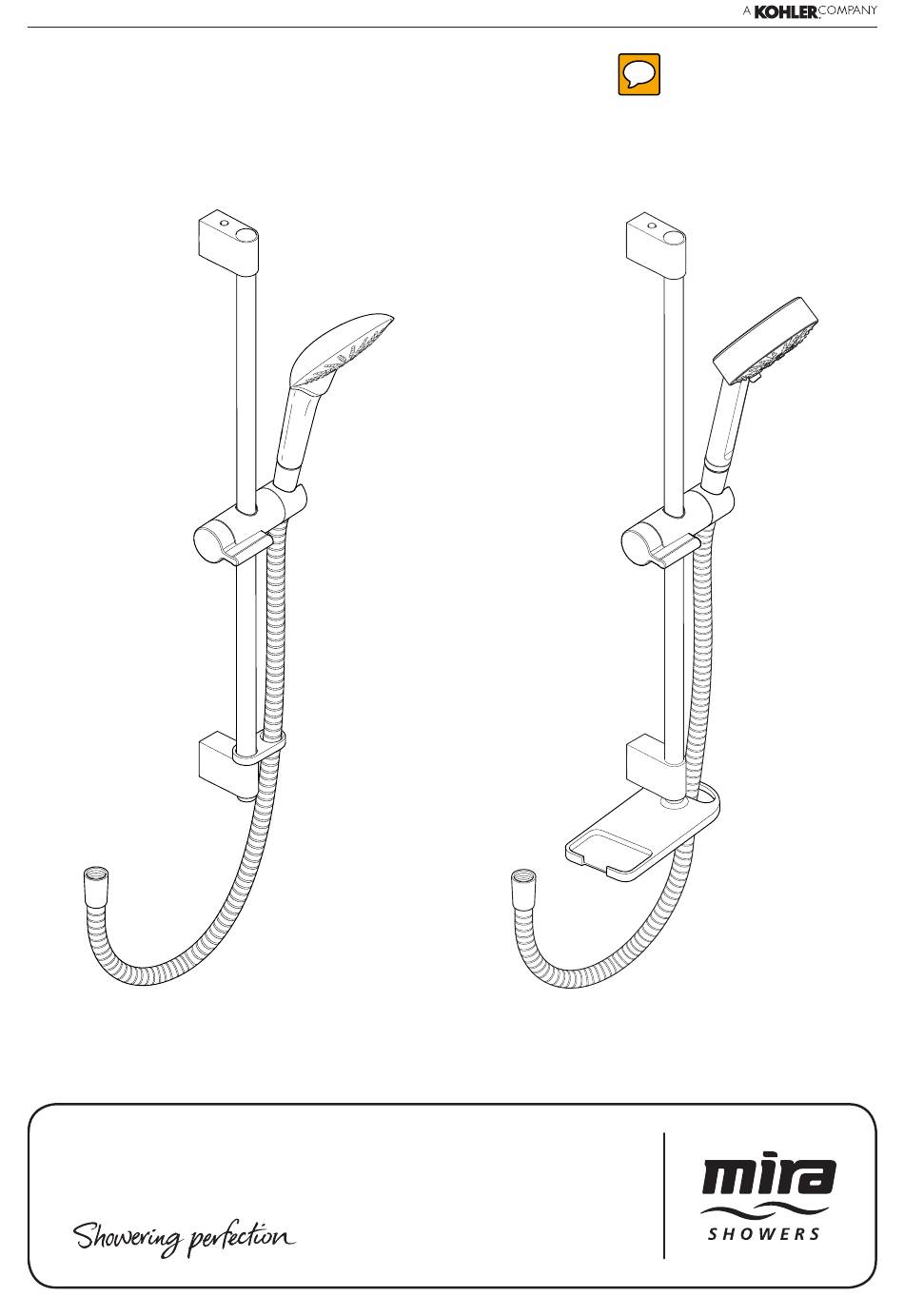

- Page 1 Mira Shower Fittings (L16J) These instructions must be left with the user Installation & User Guide 1269096-W2-B...
-
Page 2: Specification
SPECIFICATION Minimummaintainedwaterpressure:0.1bar(10kPa) Maximummaintainedwaterpressure:5.0bar(500kPa) INSTALLATION General I nstallation of the shower fittings must be carried out in accordance with these instructionsbyqualified,competentpersonnel. T heplumbinginstallationmustcomplywithallnationalorlocalwaterregulationsand allrelevantbuildingregulations,oranyparticularregulationorpracticespecifiedby thelocalwatersupplycompany. T hepositionoftheshowerfittingsmustprovideaminimumairgapof25 m mbetween theshowerheadandthespilloverlevelofanybath,showertrayorbasin.Theremust beaminimumdistanceof30 m mbetweentheshowerheadandthespilloverleverof anytoilet,bidetorotherappliancewithaFluidCategory5backflowrisk. Electric Note! There will be occasions Shower when the hose retaining ring Zone of... - Page 3 D o not fit anyformofflowcontrol intheoutletpipe workif theshower fittingsare installedinconjunctionwithaproductthatrequiresthefittingstoactasavent(e.g. anelectricshower). Donotuseexcessiveforcewhenmakingconnections. Special consideration should be given to the fixing arrangements when installing onto a dry lined, stud partition, shower cubicle or laminated panel wall structures. Installers may wish to obtain alternative proprietary cavity fixings, or choose other options, however, these methods of fixing are beyond the scope of this guide.
- Page 4 Installation of the Soap Dish (if applicable) Looselysecurethetaperblockintothesoapdishwiththesoapdishscrew. Insertthesoapdishassemblyintotheslidebarandtightenthescrew. Caution! Do notovertighten. Installation of the Showerhead and Hose Fitahosesealintotheconicalnutandscrewontotheoutletoftheshower. Caution! Do notovertighten. Feedthehosethroughthehoseretainingloopofthesoapdishorthehoseretainingring. Fitahosesealintotheconicalnutandscrewontotheshowerhead. Caution! Do notovertighten. Placetheshowerheadintotheclampbracket. 1269096-W2-B...
- Page 5 Note! Do not over tighten the screws Slide Bar Support 1841.074 (White) Tighten slide bar clamping 1841.073 (Chrome) screw no more than 1/2 turn Showerhead Slide Bar 1703.196 Cap (x2) M4 Screw 1740.368 (White) 1740.369 (Chrome) 632.73 Showerhead Hose Seal (x2) 632.73 Hose Seal...
-
Page 6: User Maintenance
USER MAINTENANCE De-scaling the Showerhead Important!Keepingtheshowerheadcleanandfreefromlimescalewillensurethatyourshower andshowerheadcontinuetoperformtotheirmaximum.Ablockedshowerheadcanrestrict theflowrateandmaycausedamagetoyourshower. Use your thumb or a soft cloth to wipe any limescalefromthenozzles Inspecting the hose Important! Theshowerhoseshouldbeinspectedperiodicallyfordamageorinternalcollapse, internalcollapsecanrestricttheflowratefromtheshowerheadandmaycausedamagetothe shower.Removetheshowerhosefromtheshower,inspectandreplacethehoseifnecessary. Inspectthehose. Unscrewthehosefromthe showerheadandtheshoweroutlet. 1269096-W2-B... - Page 7 SPRAY MODES Rain + Rain Burst Storm Whenadjustingtheshowerspraymode,do notforcetheleverasproductdamagewilloccur. Saturate Soak Stimulate Soothe Clickoncetoadjusttoeachspraymode. 1269096-W2-B...
-
Page 8: Customer Service
Mira Showers Website (www.mirashowers.co.uk) From our website you can download additional user guides, diagnose faults, purchase ourfullrangeofaccessoriesandpopularsparesand refertoourFAQ's Mira is a registered trade mark of Kohler Mira Limited. The company reserves the right to alter product specifi cations without notice. 14648 1269096-W2-B...
