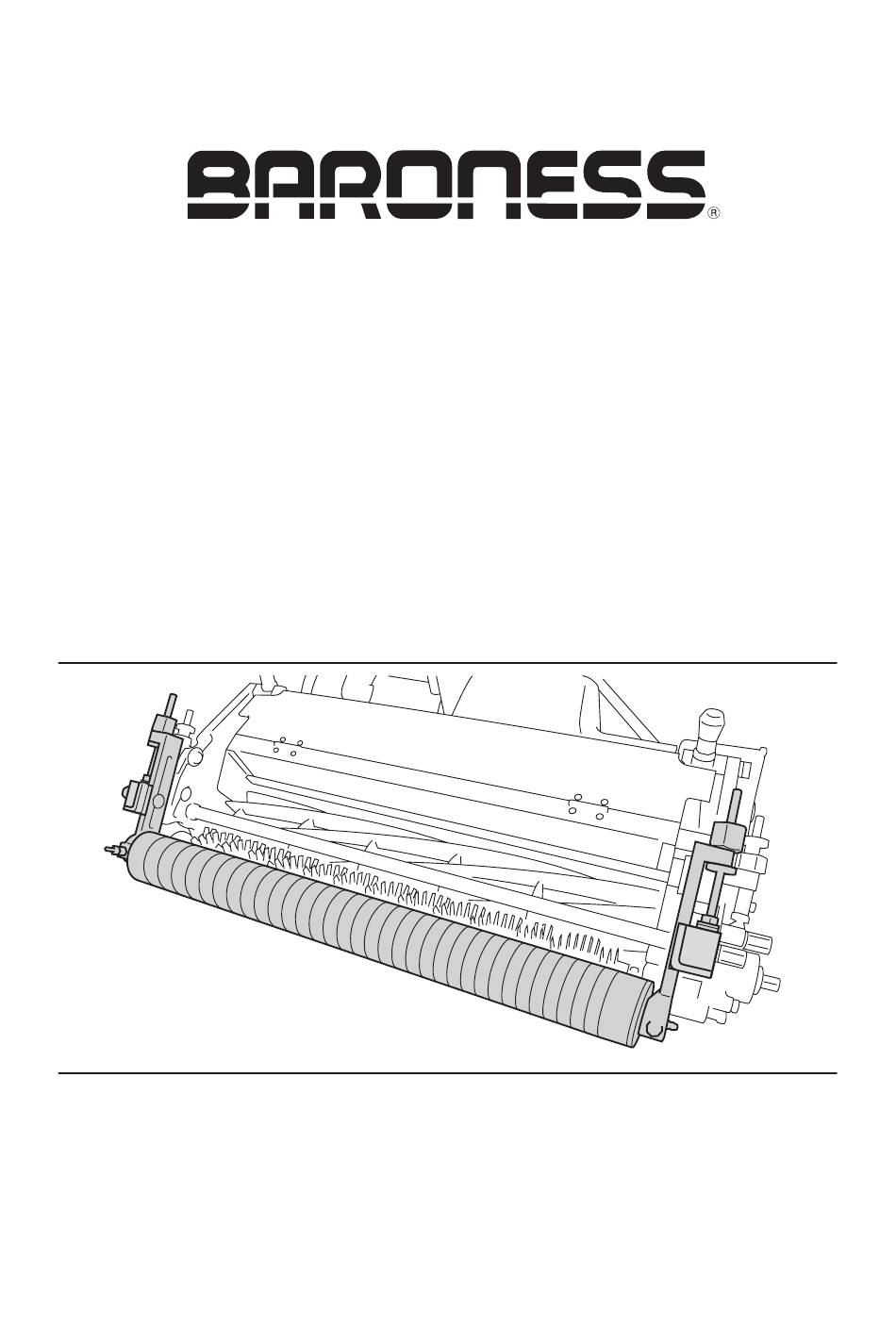

- Page 1 Greens Mowers LM56/66/18G Series Installation Manual No.07.2 Assembly and Installation of Grooved Front Roller Kit...
-
Page 2: Notes For Installation
damaged, replace them immediately with new ones. Do not alter the machine. When replacing parts and grease, use only those specified by BARONESS. The operation of a machine that has been modified or installed with parts other than those specified ... - Page 3 Installing Optional Equipment for the LM56/66/18G LM56/66/18G Grooved Front Roller Kit Check that all parts are included. The following parts are included in the package. Should any part be missing or damaged, please contact the dealer you purchased it from. Grooved roller kit for standard basket : LM56GA-2908Z0 (LM56G) &...
- Page 4 Roller Adjuster 2008 8 Washer 8 Disc Spring Washer 1H K6084000162 K5000080002 K0213080002 4(IGCA) / 6 (STD) 8-13 Tall Nut 20 16 Extension Pin 19 8Sq. Root Round Head Bolt 55 K0149083202 K0025080552 K6083000042 Parts number of No.5 Grooved Front Roller Ass'y Kit No.
- Page 5 Tightening torque Appropriate tightening torque [General bolts Strength class: Required 4.8] Nominal diameter tightening torque kgf-cm lb-in 7–9 71.38~91.77 61.96~79.66 14–19 142.76~193.74 123.91~168.17 29–38 295.71~387.49 256.68~336.34 Caution When tightening bolts, refer to the above table. We will not be held responsible for any damage resulting from improper or excessive tightening, etc.
- Page 6 LM56/66/18G Installing the LM56/66/18G Section Grooved Front Roller Kit Step Illustration Description Screw nut, Part (4) onto threaded leg of bolt, Part (3). When threading the nut, Part (4) onto Part (3), be sure to put round side of Part (4) on first.
- Page 7 LM56/66/18G Installing the LM56/66/18G Section Grooved Front Roller Kit Screw Part (7) counter clockwise into left side of Part (5). Using 2 wrenches lock down the grease nipple, Part (8) into Part (7). Take roller adjuster screw, Part (9) and tread roller adjuster, Part (10) on the longer threaded side till it is sitting about half way down the tread.
- Page 8 LM56/66/18G Installing the LM56/66/18G Section Grooved Front Roller Kit Place disc spring washer, Part (12) convex side up over Part (A). * Use Part (A), only when installing IGCA. Screw short threaded leg of roller adjustment screw, Part (9) through Parts (12), (A), (11), and then into frame.
- Page 9 LM56/66/18G Installing the LM56/66/18G Section Grooved Front Roller Kit Place disc spring washer, Part (12) convex side up over Part (B). * Use Part (B), only when installing IGCA. Screw short threaded leg of roller adjuster screw, Part (9) through Parts (12), (B), (11), and then into frame.
- Page 10 LM56/66/18G Installing the LM56/66/18G Section Grooved Front Roller Kit Tighten and lock Part (15) into right shaft of Part (5). Be careful not to tighten the bolt too hard. Screw Part (8) into Part (15). Loosen Part (4) then unlock locking bolt Part (3) on Part (2).
- Page 11 LM56/66/18G Installing the LM56/66/18G Section Grooved Front Roller Kit Tighten and lock Part (4) on both sides to secure and lock position on Part (3). Add slight amount of grease to Part (8) on both sides. Pump grease while spinning Part (5) to feel for smooth rotation.
- Page 12 Head Office 1-26, Miyuki-cho, Toyokawa, Aichi-Pref, 442-8530 Japan. Phone: +81.533.84.1390 Fax: +81.533.89.3623 LM56G---AM07USB/12B-00-KES C...
