iHome iB29 User Manual

Model: iB29
IB English/French (Front)
Color: 1C + 1C - Black text on white paper
Size: 270 W x 270 H (mm)
Date: Jan. 04, 2016
iB29

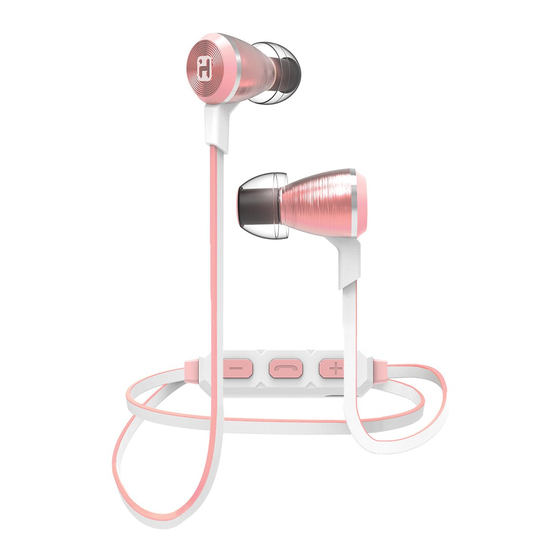

Wireless Noise Isolating Metal Earbuds
mic+remote rechargeable
•
User Manual
CHARGE
BEFORE
BC
3. Power Off
To shut the power 'Off' at any time PRESS and HOLD the Multi-Function Button (MFB)
on the control dongle for approximately 2 seconds. You will hear three descending
beep tones, the red LED flashes once and then the power shuts off.
4. Manually Pairing Your iHome Ear Buds With Your Bluetooth Device
NOTE: Your ear buds must be 'Off'' to begin the manual pairing process.
With the ear buds in the 'Off' mode, PRESS and HOLD the Multi-Function Button
(MFB) on the control dongle for approximately 4 seconds until you see the LED
indicator alternately flashing blue and red. Release the Multi-Function Button (MFB).
Make sure that your Bluetooth device is turned 'On' and in the Pairing mode. Refer to
the instructions supplied with your device if necessary. When your device "finds" the
iB29 ear buds, you will see "iHome iB29" appear on your devices Bluetooth menu
screen together with the words "Not Paired", "Not Connected" or similar. Touch
"iHome iB29" to complete the pairing process. You will hear a single beep, and you
will see "iHome iB29 Connected" on your devices Bluetooth menu. NOTE: If your
Bluetooth device asks for a Password or a PIN to complete the pairing process, enter
"0000" on the keypad of your device.
You are now ready to begin streaming music wirelessly from your Bluetooth device to
your iHome iB29 Bluetooth ear buds.
5. Using Your iHome Bluetooth Ear Buds
The chart below explains the basic functions and operations of your Bluetooth ear buds.
Function Action Required
When ear buds are "Off" Press and Hold the MFB inward for 3 seconds until you
Turn Ear Buds 'On'
hear the "Power On" voice prompt.
When ear buds are "Off" Press and Hold the MFB inward for 6 seconds until you
Enter the Pairing Mode
hear the "Pairing" voice prompt. The LED indicator flashes blue and red rapidly
Make sure your Bluetooth device is "On" and in the Pairing Model. When iHome
Pairing
iB29 appears on your devices menu, select it to complete pairing.
Play / Pause Short press the MFB inward to start playback. Short press to pause playback.
Short press to resume playback.
Skip to next track
Press the >> button during playback
Skip to beginning of current track Press the << button playback
or go to the previous track.
Increase volume Press and hold the "+" button during playback
Decrease volume Press and hold the " - " button during playback
Answer an incoming phone call Short press the MFB when you hear the incoming ring sound. NOTE: Music will
automatically pause when you are answering a call and resume when you end the call.
Decline an incoming phone call Press and hold the MFB for 1 - 2 seconds to decline the incoming call.
Short press the MFB to end the call and "hang up".
End a call
Transfer a call between the While the call is in progress press & hold the MFB 2 seconds to transfer the call
phone and the ear buds
between the phone and the ear buds.
Last number redial When phone is paired with ear buds but no call is in progress double press the
MFB to redail the last number
Double press the MFB to place current call on hold and answer an incoming 2nd
Answer second call/Call waiting
call. Double press again as needed to switch between calls.
Turn Ear Buds Off
Press and hold the MFB for 3 seconds until your hear the "Power Off" prompt and
LED indicator shuts off.
2
Introduction
Your new iHome Bluetooth stereo ear buds are designed to link with your Bluetooth
enabled smartphone or music player to allow you to wirelessly listen to music and answer
phone calls within the normal 10 meter (33 feet) Bluetooth operating range.
Your ear buds are supplied with 3 sizes of ear cushions and 3 sets of 'fin' type stabilizers,
to allow you to customize your ear buds for maximum wearing comfort and stability
during all kinds of exercise and physical activities.
Please review this manual carefully to make sure you are getting the maximum benefit
from all of the features of your new ear buds, and keep this manual for future reference.
What's Included
USE
iB29 Stereo ear buds
with control dongle
Specifications
BT specification V4.1
BT profiles supported A2DP, AVRCP, GAVDP, GAP, HSP
BT IC AB1510
Frequency Range 20Hz - 20kHz
Rechargeable Battery 65mAh Li-Polymer x 1
Operating distance 10 Meter without any obstacle
Impedance (speaker) 32ohm
Speaker dimension Ф 8mm
Working electric current (TBA) mA
Working Voltage 3~4.2V
Talk time 3.5 hours (with fully charged battery)
Music time 3.5 hours (with fully charged battery)
Standby time 144 hours (under paired)
Charging time about 1 hour
FCC Information
This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to
the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
• Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
.
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-3 (B)/NMB-3(B)
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102
and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF
exposure and compliance.
PREPARATION FOR USE
1. Controls and Indicators
2. Charging Your Ear Buds
IMPORTANT: Your iHome ear buds operate on a built-in rechargeable lithium-ion
battery. Although the battery was fully charged when it left our factory, like all batteries
it can experience some power drain during periods of non-use. For best results we
recommend that you charge the battery for approximately 3 hours before using your
ear buds for the first time.
1. Connect the micro USB plug on the charging cable to the micro USB port on the
x 1
USB Charging Cable
L M S
2. Connect the standard USB plug on the charging cable to any standard USB power
x 2 x 2
x 2
SIZE SIZE SIZE
Silicon Ear Cushions
3. The Power/Charging/Pairing indicator will glow RED while the ear buds are
OPERATING INSTRUCTIONS
1. Switching Your Ear Buds On and Off
only the left ear bud in your left ear. This will allow you to hold the control dongle in
your right hand so that you can see the control buttons and the LED indicator and still
hear the confirmation tones in your left ear. Once the ear buds have turned on and
paired with your Bluetooth device you can then place the right ear bud in your right ear.
2. Power On / Auto-Linking Mode
PRESS and HOLD the Multi-Function Button (MFB) on the control dongle for
approximately 2 seconds until you hear the three ascending beep tones that indicate
the power is 'On'. The blue LED begins flashing two times per second indicating that
your ear buds are in the Auto-Linking Mode and trying to re-link to a previously paired
device as long as that device is within the normal pairing range of approximately
33-feet. If your ear buds do not find a previously paired device that is in range and
turned 'on' within 3 minutes they will switch from the Auto-Linking mode to the Power
'Off' mode to extend the battery life.
FCC ID: EMOIB29
iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants
IC: 986B-IB29
this product to be free from defects in workmanship and materials, under normal use and
conditions, for a period of one (1) year from the date of original purchase.
Should this product fail to function in a satisfactory manner, it is best to first return it to the
store where it was originally purchased. Should this fail to resolve the matter and service
still be required by reason of any defect or malfunction during the warranty period, SDI will
repair or, at its discretion, replace this product without charge. This decision is subject to
verification of the defect or malfunction upon delivery of this product to the Factory Service
Center authorized by Customer Service.
If service is required, please call Customer Service at 1-800-288-2792 to obtain a Return
Authorization Number and shipping instructions.
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which it was
designed. It does not cover (i) products which have been damaged by negligence or willful
actions, misuse or accident, or which have been modified or repaired by unauthorized
persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage
to digital media players, CD's or tape cassettes (if applicable); (iv) the cost of shipping this
product to the Factory Service Center and its return to the owner.
This warranty is valid only in the United States of America and does not extend to owners
of the product other than to the original purchaser. In no event will SDI or any of its affiliates,
contractors, resellers, their officers, directors, shareholders, members or agents be liable
to you or any third party for any consequential or incidental damages, any lost profits, actual,
exemplary or punitive damages. (Some states do not allow limitations on implied warranties
or exclusion of consequential damages, so these restrictions may not apply to you.) This
warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
Your acknowledgement and agreement to fully and completely abide by the above mentioned
disclaimer of warranty is contractually binding to you upon your transfer of currency (money
order, cashier's check, or credit card) for purchase of your SDI product.
iB29-010416-A (EN)
3
1 + Button (Volume Up and Skip Forward)
1
Multi-Function Control Button (MFB)
2
– Button (Volume Down and Skip Back)
3
2
Microphone
4
Micro USB Charging Port (Under Water-Resistant Cover)
5 3
ear buds. NOTE: The micro USB plug can only be inserted into the micro USB
charging port one way. To avoid damaging the connection make sure the plug is
properly aligned with the charging port.
port such as found on a notebook computer, or the charging adapter for an iPod,
iPhone, etc.
charging. The indicator will turn BLUE when the battery is fully charged, indicating
that your ear buds are ready for use.
NOTE: The first time you perform this operation you might find it convenient to place
1
Limited One-Year Warranty Information
© 2016 SDI Technologies, Inc. All rights reserved.
Questions? Visit www.ihome.com
or call 1-800-288-2792 Toll Free
4
5
Printed in China
