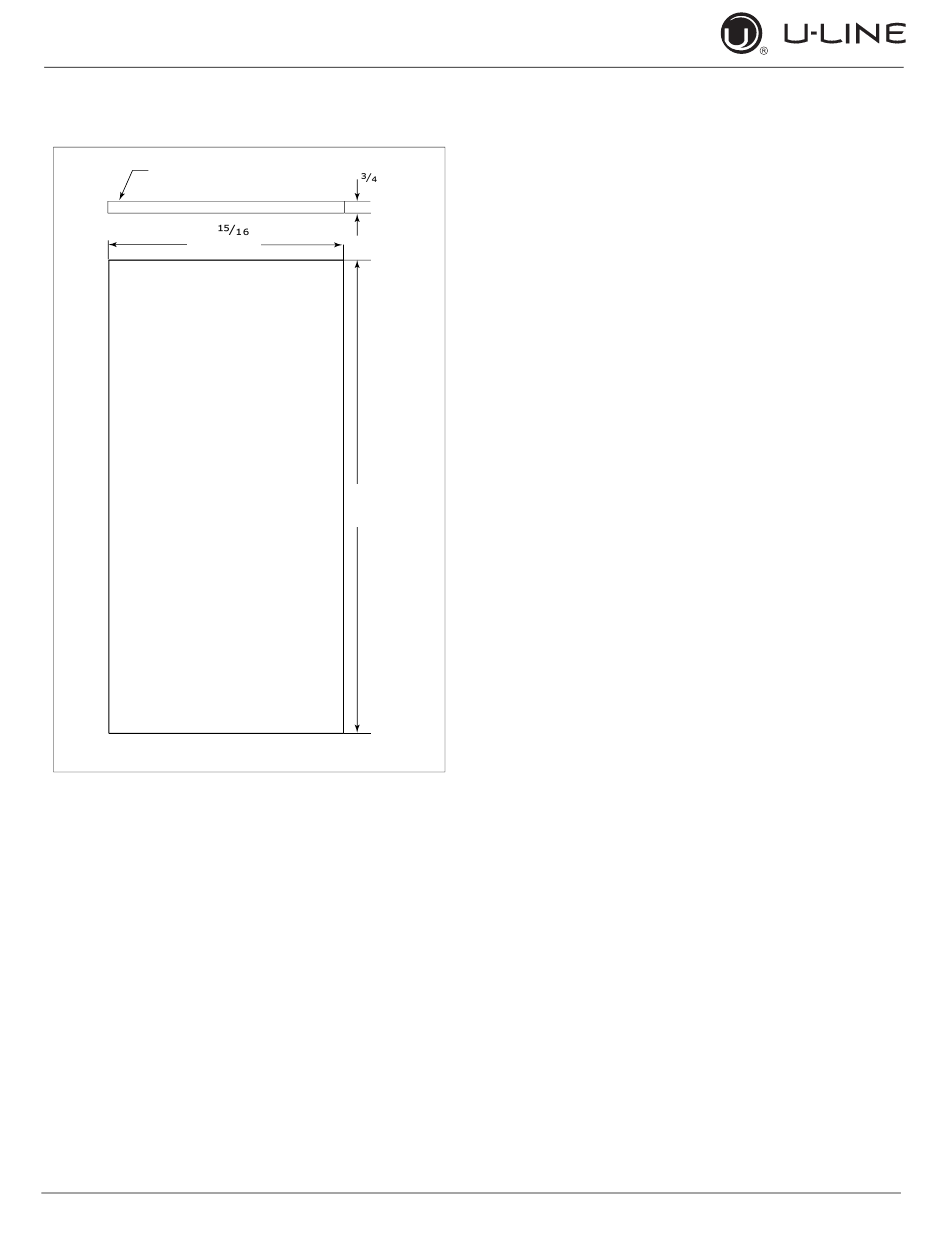

Extended Integrated Panel Dimensions
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE
TO MOUNT OVERLAY PANEL FLAT AND WITHOUT
INTERFERENCE
14-
(379 mm)
Integrated Panel
* A minimum of 1" (25 mm) is required from the
floor to the bottom of the extended integrated
panel/frame for proper ventilation.
Integrated Panel Dimensions
"
(20 mm)
"
30"
(762 mm)
Integrated Grille
If you would like to cover the grille with an integrated
panel, purchase U-Line's adjustable grille accessories.
15" - Sales Accessory: ULAGRILLE15
Complete instructions, including dimensions of the
integrated grille panel, are included with the accessory.
